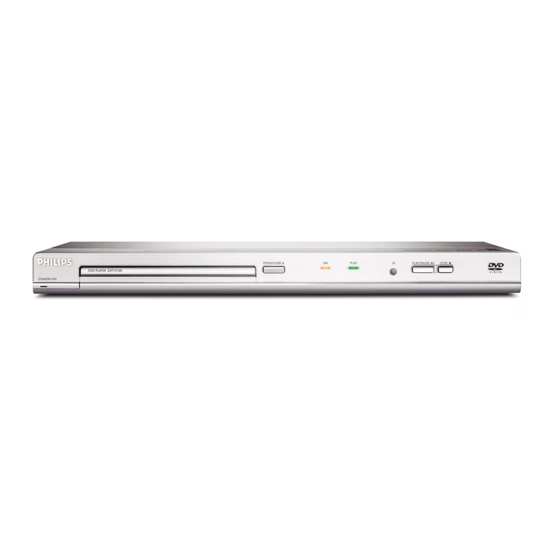

Philips DVP3110 Service Manual
  1. Manuals
  2. Brands
  3. Philips Manuals
  4. DVD Player
  5. DVP3110
  6. Service manual

Philips DVP3110 Service Manual

Hide thumbs Also See for DVP3110:

Advertisement

Quick Links

Download this manual
DVD Player
Service
Service Manual

TABLE OF CONTENTS

. Technical Specifications.............................................................1-2
. Safety Instruction, Warning & Notes............................................1-3
. Mechanical and Dismantling Instructions.........................................2-1
. Region Code, Software Version& Upgrades...................................
. Trouble Shooting Chart...........................................................
. Wiring Diagram.......................................................................5-1
. Electrical Diagrams and Print-layouts...........................................
. Set Mechanical Exploded View & Electrical Part list........................7-1
. Electrical Parts List...................................................................8-1
. Revision List...........................................................................9-1
©Copyright 2007 Philips Consumer Electronics B.V. Eindhoven, The Netherlands
All rights reserved. No part of this publication may be reproduced, stored in aretrieval system or
transmitted, in any form or by any means, electronic, mechanical, photocopying, or otherwise
without the prior permission of Philips.
Published by TCL-ET0729 Service Audio
Version 1.1
All manuals and user guides at all-guides.com
Printed in The Netherlands
Subject to modification
DVP3110(K)
DVP3110/93
DVP3110K/98/96/75/56/11
Chapter
3-1
.
4-1
.
6-1
.
CLASS 1
LASER PRODUCT
GB
3139 785 32631
PHILIPS

Advertisement

loading
Need help?

Need help?

Do you have a question about the DVP3110 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Philips DVP3110

Summary of Contents for Philips DVP3110

  • Page 1: Table Of Contents

    . Electrical Parts List…………………………………………..…..…..8-1 . Revision List………………………………………………….…..…..9-1 CLASS 1 ©Copyright 2007 Philips Consumer Electronics B.V. Eindhoven, The Netherlands All rights reserved. No part of this publication may be reproduced, stored in aretrieval system or LASER PRODUCT transmitted, in any form or by any means, electronic, mechanical, photocopying, or otherwise without the prior permission of Philips.

  • Page 2: Technical Specifications

    All manuals and user guides at all-guides.com Technical Specifications Audio performance TV standard (PAL/50Hz) (NTSC/60Hz) DA converter 24bits, 192KHz Number of lines fs 96kHz 4Hz----44kHz Playback Multi standard (PAL/NTSC) fs 48kHz 4Hz----22kHz SVCD fs 48kHz 4Hz----22kHz fs 44.1kHz 4Hz----20kHz Video performance CD/ VCD fs 44.1kHz 4Hz----20kHz...

  • Page 3: Safety Instruction, Warning & Notes

    All manuals and user guides at all-guides.com Safety instruction, Warning & Notes Safety instruction 1. General safety 2.Laser safety Safety regulations require that during a repair: This unit employs a laser. Only qualified service personnel . Connect the unit to the mains via an isolation transformer. may remove the cover, or attempt to service this device .
  • Page 4 All manuals and user guides at all-guides.com Warning 1.General 2. Laser . The use of optical instruments with this product, will . All ICs and many other semiconductors are susceptible to electrostatic discharges (ESD). Careless handing during increase eye hazard. repair can reduce life drastically.
  • Page 5 - lead free BGA-ICs will be delivered in so-called respected by the workshop during a repair: ‘dry-packaging’ (sealed pack including a silica gel Use only lead-free solder alloy Philips SAC305 with pack) to protect the IC against moisture. After order code 0622 149 00106. If lead-free solder-paste is...

  • Page 6: Mechanical And Dismantling Instructions

    All manuals and user guides at all-guides.com Mechanical and Dismantling Instructions Dismantling Instruction The following guideline is a general instruction for how to dismantle the player, Detailed operation done according the set unit. Step1: Remove 5 screws around the Top Cover, then remove the Top Cover (Figure 1). Figure 1 Step2: If it is necessary to dismantle Loader or Front Panel, It should be remove the Front door assembly first.
  • Page 7 All manuals and user guides at all-guides.com Mechanical and Dismantling Instructions Dismantling Instruction Step3: If the tray can’t open in normal way, you can make it through the instruction as below (Figure 3). Note: Make sure to operate gently otherwise the guider would be damaged. Push the guider until the tray out.
  • Page 8 All manuals and user guides at all-guides.com Mechanical and Dismantling Instructions Dismantling Instruction Step5: Dismantling Front Panel, disconnect the 1 connector, then release the snaps on the both sides of Front Panel and bottom cabinet , then gently pull the Panel out from the set. (Figure 5 & 6 & 7) CON 4 Figure 5 Snap 1...
  • Page 9 All manuals and user guides at all-guides.com Mechanical and Dismantling Instructions Dismantling Instruction Step6: Dismantling Main Board, first disconnect the 1 connector, then remove 4 screws to remove the Main board. (Figure 8) CON 6 Figure 8 Step7: Remove the 2 screws on Power Board to dismantle the Power Board. (Figure 9) Figure 9...
  • Page 10 All manuals and user guides at all-guides.com Software upgrade Preparation to upgrade software B. Read out the software versions to confirm upgrading Start the CD Burning software and create a new CD Power on the set and press <Setup> button on the remote control.

  • Page 11: Trouble Shooting Chart

    All manuals and user guides at all-guides.com Trouble shooting chart Spindle motor does not move Motor no move Check the FFC connection Correct connection between 24P and the loader. Check whether “RFA5V” Check the RFA5V power (+5V) voltage is normal. supply Check whether laser voltage Check/Replace Q7 Q8.
  • Page 12 All manuals and user guides at all-guides.com T rouble shooting chart The power can not be on or off The power can’t be on or off Check the power supply Repair the power board on the power board is normal. Check if the CON301 on the front board to Check/Correct connection...
  • Page 13 All manuals and user guides at all-guides.com Trouble shooting chart All output voltages on the power board is 0V or deviated. All output voltages on the power board is 0V or deviated Check whether Replace F1 F1 is blown Replace C4 if D1, D2, D3, D4 Check whether are normal.
  • Page 14 All manuals and user guides at all-guides.com Trouble shooting chart Disc cannot be read . Disc cannot be read. Check Check the loaded circuit connection between 24P and the loader. 1. Check voltage on pin 44 of U1 varies between 0 and 3.3V: Check whether there is laser 3.3V for VCD voltage (1.9V for VCD and...
  • Page 15 All manuals and user guides at all-guides.com Trouble shooting chart Only DVD disc or only disc except DVD can be played Only DVD disc, or only disc except DVD can be Played. Check Check the loaded circuit connection between 24pin and the loader. Check laser voltage (2V) Check the solder status on U1 and output on Collector of Q7, if...
  • Page 16 All manuals and user guides at all-guides.com Trouble shooting chart Distorted audio and loud noise Distorted audio and loud noise Check he power supply voltages +12V and -12V to Replace R9 and R14 the operation amplifying L7 andR19 are normal Check whether muting transistors Q12,...
  • Page 17 All manuals and user guides at all-guides.com Trouble shooting chart Abnormal color of video picture Abnormal color of video picture Check whether Check Y1, R19, C32 and C33 27MHz output signal is normal. Check whether the 3.3V Check other of power supply electric and 2.5V power supply circuit voltages on the decoder...
  • Page 18 All manuals and user guides at all-guides.com Trouble shooting chart Remote reception is insensitive or fails. Remote reception is insensitive or fails. Check if the remote Check battery control works properly. Check power supply voltage to the Check R66 C68 remote censor is normal Use an oscilloscope to check if there is output waveform from...
  • Page 19 All manuals and user guides at all-guides.com Trouble shooting chart No video picture, no sound. No video picture, no sound. Check whether all the voltages Check the loaded circuit from the power board to the decoder board are normal. CVBS(R85 point) waveform Check reset circuit...

  • Page 20: Wiring Diagram

    All manuals and user guides at all-guides.com DVP3110(K)/XX WIRING DIAGRAM AC IN L&R COAX CON1 CVBS AUDIO AMP&LPF GND_LD VIDEO DVD_LD LPF&DRIVE NC(C-GND) OPU_HFM(-RFA5V) MD(C-GND) CD-LD VR_DVD VR_CD POWER NC(C-GND) RF_E +12V SUPPLY VCC(-RFA5V) RF_F -12V RF_B CON2 RF_A CD/DVD...
  • Page 21 All manuals and user guides at all-guides.com Front Board Electric Diagram CE200 DV33 CE201 CE300 CON301 R311 R312 R313 CON302 DV33 C200 C201 R300 C202 R305 R306 C203 C204 K304 C205 K302 STOP PLAY C206 C207 LED2 LED3 C208 R301 PLAY C209 R309...
  • Page 22 All manuals and user guides at all-guides.com Front Board Print-Layout (Bottom Side) Switch Board Print-Layout (Bottom Side)
  • Page 23 All manuals and user guides at all-guides.com Power Board Electric Diagram 1N4007 1N4007 T2AL/250ac 750uH 10K471 CON1 AC INPUT 22uF/250V 22uF/250V 1N4007 1N4007 NTC 10 2.2uH FR102(NU) 10uF/50V(NU) CON1 CON2 CON2 1N4148 56k 1/4W 222/400V 300K/1/4W 300K/1/4W 47uF/25V -22V -12V +12V FSDH321 1N4007...
  • Page 24 All manuals and user guides at all-guides.com Power Board Print-Layout (Bottom Side)
  • Page 25 All manuals and user guides at all-guides.com Main Board Electric Diagram: INDEX DV33 RFVDD3 500/0805 INDEX & POWER RF, SERVO & MPEG MT1389D 0.1uF 1000P PLLVDD3 MEMORY /VIDEO OUT AUDIO OUT RFGND 0.1uF NAME TYPE DEVICE Digital 5V SUPPLY RFGND DV33 DV33 Digital 3.3V...
  • Page 26 500R TR_B1 BIAS TRB1 STBY FOSO model R64,R65 L14,L15 MUTE VINFC DV33 RFV18 0.1uF VSDA# VSDA AM5888 DV33 100/0603 DVP3110 500FB 100P 1--13pin 100R + CE18 VSTB# 100/0603 VSTB TR_B1 TR_B2 VSCK# 100/0603 VSCK 0.1uF 220uF/16v POWER_K LED- POWER_K 100/0603...
  • Page 27 All manuals and user guides at all-guides.com Main Board Electric Diagram: SDRAM & FLASH&VIDEO OUT DQ[0..15] [ 2 ] DQ[0..15] [ 2 ] MA[0..11] MA[0..11] [ 2 ] BA[0..1] BA[0..1] [ 2 ] DQM[0..1] DQM[0..1] [ 2 ] DCLK DCLK 1.8UH/0R 1N4148 [ 2 ]...
  • Page 28 All manuals and user guides at all-guides.com Main Board Electric Diagram: AUDIO OUT C100 180p -12VA +12VA R160 CE22 9012 CE23 3.3K 1N4148 10uF/16V 10uF/16v CE22 POWER ON MUTE C101 NJM4558 OPA A_MUTE CE23 C102 1N4148 2700P +12VA 9014 CE24 SOT-23 100K 1000P...
  • Page 29 All manuals and user guides at all-guides.com Main Board Print-Layout (Top Side)
  • Page 30 All manuals and user guides at all-guides.com 6-10 6-10 Main Board Print-Layout (Bottom Side)
  • Page 31 All manuals and user guides at all-guides.com DVP3110/XX Mechanical Exploded View Remark: Ass'y1 is the assembled component for location 1,2,3,4,6,26 Ass'y2 is the assembled component for location 5,7 It's a general Mechanical Exploded View for DVP3110/XX, Detailed information please refer to Model set.
  • Page 32 All manuals and user guides at all-guides.com ENCASING & ACCESSORIES PARTS LIST SCREW LIST 12NC No. Part Name Q'ty 12NC No. Part Name Q'ty 996510001772 Front Panel ass'y S/T Screw B2.6X8 BF Ass'y1 996510001771 Front Panel door Triangle M/C Screw 3*6 Ass'y2 996500034178 Ass'y-Switch Board...
  • Page 33 All manuals and user guides at all-guides.com DVP3110K/XX Mechanical Exploded View Remark: Ass'y1 is the assembled component for location 2,3,4,5,7,28 Ass'y2 is the assembled component for location 6,8 It's a general Mechanical Exploded View for DVP3110K/XX, Detailed information please refer to Model set.
  • Page 34 996510002222 Rear Cabinet for DVP3110K/56/75 996510001786 Rear Cabinet for DVP3110K/98 996510005909 Rear Cabinet for DVP3110K/11 996510001190 Ass'y-Power Board for DVP3110K/98 996510001165 Ass'y-Power Board for DVP3110/56/75 996510005904 Ass'y-Power Board for DVP3110K/11 996510001776 Ass'y-Main Board 996510001774 Bottom Cabinet Earthing Plate 996510001777 Ass'y-Front Board...

  • Page 35: Revision List

    All manuals and user guides at all-guides.com REVISION LIST Version 1.0 * Initial release Version 1.1 *Include DVP3110K/11 Remark: This Service manual only for Philips Service repairment, Please Don't transmitte or forward it to others.
