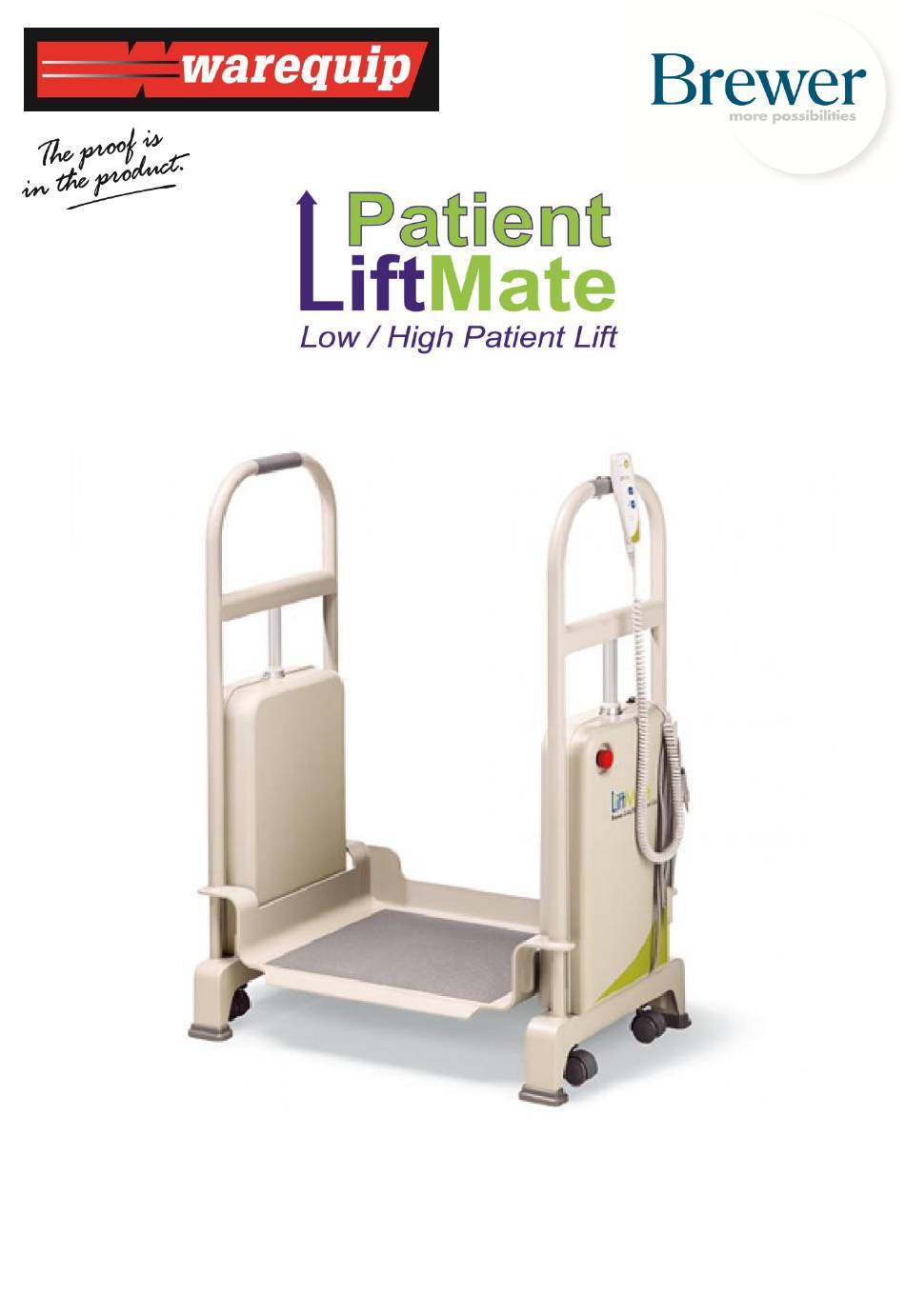

INSTALLATION & OPERATION MANUAL
Component Identification......................................2
Important Information...........................................3
Specifications.........................................................4
Safety Information.................................................4
Electrical Requirements.........................................5
Installation.............................................................6
Operation...............................................................8
Maintenance........................................................ 11
Troubleshooting................................................... 11
Service Parts.........................................................14
Limited Warranty.................................................15
Advertisement
Table of Contents
Related Manuals for warequip Brewer Patient LiftMate
Summary of Contents for warequip Brewer Patient LiftMate
-
Page 1: Table Of Contents
INSTALLATION & OPERATION MANUAL Component Identification........2 Installation.............6 Important Information...........3 Operation...............8 Specifications............4 Maintenance............11 Safety Information..........4 Troubleshooting........... 11 Electrical Requirements.........5 Service Parts............14 Limited Warranty..........15... -
Page 2: Component Identification
COMPONENT IDENTIFICATION... -
Page 3: Important Information
IMPORTANT INFORMATION General The Brewer LiftMate Patient Lift is designed to safely assist patients onto and off of exam tables, beds and other medical devices without the need for manual lifting. The LiftMate is to be operated by qualified medical professionals trained in its use. Read and understand all operating instructions, safety information, and maintenance requirements contained in this manual prior to operating the LiftMate. -
Page 4: Specifications
SPECIFICATIONS Weight of LiftMate..........105 lbs. Power Cord......Extends 10 ft. from unit. Load Rating (maximum): 18 AWG / 3 conductor, SJT grey jacketed with hospital - Platform.............. 500 lbs. plug - Platform Range......... 1.0 to 10.0 in. Type of protection against electrical shock LiftMate Dimensions: Class.......... -
Page 5: Electrical Requirements
ELECTRICAL REQUIREMENTS WARNING CAUTION ● Do not perform any procedures while Do not use any power supply other than that listed on the rating label. Failure to do so may result in serious injury patient is on the LiftMate. ● Use 115 VAC, 60 Hz as noted on the rating and/or equipment damage. -
Page 6: Installation
CAUTION Please observe the following cautions. Patient: ● Never engage casters while patient is on the LiftMate. ● Always use the top centre of the handrails for holding onto the LiftMate while getting on/off, or being raised or lowered. ● Patients must use caution when stepping up to get onto the platform to avoid tripping. ●... - Page 7 INSTALLATION (Continued) Getting the Most from the LiftMate Battery LiftMate Battery Disposal NOTE: The LiftMate has protective circuitry to prevent the charge from draining to excessively low levels. CAUTION Keeping the battery charged will ensure optimal ●Do not disassemble the LiftMate battery. service, while extending battery life to its fullest.
-
Page 8: Operation
OPERATION General DANGER NOTE: For optimum LiftMate performance, allow the unit to reach room temperature before operating. Do not use the LiftMate in an explosive or NOTE: The LiftMate is not designed for continuous oxygenrich atmosphere. To do so will result in operation. - Page 9 OPERATION (Continued) Moving the LiftMate The LiftMate moves about easily on four extendable/retractable casters. To extend casters depress the “PUSH AND HOLD TO MOVE” button on the hand pendant. See Figure 4. Casters will extend allowing the LiftMate to be moved to the desired location.
- Page 10 OPERATION (Continued) Patient Handling with the LiftMate (Lowering the Patient) 1. Roll the back of the LiftMate against foot end or side of exam table, depending on position of patient on the table. 2. Ensure patient’s feet are clear of the platform and any portion of the exam table as it is raised.
-
Page 11: Maintenance
MAINTENANCE Preventative Maintenance Cleaning CAUTION CAUTION Failure to perform periodic inspections of the The shroud material is resistant to most medicinal type stains, but may be damaged by solvents and LiftMate could result in personal injury or dyes. Remove any spilled fluids from the shrouds, equipment damage. - Page 12 TROUBLESHOOTING (Continued) Platform Platform will not raise or lower • Battery low. Pressing any function on Hand Pendant will cause “Low Battery” light on Hand Pendant to illuminate and beeping sound to occur. Charge battery. Note: plugging LiftMate into receptacle will resume all functions in a low battery condition.
- Page 13 TROUBLESHOOTING (Continued) LiftMate Operates Only When Plugged In A. If the battery’s ability to hold a charge has decreased over time, the battery requires replacement. B. If battery has suddenly failed without warning the battery may have become disconnected. Remove the left outer cover to check battery connection at the plug in jack.
-
Page 14: Service Parts
SERVICE PARTS All kits include applicable hardware and step-by-step instructions. KIT NAME ORDER NO DESCRIPTION Rubber Feet 2102273 Set of (4) replacement feet for legs. Casters 2102275 Set of (4) replacement casters . Short Caster Actuator 2102277 One short caster actuator for right rear or left front casters. Long Caster Actuator 2102279 One long caster actuator for left rear or right front casters. -
Page 15: Limited Warranty
Contact Information 1800 337 711 (03) 9314 6300 www.warequip.com.au Sales Enquiries sales@warequip.com.au Service and Spare Parts service@warequip.com.au Customer Service customerservice@warequip.com.au...
