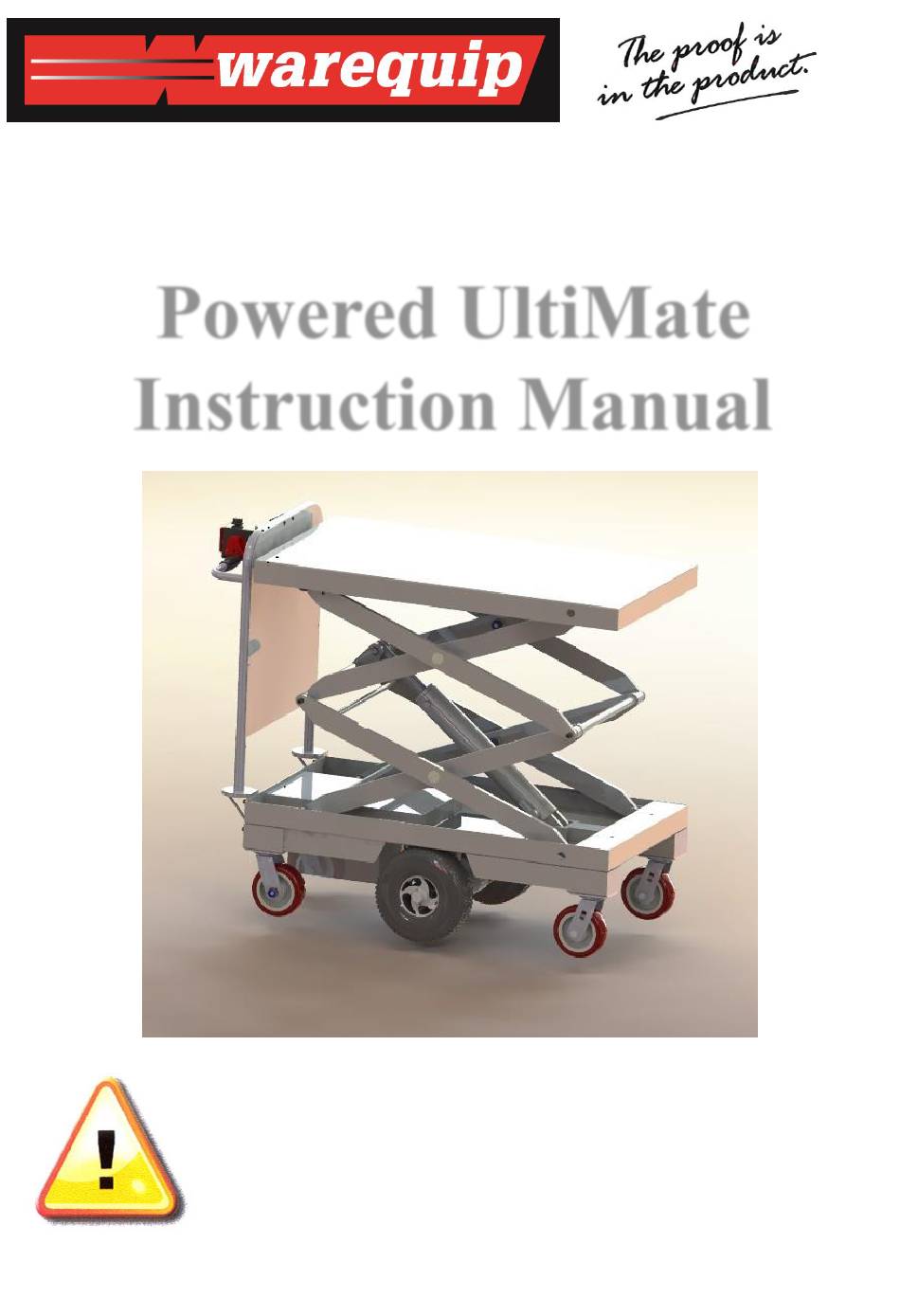

- Page 1 1 August 2013 Powered UltiMate Instruction Manual Please ensure you are familiar with the correct operation of the Powered Ultimate.
-
Page 3: Packing List
It is important to read and follow all the instructions and safety information contained in the Operation Manual prior to use. We hope the Trolley will make your job easier and more fun. The UltiMate can boost the productivity in your organisation and reduce injuries caused by repetitive pushing or pulling a manual platform cart with heavy load. -
Page 4: Emergency Stop
3.8 Operating Lift Table: Up and down buttons are located on the top of the control handle. To raise the platform push and hold “UP” button until it reaches the required height (max height 1000mm). To lower the platform push and hold the down button. Warning: Before you operate, practice in a open area for at least one hour to get familiar with the Trolley and gain the operation skills. - Page 5 WARNINGS Electromagnetic inference (EMI) from sources such as radio and TV stations, amateur radio (HAM) transmitters, two-way radios, and cellular phones can effect Trolley. Following the warnings list below should reduce the chance of unintended brake release or powered movement, which could result in serious injury. 1) Do not operate hand-held transceivers (transmitters-receivers), such as citizens band (CB) radios, or turn ON personal communication devices, such as cellular phones, while the Trolley is turned ON.
-
Page 6: Battery Charging
5. BATTERY CHARGING To ensure the best performance and maximum battery life, we recommend frequent battery charging. Your Trolley comes with an on-board battery charger for you ease and convenience. The console battery display makes charging simple and easy. Follow these steps for battery charging. -
Page 7: Throttle Adjustment
DAILY Test brake effectiveness before you drive Recharge batteries fully every night WEEKLY Check tire pressure, pressure should be 40-50 psi Check and tighten the throttle screw Ensure there are no hydraulic leaks MONTHLY Check battery condition. Clean battery terminals if necessary Check all electrical wire connectors to eliminate loose connections Tighten all exposed screws and nuts Check wheel bearings by spinning tires and check for free rotation. -
Page 12: Daily Weekly Monthly
P2GO Trolley Preventative Maintenance Schedule Task Daily Weekly Monthly Test brake effectiveness before you drive Recharge batteries fully every night Check tyre pressure - Correct pressure 40 – 50 PSI Check and tighten the throttle screw Check battery condition and clean battery terminals If necessary... - Page 13 P2GO Trolleys Spare Parts CM- Cagemate / LM- Liftmate / TM- Turnmate / MC- Maids Cart Part No. Description P2GOT001 Accelerator/Throttle Module - CM, LM, TM, MC P2GOT002 Red Speed Control Push Lever (Set of 2)- CM, LM, TM, MC P2GOT003 Control Box with Dial* - CM, TM, MC P2GOT004...
- Page 14 POWERED ULTIMATE 400kg 400kg...
- Page 15 POWERED ULTIMATE...
