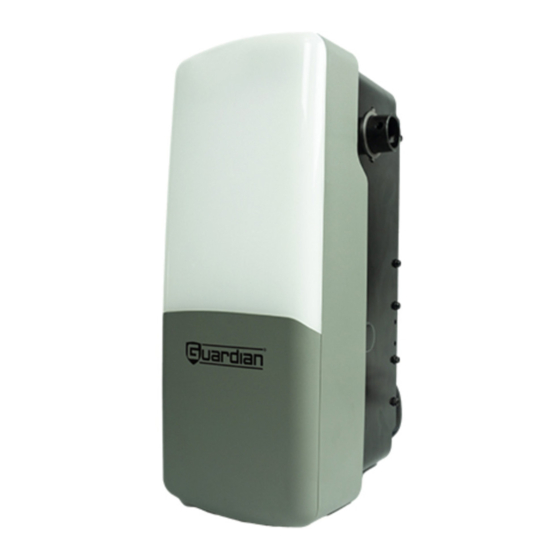

Guardian 928 Owner's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
WARNING:
To reduce the risk of injury to persons
- FOR RESIDENTIAL USE ONLY
WARNING:
- INSTALL ON SECTIONAL DOORS WITH TORSION SHAFT AND SPRINGS ONLY
To reduce the risk of injury to persons - Use this operator only with Residential Sectional Garage doors.
Owner's Manual
Owner's Manual
Please read and understand this manual and safety instructions carefully before installation.
• Please read and understand this manual and safety instructions carefully before installation.
The Opener WILL NOT CLOSE until the Photo Eye Safety System is properly installed and aligned.
• The Opener WILL NOT CLOSE until the Photo Eye Safety System and Cable Tension Monitor is properly installed and aligned.
• REGULARLY CHECK and TEST the Opener according to the safety label to ENSURE SAFE OPERATION.
REGULARLY CHECK and TEST the Opener according to the safety label to ENSURE SAFE OPERATION.
• Retain this manual for future reference.
Retain this manual for future reference.
• This product should only be installed by a trained garage door technician.
• Adjustments to door springs or track may be required.
• This product should not be used on garage doors with extension springs, outside pickup drums or low-headroom tracks.
Serial # __ __ __ __ __ __ __
Serial # __ __ __ __ __ __ __
Located on the label on top of your opener.
The illustrations used in this instruction manual may differ from the actual product you have purchased.
Located on label on the side of your opener.
The illustrations used in this instruction manual may differ from the actual product you have purchased.
Date Installed __ __ /__ __ /__ __ __ __
Date Installed __ __ /__ __ /__ __ __ __

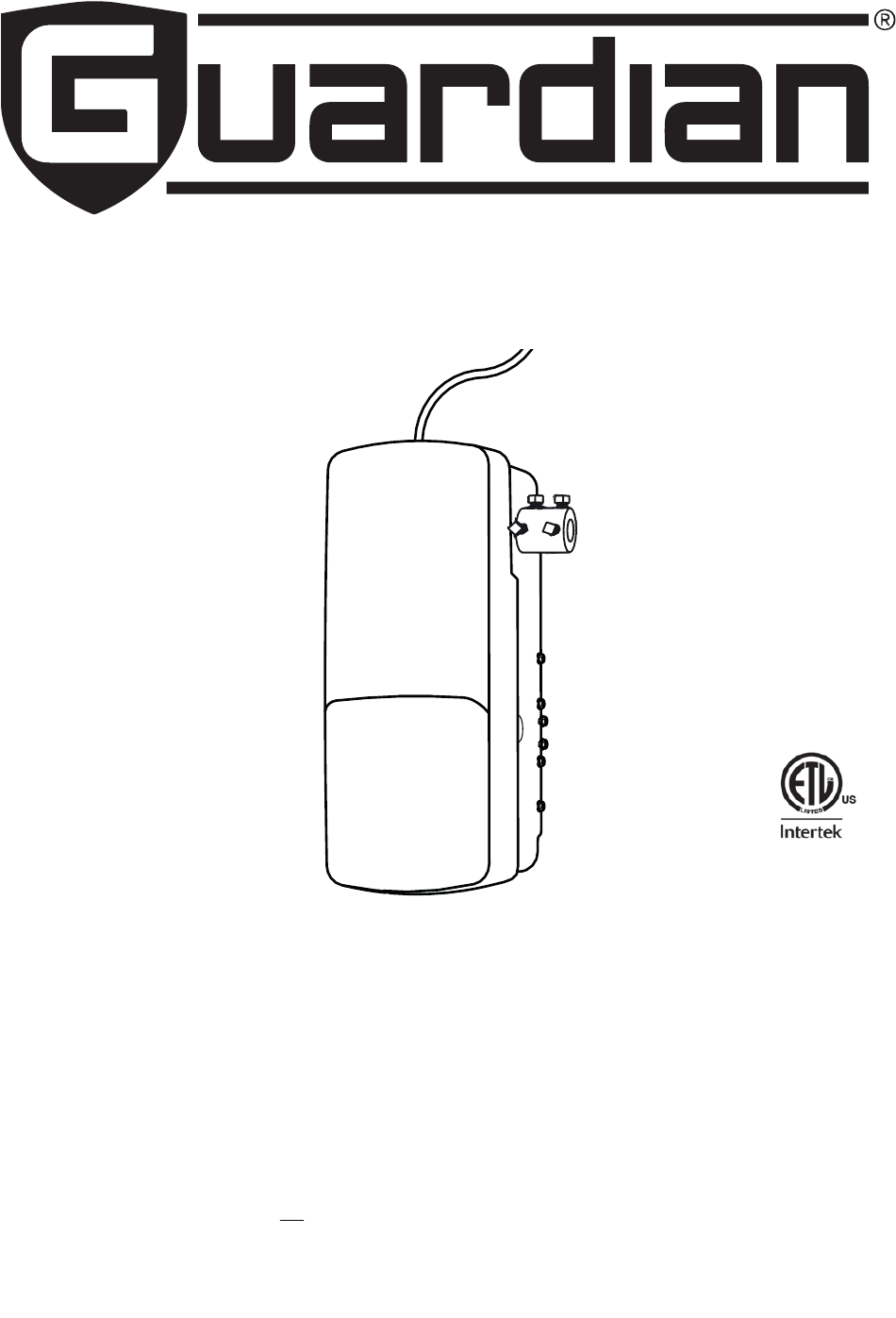

MODEL 928

Advertisement

Table of Contents
loading

Summary of Contents for Guardian 928

  • Page 1 MODEL 928 WARNING: To reduce the risk of injury to persons - FOR RESIDENTIAL USE ONLY WARNING: - INSTALL ON SECTIONAL DOORS WITH TORSION SHAFT AND SPRINGS ONLY To reduce the risk of injury to persons - Use this operator only with Residential Sectional Garage doors.

  • Page 2: Table Of Contents

    Table of Contents Inventory Symbols and Icons Inventory Tools Needed Prepare Your Garage Door Safety Instructions Assembly Assembly Installation Installing Door Lock Installing Cable Tension Monitor Wiring Connecting Photo Eye Safety System Connecting Deluxe Door Control Console Motion Activated Security Lighting Connecting Power Adjustment Aligning the Photo Eye Safety System...

  • Page 3: Inventory

    Inventory 1. Residential Jackshaft 2. Photo Eyes 3. Remote Control 4. Deluxe Door Control Console 5. Collar 6. Manual Release Cord 7. Mounting Bracket 8. Cable Tension Monitor 9. Door Lock 10. Manual 11. Template GU-LOCK DRILL 5/16” DRILL 3/4” DRILL 5/16”...

  • Page 4: Prepare Your Garage Door

    Prepare Your Garage Door PREPARE for installation This operator is compatible with the following doors: - Sectional doors up to 14 feet (4.3 m) high. LEARN - Sectional doors up to 18 feet (5.5 m) wide. DOWN FORCE - Doors with 1” diameter torsion bar and torsion springs with 4” to 6” drums. DOWN CABLE MONITOR...

  • Page 5: Safety Instructions

    Safety Instructions WARNING To reduce the risk of severe injury or death: 1. READ AND FOLLOW ALL INSTALLATION INSTRUCTIONS. 2. Install only on a properly balanced garage door. An improperly balanced door has the potential to inflict severe injury. Have a qualified service person make repairs to cables, spring assemblies, and other hardware before installing the opener.

  • Page 6: Assembly

    Assembly WARNING To prevent possible SERIOUS INJURY or DEATH, the collar MUST be properly tightened. The door may NOT reverse correctly or limits may be lost due to collar slip. 1. Attach collar to the drive shaft assembly, align one of the set screws to the drive shaft hole. Notice that the side of the collar with the larger hole must be placed on the drive shaft, seated all the way on drive shaft assembly.
  • Page 7 Assembly WARNING To prevent possible SERIOUS INJURY or DEATH: - Concrete anchors MUST be used if mounting bracket into masonry. - Never try to loosen, move or adjust garage door, springs, cables, pulleys, brackets or their hardware, ALL of which are under EXTREME tension. - ALWAYS call a trained door systems technician if garage door binds, sticks or is out of balance.

  • Page 8: Installing Door Lock

    Installing Door Lock The automatic door lock (GU-LOCK2) prevents manual operation of the door when fully closed. 1. The lock must be mounted on the same side as the opener and within 10 ft (3.05m) max of the operator. Measure 3 in. above the second roller from the bottom.

  • Page 9: Installing Cable Tension Monitor

    Installing Cable Tension Monitor Note: Cable Tension Monitor is shipped for right side installation. If installed on the left side, remove the e-ring at the end of the roller, remove the roller and reassemble on the opposite side. 1. Position cable tension monitor above the door and close to the drum. 2.

  • Page 10: Connecting Photo Eye Safety System

    Connecting Photo Eye Safety System WARNING To prevent possible SERIOUS INJURY or DEATH: - Power MUST NOT be connected BEFORE Photo Eye Safety system is connected and aligned. - The Opener will not operate until the Photo Eye Safety System is properly connected and aligned. - Install the Photo Eyes NO higher than 6”...

  • Page 11: Connecting Deluxe Door Control Console

    Connecting Deluxe Door Control Console WARNING To prevent possible SERIOUS INJURY or DEATH. - Power MUST NOT be connected until instructed. To prevent SERIOUS INJURY or DEATH from using the Deluxe Door Control Console and a closing door: - Install the Deluxe Door Control Console or Push Button within sight of the door at a minimum height of 5 feet (1.5m) above the floor.

  • Page 12: Motion Activated Security Lighting

    Motion Activated Security Lighting Using the Deluxe Door Control ONLY after Installation is completed. Buttons Operation Door - Press and release to open/close the door. Press and hold to activate/deactivate motion sensing security lighting. Turns the courtesy light on/off. Vacation Lock Unlock - Door can be accessed by either Door button or controls.

  • Page 13: Connecting Power

    Connecting Power WARNING To prevent possible FROM ELECTROCUTION or FIRE: - Power MUST be DISCONNECTED BEFORE proceeding with permanent wiring procedures. - Garage Door Opener installation and wiring MUST be in compliance with all local electrical and building codes. Make sure the Opener is ALWAYS grounded. - NEVER use an extension cord, 2-wire adapter or modify the power plug in any way to make it fit the outlet.

  • Page 14: Travel Limit Adjustment Up

    Travel Limit Adjustment UP WARNING To prevent SERIOUS INJURY or DEATH from improper Force Adjustment: - DO NOT adjust force manually to compensate for binding or sticking of the garage door. Call a qualified garage door service technician to make necessary adjustments in case of binding. - DO NOT manually increase the force required for closing the door.

  • Page 15: Travel Limit Adjustment Down

    Travel Limit Adjustment DOWN WARNING To prevent SERIOUS INJURY or DEATH from improper Force Adjustment: - DO NOT adjust force to compensate binding or sticking of the garage door. Call a qualified garage door service person to make necessary adjustments in case of binding. - DO NOT increase force beyond minimum force required for closing the door.

  • Page 16: Auto Force Adjustment

    Auto Force Adjustment WARNING To prevent possible SERIOUS INJURY or DEATH: - DO NOT adjust force to compensate binding or sticking of the garage door. Call a qualified garage door service technician to make necessary adjustments in case of binding. - DO NOT increase force beyond minimum force required for closing the door.

  • Page 17: Final Adjustment And Testing

    Final Adjustments and Testing WARNING To prevent SERIOUS INJURY or DEATH from a closing garage door: - The Safety Reversal Test MUST be conducted ONCE A MONTH. - NO ONE should cross the path of and moving door during operation and/or testing. - After ANY adjustments to the door system, the Safety Reversal Test MUST be performed to ensure the door reverses on contact with a 1-1/2 inch (3.8 cm) thick (2x4 laid flat) object.

  • Page 18: Programming Remote Controls

    Programming Remote Controls WARNING To prevent possible SERIOUS INJURY or DEATH: - Keep remote control and battery out of reach of children. - NEVER permit children to access the Deluxe Door Control Console or Remote Controls. - Operate the door ONLY when it is properly adjusted, and there are no obstructions present. - ALWAYS keep a moving door in sight until completely closed.

  • Page 19: Important Safety Instruccions

    Important Safety Instructions IMPORTANT SAFETY INSTRUCTIONS WARNING To reduce the risk of severe injury or death: 1. READ AND FOLLOW ALL INSTRUCTIONS. 2. Never let children operate or play with door controls. Keep the remote control away from children. 3. Always keep the moving door in sight and away from people and objects until it is completely closed.

  • Page 20: Operating The Opener

    Operating the Opener WARNING To Prevent SERIOUS INJURY or DEATH: - READ AND FOLLOW ALL INSTRUCTIONS AND WARNINGS IN THE OWNER’S MANUAL AND LABELS. - Keep Remote Control and battery out of reach of children. - NEVER permit children to access the Door Control Console, Push Button or Remote Controls. - Operate the door ONLY when it is properly adjusted, and there are no obstructions and is in clear sight.
  • Page 21 Operating the Opener WARNING To prevent SERIOUS INJURY or DEATH: - Use emergency release to disconnect the motor ONLY when the door is CLOSED to prevent unexpected rapid falling in case of a unbalanced / poor-conditioned door. - Use emergency release ONLY when doorway is clear of persons and obstructions. - DO NOT use emergency release to pull the door open or closed.

  • Page 22: Installing Battery Backup

    To reduce the risk of FIRE or INJURY to persons: - Disconnect ALL electric and battery power BEFORE performing ANY service or maintenance. - Use ONLY Guardian part for replacement battery. - DO NOT dispose of battery in fire. Battery may explode. Check with local codes for disposal instructions.

  • Page 23: Maintenance

    Maintenance Schedule Maintenance Once a month Door balance test, refer to page 4. Twice a year Safety reversal test, refer to page 17. Once a year • Limit and Force adjustment may be necessary due to weather conditions. Refer to pages 14-17 for adjustment. Conduct Safety Reversal Test after ANY adjustments.

  • Page 24: Replacement Parts

    Replacement Parts Name/Description Part number B5A928 12V, 5Ah Battery, Enclosure & Hardware Kit GUAT-201 Photo Eyes Remote Control 3-FDCC Deluxe Door Control Console GUDT-354 Collar GUDT-355 Mounting Bracket GU-CTM Cable Tension Monitor GU-LOCK2 Door Lock GUDT-358 Emergency Release Cord with Knob 10 GUDT-360 Hardware Bag 11 GUTD-359...

  • Page 25: Opener Assembly Parts

    Opener Assembly Parts Part number Name/ Description Part number Name/ Description 1 GUDT-366 Control Panel Cover 12 GUDT-381 Button Membrane 2 GUDT-367 Light Lens 13 GUDT-382 Battery Backup Connector/ Terminal 3 GUDT-368 Chassis Cover 14 GUDT-383 LED Driver Board 4 GUDT-369 Chassis 15 GUDT-384 Drive Sprocket...

  • Page 26: Warranty

    Your operator has been installed by a professional installation specialist. If service information is required please contact the installing company or your local Guardian dealer. Look for your Guardian dealer on line, in the yellow pages or call our service number for a dealer near you.
