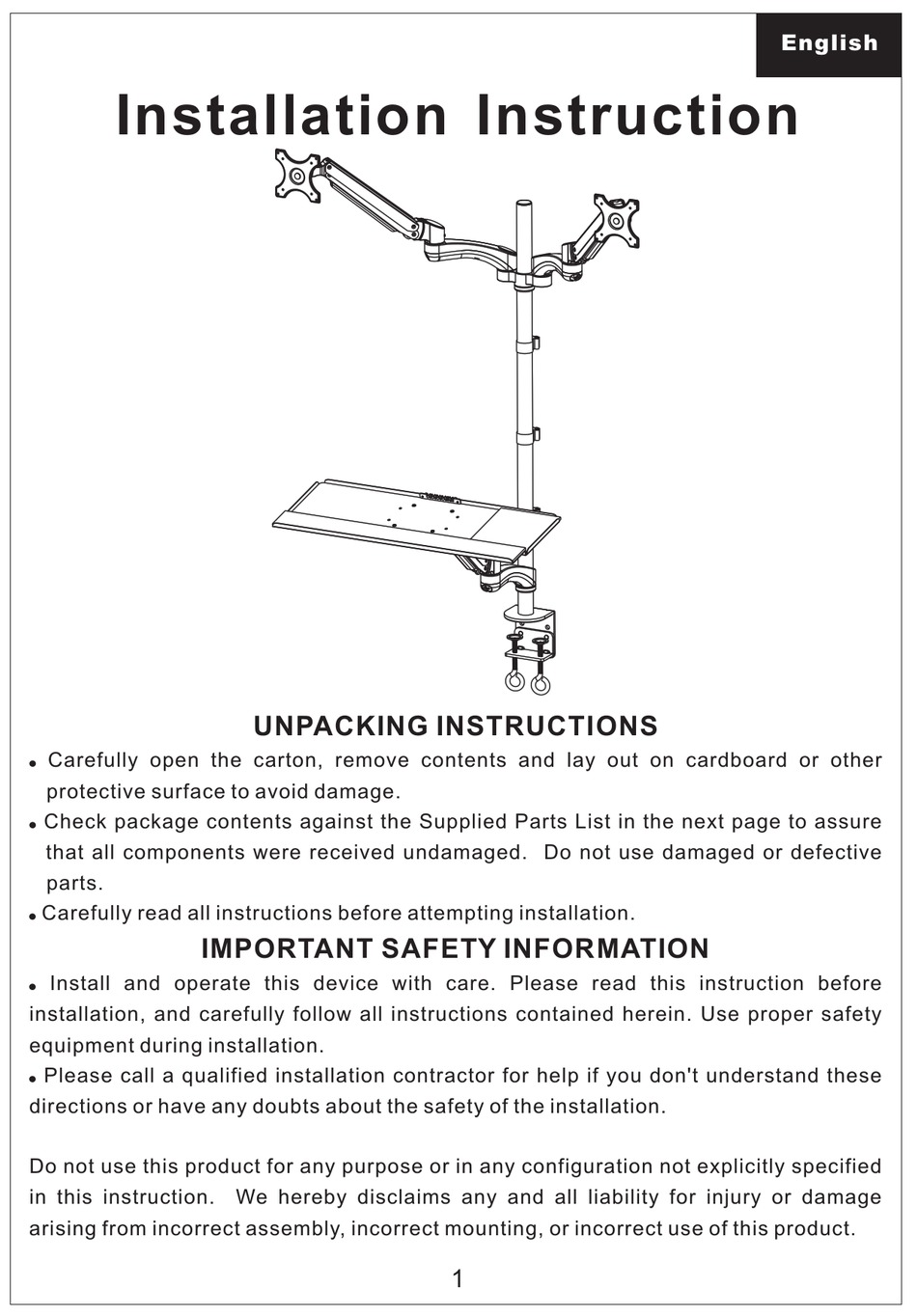

Installation Instruction
Carefully open the carton, remove contents and lay out on cardboard or other
!
protective surface to avoid damage.
Check package contents against the Supplied Parts List in the next page to assure
!
that all components were received undamaged. Do not use damaged or defective
parts.
Carefully read all instructions before attempting installation.
!
IMPORTANT SAFETY INFORMATION
Install and operate this device with care. Please read this instruction before
!
installation, and carefully follow all instructions contained herein. Use proper safety
equipment during installation.
Please call a qualified installation contractor for help if you don't understand these
!
directions or have any doubts about the safety of the installation.
Do not use this product for any purpose or in any configuration not explicitly specified
in this instruction. We hereby disclaims any and all liability for injury or damage
arising from incorrect assembly, incorrect mounting, or incorrect use of this product.
UNPACKING INSTRUCTIONS
1
English
Advertisement
Related Manuals for Display Mount Pro SSW 002
Summary of Contents for Display Mount Pro SSW 002
- Page 1 English Installation Instruction UNPACKING INSTRUCTIONS Carefully open the carton, remove contents and lay out on cardboard or other protective surface to avoid damage. Check package contents against the Supplied Parts List in the next page to assure that all components were received undamaged. Do not use damaged or defective parts.
- Page 2 Supplied Par ts List (1) “C” Clamp Brace-c (1) Grommet Base (1) Pole-a (1) “C” Clamp-b Plate-d (1)M10 Bolt-e (1)Support Plate-f (1)M10 Washer-g (1)Spring Washer-h (3) VESA Plate with (3) M5x14 Bolt-i (2)M10x15 Bolt-j (3)Add-on Arm-l Gas Spring Arm-k (9)M4x6 Bolt-n (3)Wire Cover-m (5)M6x12 Bolt-p (5)Axis Cover-o...
- Page 3 Install the Pole to the Desktop Step 1 Option A: Desk Clamp Install 1. Install the “C”-Clamp Brace(c) to the Pole (a) using 3pcs M5x14 Bolts(i), see Figure 1. 2. Install the “C”-Clamp(b) to the pole assembly according to the thickness of the desktop.
- Page 4 Install the Pole to the Desktop Step 1 Option B: Grommet Base Install Self Drilled Grommet Hole Installation 1. Position the Pole(a) on the mounting surface and mark the center hole. Drill a 3/8" (10mm) diameter hole at the marked position through the mounting surface.
- Page 5 Install Arms to the Pole Step 3 Install the Keyboard/Mouse Tray to the Lower Arm Step 4...
- Page 6 Step 5 Mount the Monitor to VESA Plate For Flat Back Monitor For Curved Back Monitor Make Necessary Adjustments and Run Cables Step 6 Fix Tilt Angle...
- Page 7 Adjust the Torque of Gas Spring Step 7 Adjust the torque of gas spring according to the weight of your monitor. If your monitor can not stay in the lower position, turn the grub screw clockwise(-). If your monitor can not stay in the higher position, turn the grub screw counterclockwise(+).
