Display Mount Pro MWS-001 Assembly Instructions Manual

Mobile workstation

Thanks for choosing our product. This stand ideally works as mobile podium, lectern and laptop workstation. The height of

stand can be easily adjusted. The integrated wheels provide ease of movement.

Safety Warning

: If you do not understand these directions, or have any doubts about the safety of the installation,

please call a qualiﬁed contractor. Check carefully to make sure there are no missing or defective parts. Never use defective

parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explic-

itly speciﬁed in this manual. We can not be liable for damage or injury caused by incorrect mounting, incorrect assembly,

or incorrect use.

Required Tools: Phillips screw driver.

No.

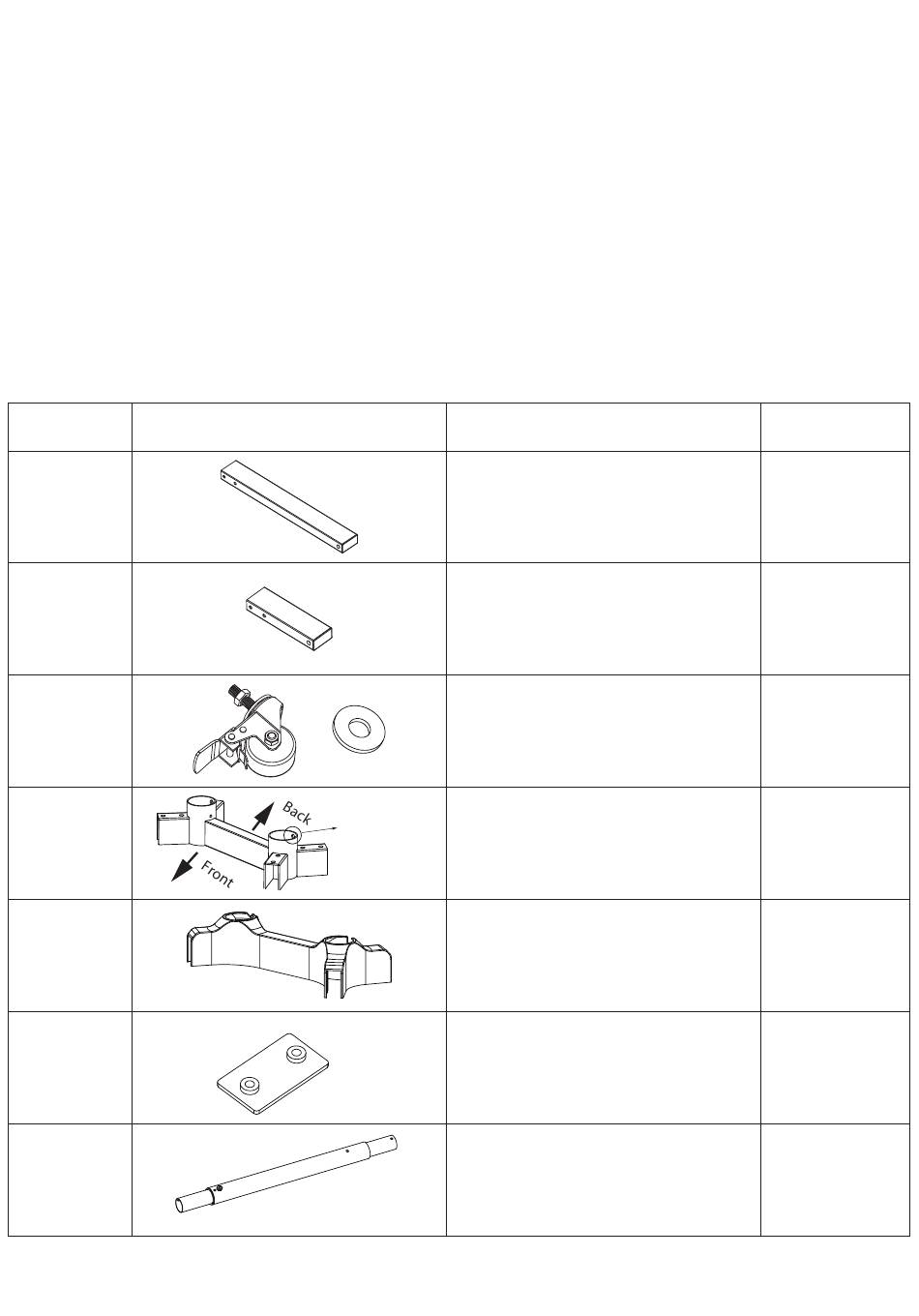

Assembly Instructions for Mobile Workstation


hole for

connecting

the Pole Set(7)

Description

Long Square Tube

Short Square Tube

Wheel & Washer

Tube Connector

Tube Connector Cover

M6 Socket Plate

Pole Set

(One Left and One Right)

Quantity

Table of Contents

Do you have a question about the MWS-001 and is the answer not in the manual?

Page 1 Assembly Instructions for Mobile Workstation Thanks for choosing our product. This stand ideally works as mobile podium, lectern and laptop workstation. The height of stand can be easily adjusted. The integrated wheels provide ease of movement. Safety Warning : If you do not understand these directions, or have any doubts about the safety of the installation, please call a qualiﬁed contractor.
Page 2 Picture Description Quantity Plastic Sleeve Connecting Tube Plastic Knob Shelf Support Shelf Top Plate Right Connecting Plate Left Connecting Plate M6 Nut Lever Soft Pad...
Page 3 Picture Description Quantity M6x60 Allen Head Bolt M6x10 Allen Head Bolt M4X6 Countersink Bolt M5x6 Grub Screw M6 Washer Tool Kit...
Page 4 Use Tool kit(24) Use Tool kit(24) hole for connecting the Pole Set(7) Important: Short square tube(2) should be on the same side as the screw hole for Pole Set (7). Turn this nut to adjust the height of wheel. Use Tool kit(24) Adding plastic sleeves to prevent pulling out the inner poles from outer poles.
Page 5 Use Tool kit(24) Use Tool kit(24) Use Tool kit(24)
Page 6 Adding the Soft Pad(18) optionally. tilt 40°...
