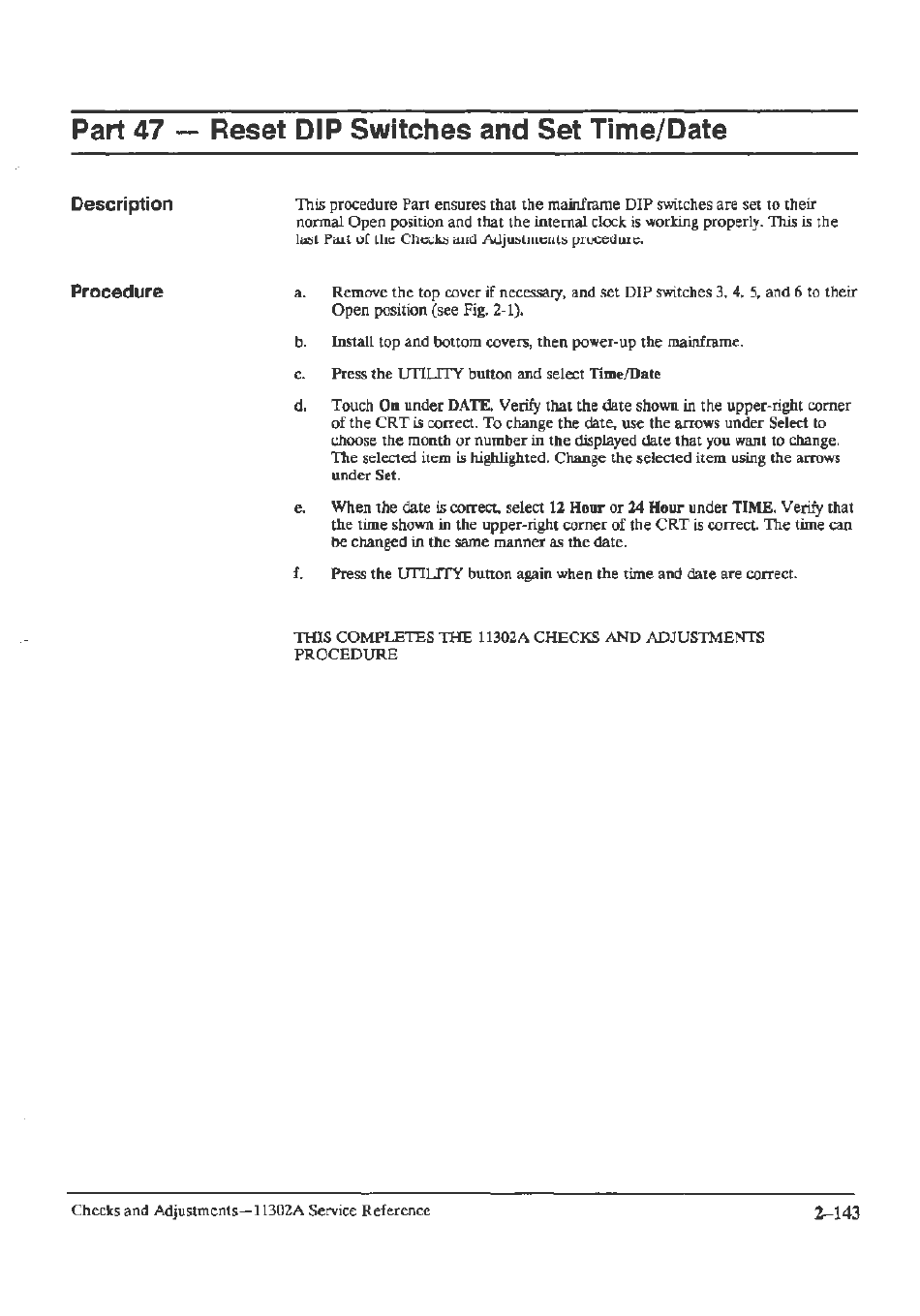

Part 47 - Reset DIP Switches and Set Time/Date
Description
Procedure
This procedure Part ensures that the mainframe DIP switches are set to their
nonnal Open position and that the internal clock is working properly. This
is
the
ht:;l PaLl of the
Che~.:ks
i:tlld Aujusunenls IJrvcedure.
a. Remove the top cover if necessary, and set DIP switches 3, 4, 5, and 6 to their
Open position (see Fig. 2-1).
b. Install top and bottom covers, then power-up the mainframe.
c. Press the UTILITY button and select
Time/Date
d. Touch On under DATE. Verify that the date
shown in
the upper-right comer
of the CRT
is
correct. To change the date, use the arrows under Select to
choose the month or number
in
the displayed date that you want to change.
The selected item is highlighted. Change the selected item using the arrows
under Set.
e. When the date
is
correct, select 12 Hour or 24 Hour under TIME. Verify that
the time shown
in the upper-right
corner of the
CRT is correct.
The time can
be
changed in the same manner as the date.
f . Press the UTILITY button again when the time and date are correct.
THIS COMPLETES THE 11302A CHECKS AND ADJUSTMENTS
PROCEDURE
