- Page 1 DIGITAL Gigabit 1000BaseSX/LX Modular Interface DELHG-UA/DELHL-UA User’s Guide...
- Page 3 DIGITAL Gigabit 1000BaseSX/LX Modular Interface DELHG-UA/DELHL-UA User’s Guide Part Number: 9032636 September 1998 This manual describes how to use the DIGITAL DELHG-UA/DELHL-UA interface modules. Revision/Update Information: This is a new document.
- Page 4 LANVIEW is a registered trademark and WPIM is a trademark of Cabletron Systems, Inc. DIGITAL and the DIGITAL logo are trademarks of Digital Equipment Corporation. All other product names mentioned in this manual may be trademarks or registered trademarks of...
- Page 5 FCC Notice — Class A Computing Device: This equipment generates, uses, and may emit radio frequency energy. The equipment has been type tested and found to comply with the limits for a Class A digital device pursuant to Part 15 of FCC rules, which are designed to provide reasonable protection against such radio frequency interference.
- Page 6 CABLETRON SYSTEMS, INC. PROGRAM LICENSE AGREEMENT IMPORTANT: Before utilizing this product, carefully read this License Agreement. This document is an agreement between you, the end user, and Cabletron Systems, Inc. (“Cabletron”) that sets forth your rights and obligations with respect to the Cabletron software program (the “Program”) contained in this package.
- Page 7 (c) (1) (ii) of the Rights in Technical Data and Computer Software clause at 252.227-7013. Cabletron Systems, Inc., 35 Industrial Way, Rochester, New Hampshire 03867-0505. SAFETY INFORMATION CLASS 1 LASER TRANSCEIVERS THE DELHG-UA/DELHL-UA GIGABIT ETHERNET MODULES USE CLASS 1 LASER TRANSCEIVERS. READ THE FOLLOWING SAFETY INFORMATION BEFORE INSTALLING OR OPERATING THESE ADAPTERS.
- Page 8 DECLARATION OF CONFORMITY Application of Council Directive(s): 89/336/EEC 73/23/EEC Manufacturer’s Name: Cabletron Systems, Inc. Manufacturer’s Address: 35 Industrial Way PO Box 5005 Rochester, NH 03867 European Representative Name: Mr. J. Solari European Representative Address: Cabletron Systems Limited Nexus House, Newbury Business Park London Road, Newbury Berkshire RG13 2PZ, England Conformance to Directive(s)/Product Standards:...
-
Page 9: Table Of Contents
INSTALLATION Unpacking the DELHG-UA or DELHL-UA ........2-1 Installing a DELHG-UA or DELHL-UA ......... 2-2 2.2.1 Installing a DELHG-UA or DELHL-UA in an Interface Module ................2-2 Connecting to the Network ............2-5 2.3.1 DELHG-UA and DELHL-UA Network Connection ..2-6 2.3.2... - Page 10 Contents APPENDIX A SPECIFICATIONS Gigabit Ethernet Specifications ........... A-1 Physical Properties ..............A-2 Environmental Requirements............A-2 Regulatory Compliance............... A-2 viii DELHG-UA/DELHL-UA User’s Guide...
-
Page 11: Preface
Unless noted differently, the information in this guide applies to the DIGITAL Gigabit 1000BaseSX/LX interface modules, which are referred to as either the DELHG-UA or the DELHL-UA module(s). These modules are also referred to as HSIMs, or high-speed interface modules. -
Page 12: Document Conventions
Management, describes the DELHG-UA and DELHL-UA Local Management statistics screens. Chapter A, Specifications, lists the operating specifications and regulatory requirements of the DELHG-UA and DELHL-UA. DOCUMENT CONVENTIONS Throughout this guide, the following symbols are used to call attention to important information. -
Page 13: Correspondence
A description of your network environment (layout, cable type, etc.) • Network load and frame size at the time of trouble (if known) • The device history (i.e., have you returned the device before, is this a recurring problem, etc.) DELHG-UA/DELHL-UA User’s Guide... -
Page 15: Safety
Contains information essential to avoid CAUTION damage to the equipment. Liefert wichtige Informationen, um einen ACHTUNG Geräteschaden zu vermeiden. Informations indispensables permettant ATTENTION d'éviter les dommages matériels. Contiene información esencial para evitar PRECAUCIÓN daños al equipo. DELHG-UA/DELHL-UA User’s Guide xiii... -
Page 16: Safety Requirements
à un personnel qualifié. Sólo el personal cualificado debe instalar o dar AVISO mantenimiento a esta unidad. To install the DELHG-UA or DELHL-UA in a standalone hub the device MUST be powered down. WARNING Ensure that you remove the power cord and ONLY the screws required to remove the chassis cover. - Page 17 Asegúrese de que la cubierta del chasis esté AVISO en su sitio antes de volver a conectar el cable de alimentación. DELHG-UA and DELHL-UA use Class 1 lasers. Do not use optical instruments to view the laser output. The use of optical instruments WARNING to view laser output increases eye hazard.
- Page 18 Safety DELHG-UA et DELHL-UA utilisent des lasers de classe 1. N'utilisez pas d'instruments optiques pour visualiser la sortie laser, car ces DANGER instruments augmentent les risques oculaires. Pour visualiser le port optique, débrancher l'adaptateur secteur. DELHG-UA y DELHL-UA utilizan láser de clase 1.
- Page 19 Safety Requirements When installing the DELHG-UA or DELHL-UA, ensure that the HSIM pins on the module or device align with the DELHG-UA or DELHL-UA CAUTION connector to prevent bending the pins. This can damage the DELHG-UA and DELHL-UA and the modules.
-
Page 21: Chapter 1 Introduction

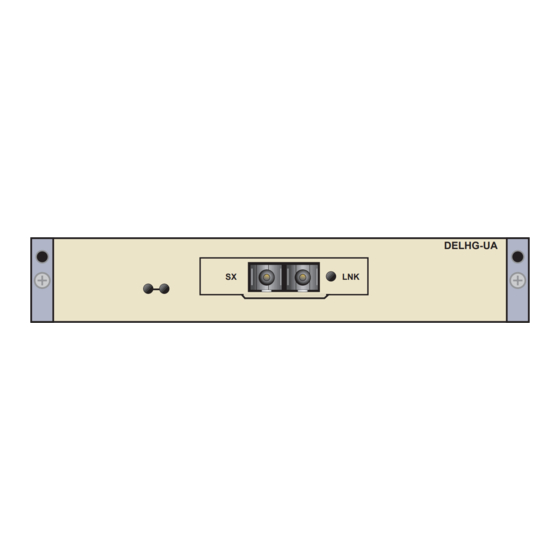

Gigabit Ethernet technology. The DELHG-UA and DELHL-UA function identically with one exception: the DELHG-UA uses a short wavelength laser device that connects to 50 or 62.5 micrometer multimode fiber optics, and the DELHL-UA uses a long wavelength laser device that connects to 50 or 62.5 micrometer multimode fiber optics, or 10 micrometer single mode... -
Page 22: Features
The DELHL-UA module supports 1000BASE-LX, offering one SC fiber optic connector for 50 or 62.5 micrometer multimode fiber optics, or 10 micrometer single mode fiber optics. The DELHG-UA and DELHL-UA operate in full duplex mode only. LANVIEW Diagnostic LEDs DIGITAL provides a visual diagnostic and monitoring system called LANVIEW. -
Page 23: Chapter 2 Installation
CHAPTER 2 INSTALLATION Only qualified personnel should install or service this unit. To install the DELHG-UA or DELHL-UA you need the following items: • Antistatic wrist strap • Phillips screwdriver Before attempting to use the DELHG-UA or DELHL-UA you should be familiar with the IEEE P802.3z specification. The... -
Page 24: Installing A Delhg-Ua Or Delhl-Ua
If you notice any signs of damage, contact your DIGITAL representative. INSTALLING A DELHG-UA OR DELHL-UA You can install a DELHG-UA or DELHL-UA in any DIGITAL device that supports HSIM technology (e.g., DLM42-MA, DLE32-MA). Refer to the release notes for the version of firmware running on the host platform to ensure that the DELHG-UA or DELHL-UA is supported. - Page 25 Figure 2-1 Removing the HSIM Coverplate Refer to Figure 2-2 and place the DELHG-UA or DELHL-UA behind the module faceplate. Align the HSIM connector of the DELHG-UA or DELHL-UA with the HSIM pins on the module. DELHG-UA/DELHL-UA User’s Guide...
- Page 26 Chapter 2 : Installation When installing the DELHG-UA or DELHL-UA, ensure that the HSIM pins on the module or device align with the DELHG-UA or DELHL-UA connector to prevent bending the pins. This can damage the DELHG-UA and DELHL-UA and the modules.
-
Page 27: Connecting To The Network
Figure 2-2 Installing the DELHG-UA or DELHL-UA CONNECTING TO THE NETWORK The DELHG-UA and DELHL-UA have an SC style connector for the network port. DIGITAL offers fiber optic cables that use SC style connectors which are keyed to ensure proper crossover of the transmit and receive fibers. -
Page 28: Delhg-Ua And Delhl-Ua Network Connection
Section 2.3.2 before following this procedure. To connect the DELHG-UA using multimode and single mode fiber, and the DELHL-UA using single mode fiber to the network, perform the following steps: The DELHG-UA and DELHL-UA use Class 1 lasers. Do not use optical instruments to view the laser output. - Page 29 A fiber port cleaning swab saturated with optical-grade isopropyl alcohol may also be used to clean the ends. Insert one end of the SC connector, key side down, into the DELHG-UA or DELHL-UA. See Figure 2-4. Refer to Appendix A the proper fiber cable for the installation.
-
Page 30: Delhl-Ua Connection Using Multimode Cable
Verify proper crossover of fiber strands between the port on the DELHG-UA or DELHL-UA and the fiber optic device at the other end of the fiber optic link segment. To remove the SC connector, from the DELHG-UA or DELHL-UA, carefully pull the connector out of the port. - Page 31 Figure 2-5 Launch Mode Conditioning Cable Connection for the DELHL-UA Once the Launch Mode Conditioning cable is connected to the ends of the premises multimode fiber cable, return to Section 2.3.1 complete the installation to the DELHL-UA device. DELHG-UA/DELHL-UA User’s Guide...
-
Page 33: Chapter 3 Lanview Leds
This chapter describes how to use the LANVIEW LEDs to monitor the HSIM status and diagnose HSIM problems. Figure 3-1 shows the location of the HSIM LEDs. Transmit (TX) DELHG-UA Link (LNK) Receive (RX) LKG-11104A-98WF Figure 3-1 HSIM LANVIEW LEDs DELHG-UA/DELHL-UA User’s Guide... - Page 34 If Auto-Negotiate is disabled, this indicates optical link. Green (Blinking) Link, port disabled. Receive Amber (Flashing) Link, activity. Port enabled. No link, no activity. Port enabled or disabled. Diagnostic failure. Green Indicates optical link. No link. DELHG-UA/DELHL-UA User’s Guide...
-
Page 35: Chapter 4 Local Management
Make sure that the following requirements have been met before accessing the DELHG-UA or DELHL-UA through Local Management: • The DELHG-UA and DELHL-UA are installed in the host platform. • The host platform is powered up and operational. •... -
Page 36: Gigabit Ethernet Configuration Screen
(Figure 4-2) displays the type of interface used (DELHG-UA or DELHL-UA), the device or module in which the DELHG-UA or DELHL-UA is installed, and the port number of the module in which it is installed. The link status, current operating mode, and advertised ability are also displayed. - Page 37 The following defines each field of the Gigabit Ethernet Configuration screen. Port X (Read-Only) The port or interface number for the DELHG-UA or DELHL-UA of the host platform into which DELHG-UA or DELHL-UA is installed. Port Type (Read-Only) Displays the type of interface (DELHG-UA or DELHL-UA) installed in the DELHG-UA and DELHL-UA.
-
Page 38: Configuring The Delhg-Ua Or Delhl-Ua Port
Displays the current operating mode of the port. Regardless of whether a DELHG-UA or DELHL-UA is installed, this field displays 1000Base-XFD. Desired Oper. Mode (Toggle) Allows the user to select the desired operational mode for a DELHG-UA or DELHL-UA interface. The field toggles between Auto-Negotiation and 1000Base-XFD. Section 4.2.1 describes how to configure a port with a DELHG-UA or DELHL-UA interface. -
Page 39: Setting The Operational Mode
Use the Desired Oper. Mode field to set the active technology. This field steps between Auto-Negotiation and 1000Base-XFD. If Auto-Negotiation is selected, the DELHG-UA or DELHL-UA automatically sets the active technology to auto-negotiate with another 802.3z compliant device. 1000Base-XFD must be chosen if the device on the other side of the link does not support Auto-Negotiation. - Page 40 Chapter 4 : Local Management Use the arrow keys to highlight the SAVE command. Press ENTER. The message “SAVED OK” displays and Local Management saves the changes to memory. DELHG-UA/DELHL-UA User’s Guide...
- Page 41 DELHG-UA and DELHL-UA. Cabletron Systems reserves the right to change these specifications at any time without notice. The DELHG-UA and DELHL-UA are both fiber devices with an SC connector. The DELHG-UA uses multimode (MMF) fiber cable, and the DELHL-UA uses both multimode and single mode (SMF) fiber cable, as...
- Page 42 This equipment meets the following safety and electromagnetic compatibility (EMC) requirements: UL 1950, CSA C22.2 No.950, Safety EN60950, IEC 950, and 73/23/EEC FCC Part 15, EN 55022, CSA Electromagnetic Compatibility C108.8, EN 50082-1, VCCI V-3, (EMC) 89/336/EEC, and AS/NZS 3548 DELHG-UA/DELHL-UA User’s Guide...
- Page 44 9032636 Printed in U.S.A.
