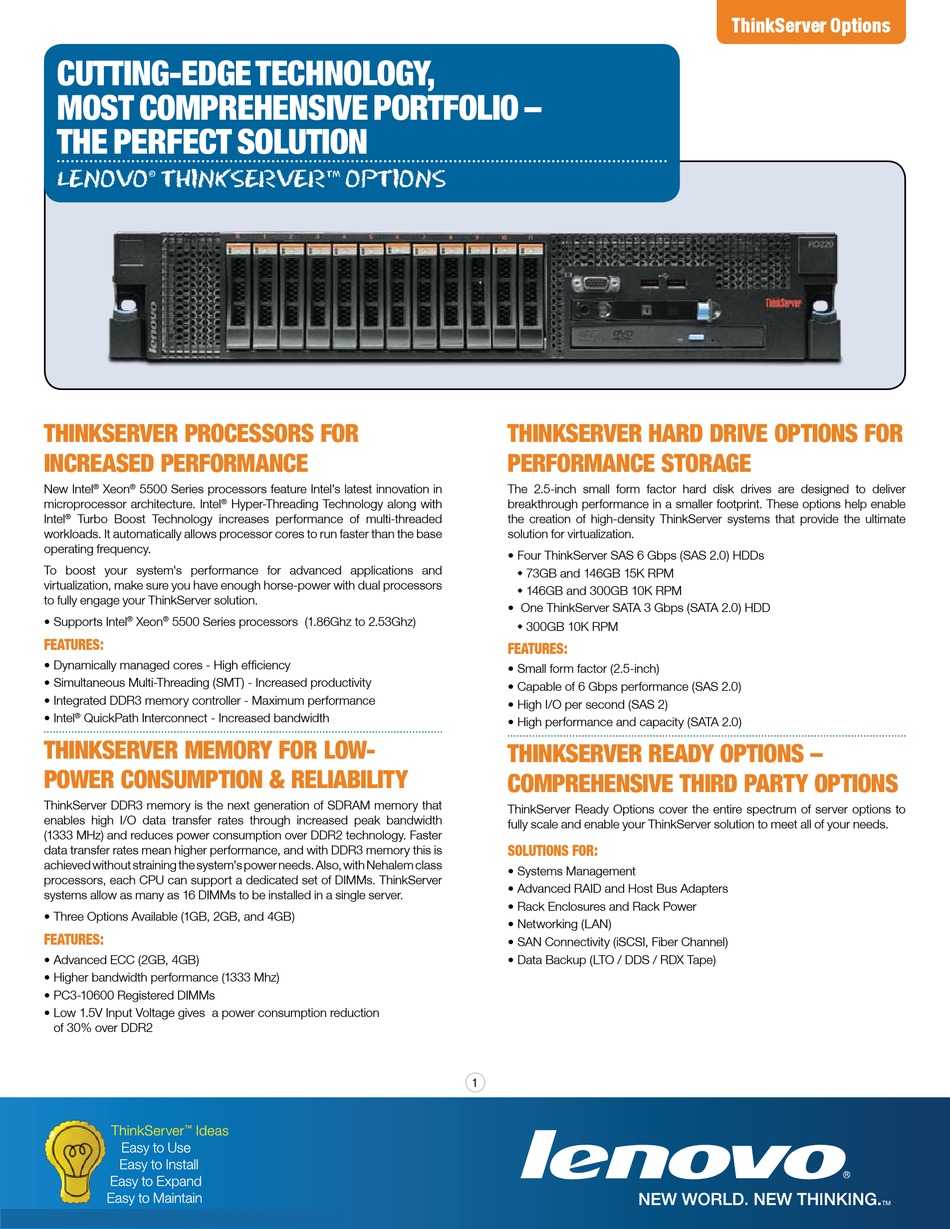

CuTTINg-EDgE TECHNOLOgY,
MOST COMPREHENSIVE PORTFOLIO –
THE PERFECT SOLuTION
Lenovo
ThinkServer ™ opTionS
®
THINKSERVER PROCESSORS FOR
INCREASED PERFORMANCE
New Intel
Xeon
5500 Series processors feature Intel's latest innovation in
®
®
microprocessor architecture. Intel
®
Intel
Turbo Boost Technology increases performance of multi-threaded
®
workloads. It automatically allows processor cores to run faster than the base
operating frequency.
To boost your system's performance for advanced applications and
virtualization, make sure you have enough horse-power with dual processors
to fully engage your ThinkServer solution.
Supports Intel
Xeon
5500 Series processors (1.86Ghz to 2.53Ghz)
®
®
FEATuRES:
Dynamically managed cores - High efficiency
Simultaneous Multi-Threading (SMT) - Increased productivity
Integrated DDR3 memory controller - Maximum performance
Intel
QuickPath Interconnect - Increased bandwidth
®
THINKSERVER MEMORY FOR LOW-
POWER CONSuMPTION & RELIABILITY
ThinkServer DDR3 memory is the next generation of SDRAM memory that
enables high I/O data transfer rates through increased peak bandwidth
(1333 MHz) and reduces power consumption over DDR2 technology. Faster
data transfer rates mean higher performance, and with DDR3 memory this is
achieved without straining the system's power needs. Also, with Nehalem class
processors, each CPU can support a dedicated set of DIMMs. ThinkServer
systems allow as many as 16 DIMMs to be installed in a single server.
Three Options Available (1GB, 2GB, and 4GB)
FEATuRES:
Advanced ECC (2GB, 4GB)
Higher bandwidth performance (1333 Mhz)
PC3-10600 Registered DIMMs
Low 1.5V Input Voltage gives a power consumption reduction
of 30% over DDR2
Hyper-Threading Technology along with
THINKSERVER HARD DRIVE OPTIONS FOR
PERFORMANCE STORAgE
The 2.5-inch small form factor hard disk drives are designed to deliver
breakthrough performance in a smaller footprint. These options help enable
the creation of high-density ThinkServer systems that provide the ultimate
solution for virtualization.
Four ThinkServer SAS 6 Gbps (SAS 2.0) HDDs
73GB and 146GB 15K RPM
Š
146GB and 300GB 10K RPM
Š
One ThinkServer SATA 3 Gbps (SATA 2.0) HDD
300GB 10K RPM
Š
FEATuRES:
Small form factor (2.5-inch)
Capable of 6 Gbps performance (SAS 2.0)
High I/O per second (SAS 2)
High performance and capacity (SATA 2.0)
THINKSERVER READY OPTIONS –
COMPREHENSIVE THIRD PARTY OPTIONS
ThinkServer Ready Options cover the entire spectrum of server options to
fully scale and enable your ThinkServer solution to meet all of your needs.
SOLuTIONS FOR:
Systems Management
Advanced RAID and Host Bus Adapters
Rack Enclosures and Rack Power
Networking (LAN)
SAN Connectivity (iSCSI, Fiber Channel)
Data Backup (LTO / DDS / RDX Tape)
1
