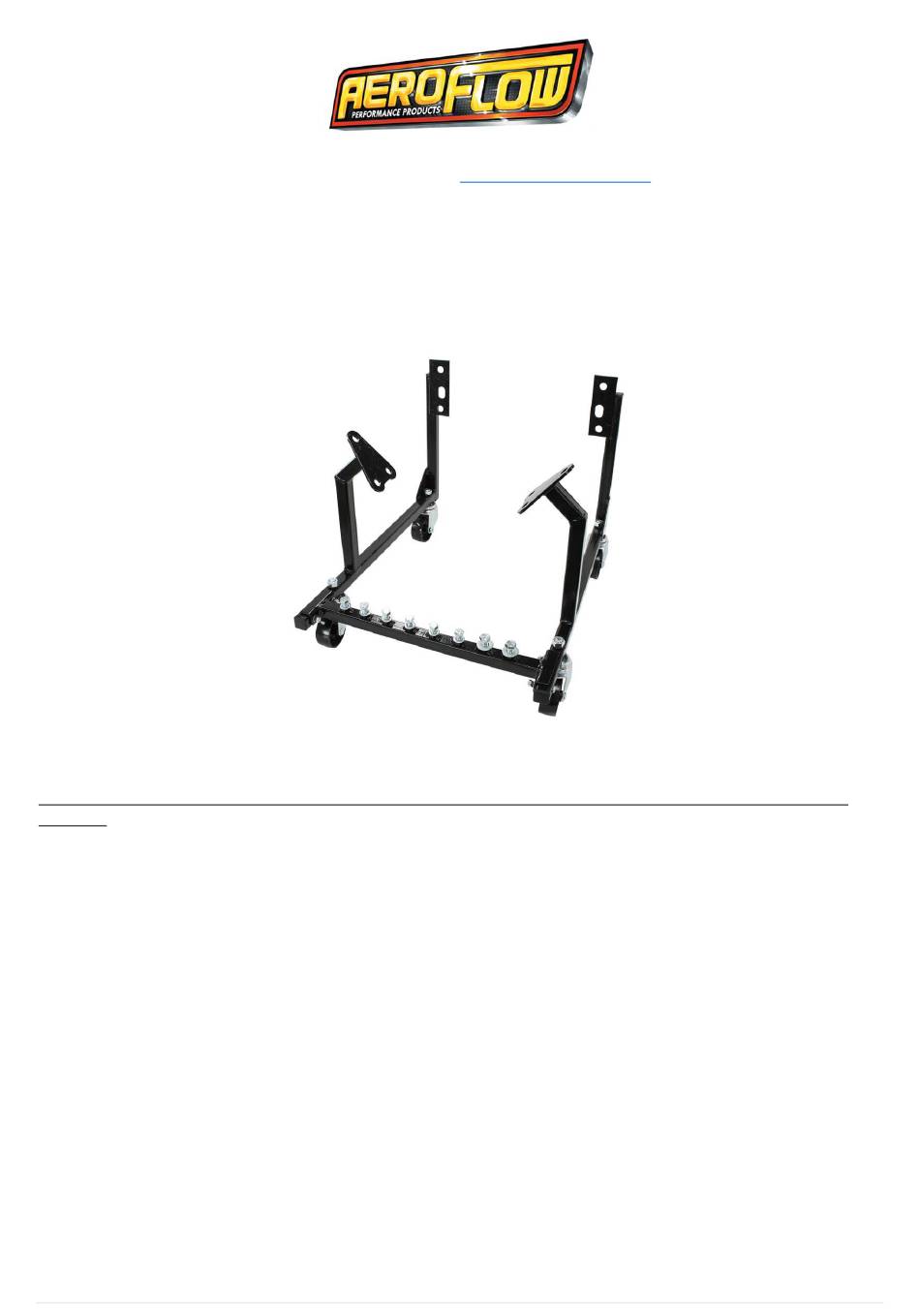

AeroFlow HOLDEN Instruction Manual

40 Huntingwood Drive Huntingwood NSW 2148

Phone: (02) 8825 1999 Website:

www.aeroflowperformance.com

INSTRUCTION MANUAL

AEROFLOW PERFORMANCE

ENGINE CRADLE TO SUIT HOLDEN

WARNING!

BEFORE PROCEEDING WITH INSTRUCTIONS PLEASE READ CAREFULLY AND UNDERSTAND BEFORE ATTEMPTING TO USE THIS

PRODUCT.

Congratulations on your purchase of the Aeroflow Performance Engine cradle to suit Holden. Aeroflow Performance products

cannot and will not be responsible for any damage, or other conditions resulting from misapplication of the parts described

herein. However, it is our intention to provide the best possible products for our customer, products that perform properly and

satisfy your expectations. Should you have any questions? Please call technical support at +61 2 8825 1900 and have the product

part number on hand when calling.

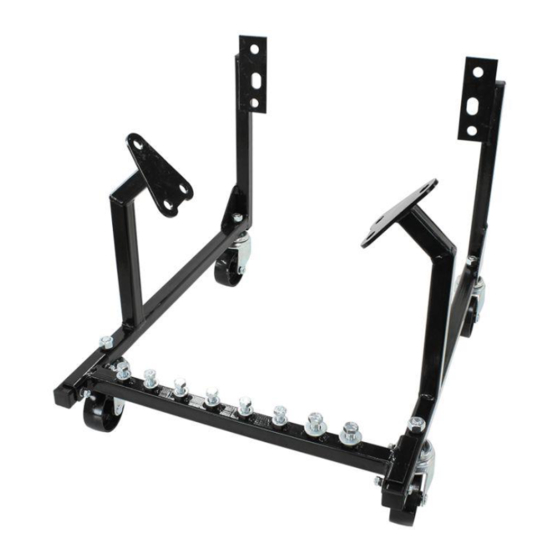

These engine cradles from Aeroflow Performance are a handy workshop or garage accessory to store or transport your engine.

Built with heavy-duty materials to deliver the right support, the right strength, and the right amount of flexibility. These cradles

sit atop four stable swivel casters that allow you too easily push and pull it around your space so you can work or store wherever

you prefer. Made from 25.4mm (1") square tubing with grade 8 fasteners holding it together means it can support up to 450kg

(990lbs). Each cradle is powered coated black for protection and can easily be disassembled when not in use.

Overall Height from wheels to engine mount bolt - 415mm (16-21/64")

Total Overall Width - 480mm (18-63/64")

Total Overall Length - 630mm (21-51/64")

1 |

P a g e

Table of Contents

Do you have a question about the HOLDEN and is the answer not in the manual?

Page 1 These engine cradles from Aeroflow Performance are a handy workshop or garage accessory to store or transport your engine. Built with heavy-duty materials to deliver the right support, the right strength, and the right amount of flexibility. These cradles sit atop four stable swivel casters that allow you too easily push and pull it around your space so you can work or store wherever you prefer.
Page 2 DO NOT exceed the maximum capacity of 450kg (990lbs) Use only on a hard level surface Never attempt to move a loaded cradle across floors that have cracks or other obstacles which might impede movement of the wheels Never work directly under a supported engine Be sure the engine and cradle are stable before commencing work Inspect the cradle is in good working condition, not worn, and not missing parts before each use Do not use when tired and or under the influence of Drugs and Alcohol...
Page 3 3. Position your engine into the engine cradle lining up the mounting points, secure with the bolts supplied along front bar. 4. Once fitted, then fully tighten the cradle bolts. For more information or technical enquires Contact: Aeroflow Performance on Phone: (02) 8825 1979 Website: www.aeroflowperformance.com P a g e...
