The Cimuka HB Series automatic turner may not be working due to the following reasons:

1. Trays Not in Horizontal Position – The trays must be set to a horizontal position before operation. Use the turner button to align them properly.

2. Incorrect Tray Placement – Flexy35 trays must be correctly positioned before switching on the incubator. Improper placement can damage the turning mechanism.

3. Power Connection Issue – Ensure the adapter power connection is secure and the incubator is switched on.

4. Automatic Mode Not Activated – After transferring trays, the incubator must be restarted using the power button. The trays will then move to a 45-degree position and enter automatic mode.

5. Mechanical Obstruction or Damage – If trays or the turning mechanism are obstructed or damaged, the turner may not function.

Checking these factors can help identify and resolve the issue.

This answer is automatically generated

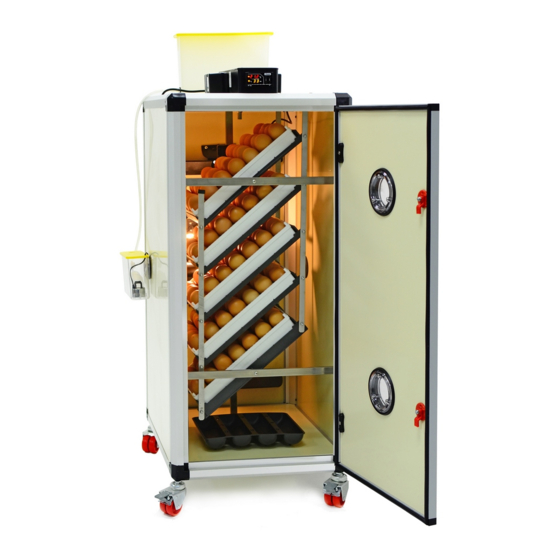

Summary of Contents for cimuka HB Series

Page 1: Table Of Contents
HB175 / HB350 / Hb500 / HB700 Please read the following instruction manual carefully before use. IMPORTANT! Keep this user manual safe for future reference. USER MANUAL Hb Series Models ………………….…..2 Parts of Models ……………………..3- 4 Quick Guide……………………….………..5 Placement of Models………………….…..6 Ventilation……………………………….….6 Egg Handling……………………………….7...
Page 2: Hb Series Models
HB SERIES Models Hatcher Models (H types) Setter Models (S types) Hb700 H Hb175 H Hb350 H Hb500 H Hb700 S Hb175 S Hb350 S Hb500 S Combined Models ( C types) Hb700 C Hb175 C Hb350 C Hb500 C...
Page 3: Parts Of Models
HB SERIES Parts of Models 1 Water reservoir - 4lt ( 1 Gallon) 2 Humisonic Adapter 3 Control Panel 4 Temperature/Humidity sensor 5 Flexy35 Setter tray ( C and S types) 6 Back Door for cleaning and service 7 TurnX...
Page 4 HB SERIES Accessories Hb175 Hb350 Hb500 Hb700 Flexy35 4 pc 5 pc 8 pc 10 pc 10 pc 14 pc 16 pc 20 pc Separators for Flexy 40 pc 50 pc 80pc 100 pc 100 pc 140 pc 160 pc...
Page 5: Quick Guide
HB SERIES Quick Guide - Remove all packing material carefully. - Please identify and check all parts of model. (see page 2-4 ) - Install Humisonic unit onto Cabinet (see page 11 ) Picture 1 - Fill humidity tray with water (1 channel).
Page 6: Placement Of Models
HB SERIES Placement of Model 50cm (1,5ft) Your incubator must be located in an indoor area. The area must be clean and ventilated. Ideal distance from walls are 50 cm (1,5 ft). Do not place machine close to the walls of incubation room. The incubator should not be exposed to direct sunlight and not subject to splashes of water or high humid conditions.
Page 7: Egg Handling
HB SERIES Egg Handling Eggs should be collected carefully and stored in good conditions up to setting. Quality of eggs is very important for hatchery results. Sanitizing eggs before storage is an effective method for killing or decreasing the amount of microorganisms in egg surface. You must know that sanitation processes does not only kill the bacteria, but it can also kill the chick embryo in the egg.
Page 8 HB SERIES To check temperature set point To check humidity set point When main screen is active, When main screen is active, 37.7 37.7 Press button and release Press button and release (f)tSEt – Temperature Set Screen hSEt– Humidity Set Screen...
Page 9 HB SERIES Turn Light On Second sensor / Remaining time until next cooling When main screen is active, When main screen is active, 37.7 Press button to light on and off. 37.7 Press button and release to check second Note: If you forget light on, controller will off bulb automatically after 3 minute.
Page 10 HB SERIES User Menu Parameters US2: USB connected device Hold T + H together for 3 seconds to enter menu no : no connected device 37.7 -Use T /H buttons to choose parameter. th : second sensor connected ( room/calibration) ıot: iot module connected...
Page 11: Usb Connection / Room Sensor
Sensor protective cover protective cover. Room sensor measures the temperature and humidity conditions of the room. Cimuka advanced temperature/ humidity controller provides best control of cabinet for room conditions and it has USB connection second sensor voice alarm function for high/low temperature/humidity with user adjustable parameters.
Page 12: Humisonic
HB SERIES Humisonic Automatic Humidity Control Humidity adjustment in incubators is for providing adequate water loss from eggs. Eggs need to lose between 13-16 % water depending on the species during incubation period. Weighing your eggs during incubation is the most reliable way to find proper humidity level for particular poultry species.
Page 13: Humidity Tray
Cabinet humidity value can also be adjusted manually by water channels. Humidity values are shown in control panel digitally. Humidity levels directly result of water surface area in base. Hb series models have different size of water channels to adjust humidity at desired level.
Page 14: Turnx Tm Automatic Turning System
HB SERIES TurnX Automatic Turning System TurnX Automatic turning system provides 90 turning per 1 hour. TurnX linear actuator is controlled by TurnX control adapter. Turner button in control adapter is to get trays parallel position for egg setting and transfer procedures.
Page 15: Setter Trays And Hatchery Baskets
Flexy35 Universal Setter Tray Hb series Setter ( S) and Combined (C) models come with Flexy35 universal egg trays. Flexy35 separators can be adjusted for different egg size. Each Flexy35 tray comes with 10pc of separator and can be adjustable from quail to goose eggs.
Page 16 HB SERIES CS35Y Hatchery Basket Typical Egg Cpacities Chicken/ Duck Quail Eggs are transferred to Partridge Hatchery baskets at free Pheasant position for last 2-3 day of Turkeyi/ Big Duck incubation. Goose- Peacock 15-20 Hatchers ( H types) have shelves for hatchery baskets...
Page 17: Active Periodic Cooling (Apc)
2. Fan assistant cooling mode (for models with cooling fan) - reaches desired cooling temperature faster Cimuka ‘s advanced incubator controller lets user to change all parameters with Active Periodic Cooling (APC) menu to try and achieve best hatch rates for different poultry specie’s eggs.
Page 18 HB SERIES Active Periodic Cooling (APC) Menu -Hold U + D together 3 seconds to enter menu hct: max cooling time ( minute) 37.7 Heater /humidifier cut off time for clt mode. -Use T /H buttons to choose parameter. Maximum cooling time for clS mode.
Page 19 HB SERIES The best hatch rates can be reached with which parameter combination is not known for different species yet. Cimuka Research Team is collecting data from our research center and customers for different APC applications. The table below outlines the recommended parameters for cooling for a set (clS) mode.
Page 20 HB SERIES Active Periodic Cooling (APC) function behavior at “cooling for a set ( clS)” mode given in the graph for below parameters . APC Parameters Display settings Cooling mode Cooling start time Cooling cycle 24 h Cooling set point C ( set –adjusted data) -8.0 C...
Page 21: Setting And Hatching
HB SERIES Setting and Hatching Combine ( C type) Models – Partial Setting To decrease egg storage times, in Combined models ( C type), eggs are set partially and periodically per 4-5 day. Not forget to consider hatchery capacity of model. Eggs must be transferred to hatchery part for last 2 day of incubation.
Page 22 Setters / Hatchers Hb series offers Setter (S) and Hatcher (H) models in 4 different capacities from 175 to 700 chicken egg. Using a separate hatcher gives advantage user to work with exact temperature and humidity values for embryo needs. And also a separate hatcher decreases microbial cross contamination risk between eggs in setter and hatcher.
Page 23 HB SERIES All Set / All Hatch Setter (S) models and Combined Models ( C) can also be used for all set / all hatch . Flexy35 setter tray can be converted to a hatchery basket by using Flexy35 hatchery cover.
Page 24: Incubation Records
HB SERIES Incubation Records Keeping personal records is important for identifying performance issues or problems in incubation. Name of species, setting date, transfer date, first and last hatching date, number of eggs set, number of fertile eggs, number of chicks, and % hatchability should be recorded for future reference.
Page 25: Cleaning Up And Service
Always check inside temperature and humidity of your model periodically with a high quality calibrated glass or electronic thermometer. If needed carry out a proper calibration procedure. Egg incubation requires dedication and oversight. Cimuka, or it’s distributors will not be heldresponsibleforloss of eggs or chicks under anycircumstances.
Page 26: Product Information
HB SERIES Product Information Typical Egg Hb175 Hb350 Hb500 Hb700 Capacities Quail 396+99* 792+198* 1386 1386 990+396* 1980 1980 1584+396* Partridge 224+56* 448+112* 560+224* 1120 1120 896+224* Pheasant 192+48* 384+96* 480+192* 768+192* Hen/ Duck 140+35* 280+70* 350+140* 560+140* Turkey/ Big Duck...
Page 27: Recommended Incubation Values
HB SERIES Recommended Incubation Values Typical incubation periods and recommended temperature / humidity values for the species are given below. Incubation periods, temperature and humidity values can change for particular species. Please check literature or ask your dealer for information.
