Page 1

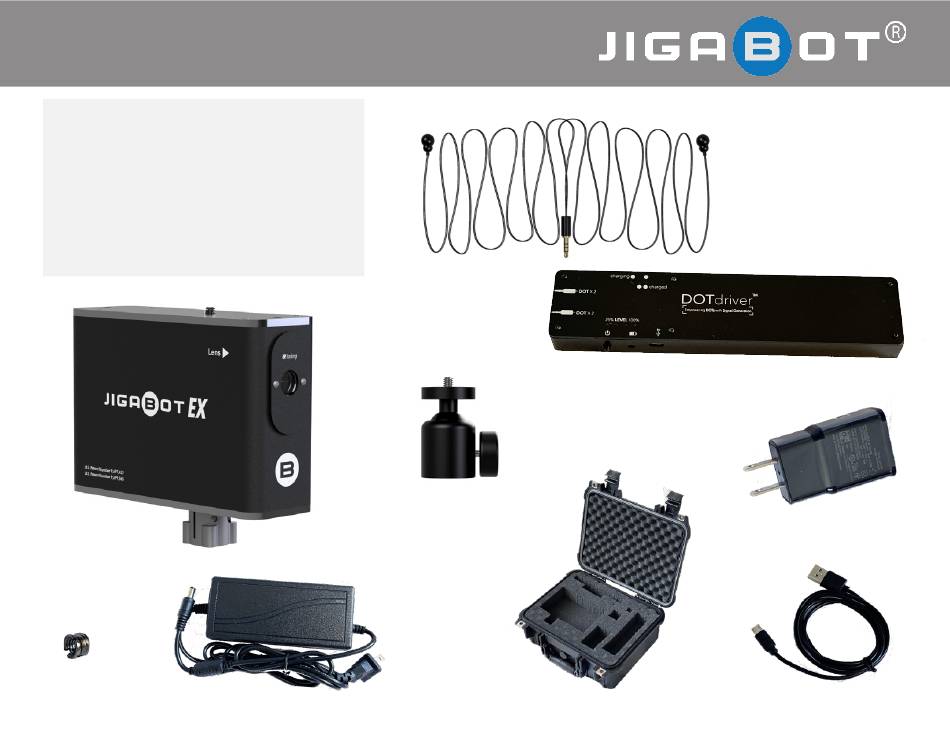

Quick-Start Guide Jigabot EX What’s In the Box? Your Jigabot EX Kit comes with the following items (and DOTs (two shown) may include more depending upon the accessories or Kit you purchased): 1. Jigabot EX robot, including • Power Supply (plugs into wall & Jigabot EX) •...
Page 2
IN for 3 seconds (this is the back of the Jigabot EX) Stand 6 feet in front of the Jigabot EX, and move the dots slowly from side to side. Congratulations, you’re tracking! Plug in power supply STEP 1...
Page 3
Quick-Start Guide Jigabot EX Mount an iPad Once you verify how to track with your Jigabot EX, you can attach an iPad as STEP 3 follows: Attach the iPad to the iPad Mount Follow steps A, B, C below: First power OFF your Jigabot and DOTdriver, then do this setup: 1.
Page 4
Again power ON, then stand 6 feet in front of the Jigabot EX and move the that the Jigabot pans DOTs slowly from side to side. Congratulations, you’re tracking with a small...
Page 5
3. Make sure that your tripod is properly leveled Again power ON, then stand 6 feet in front of the Jigabot EX and move the DOTs slowly from side to side. Congratulations, you’re tracking with a larger...
Page 6
3/16 screws. foam, and place the included strap included rubber washer (not shown) (not shown) across the Laptop. goes between the Disk and Top Mount. Confidential & proprietary. Copyright 2022 Jigabot LLC, all rights reserved. Info@jigabot.com www.Jigabot.com Ph. 801-995-3680...
Page 7
(the rotational axis) so that as the Twof- er pans (rotates) it is never going “up hill” or “down hill.” This will give you the smoothest camera movements. Confidential & proprietary. Copyright 2022 Jigabot LLC, all rights reserved. Info@jigabot.com www.Jigabot.com Ph. 801-995-3680...
Page 8
It does this by pro- viding a larger platform for attaching to tripods, brackets, jibs, dollies, carts, etc. It mounts to the EX base using four M4 screws. The Base Mount has two 3/8”-16 threaded holes as well as a 1/4”-20...
