Jigabot EX Quick Start Manual

Quick-Start Guide

Jigabot EX

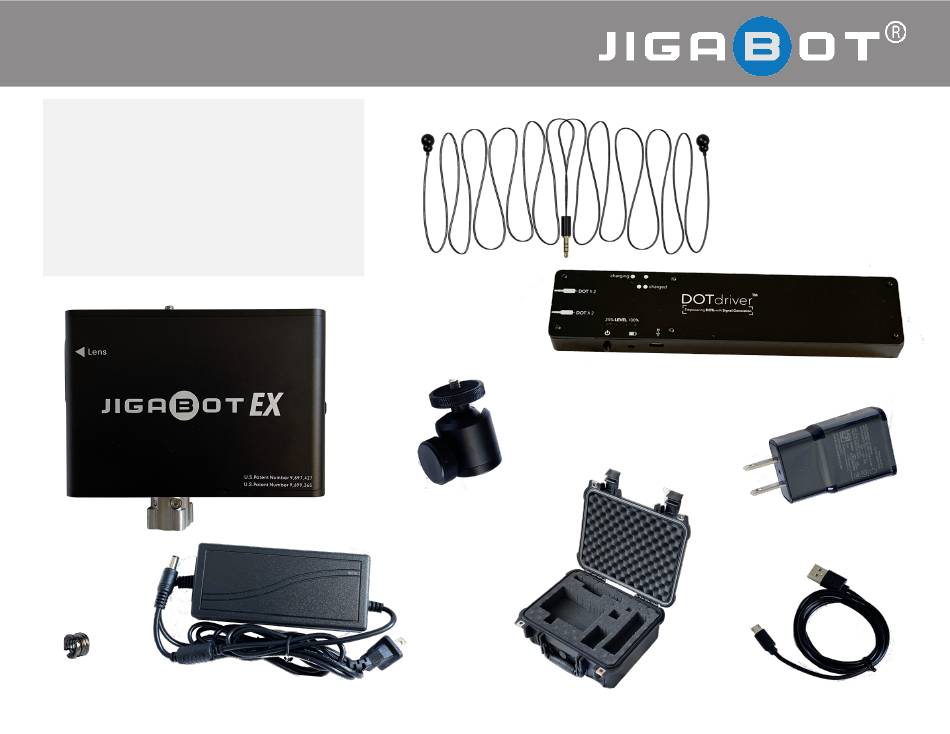

What's In the Box?

Your Jigabot EX comes with the following items (and may

include more depending upon the accessories or Kit you

purchased):

1. Jigabot EX robot, including

• Power Supply (plugs into wall & Jigabot EX)

• Tripod adapter (1/4-20" to 3/8-16")

2. DOTdriver & 4 DOTs, including

• USB wall charger

• Micro USB charging cable

3. Ballhead Mount

4. Carrying Case

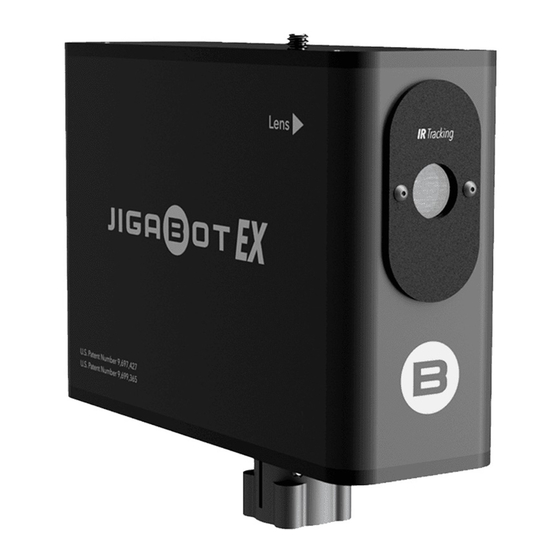

Jigabot EX robot

Tripod

Adapter

for using

the Jigabot

with 1/4-

20" tripods

DOTs (two shown)

Ballhead Mount

Power Supply

Carrying Case

Support@jigabot.com www.Jigabot.com Ph. 801-995-3680

DOTdriver

USB Wall Charger

Micro USB Charging Cable

Table of Contents

Need help?

Do you have a question about the EX and is the answer not in the manual?

Page 1 Quick-Start Guide Jigabot EX What’s In the Box? Your Jigabot EX comes with the following items (and may DOTs (two shown) include more depending upon the accessories or Kit you purchased): 1. Jigabot EX robot, including • Power Supply (plugs into wall & Jigabot EX) •...
Page 2 3. Tighthly plug in a set of DOTs to the DOTdriver, and hold the power button IN for 3 seconds Stand 6 feet in front of the Jigabot EX, and move the dots slowly from side to side. Congratulations, you’re tracking!
Page 3 Quick-Start Guide Jigabot EX Mount an iPad Once you verify how to track with your Jigabot EX, you can attach an iPad as follows: STEP 2 STEP 3 First power OFF your Jigabot and DOTdriver, then set up as follows: Third, place top of 1.
Page 4 1. Attach the Ballhead mount to the Jigabot EX 2. Attach the Camera to the Ballhead mount Again power ON, then stand 6 feet in front of the Jigabot EX and move the DOTs slowly from side to side. Congratulations, you’re tracking with a small...
Page 5 3. Make sure that your tripod is properly leveled Again power ON, then stand 6 feet in front of the Jigabot EX and move the DOTs slowly from side to side. Congratulations, you’re tracking with a larger...
