LED Mirror Cabinet
Sizes: 16" W x 30"H
34" W x 24"H
Model: M13CT1630T, M13CTB3424T (Bluetooth), M16CT3424T
Thoroughly read all instructions before installing the enclosed product.
Read and take note of all safety, care, and maintenance information.
Product Features:
Frameless backlit Mirror
Extra thick frosted LED light
5.5" cabinet thickness
Built-in internal light
Touch switch on & off
Anti-fog pad
Advertisement
Table of Contents
Related Manuals for Dyconn M13CT1630T
Summary of Contents for Dyconn M13CT1630T

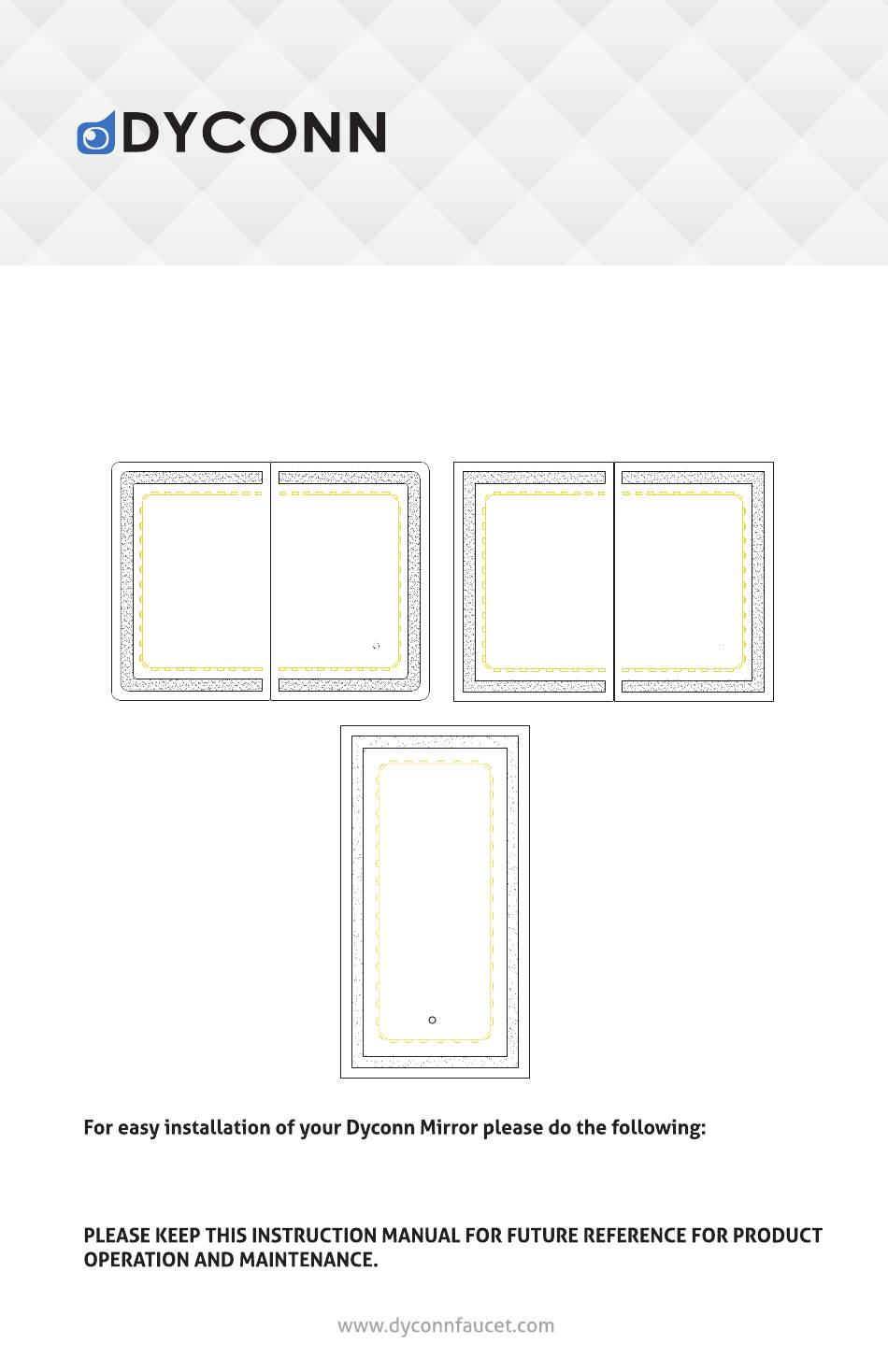

- Page 1 Touch switch on & off Anti-fog pad LED Mirror Cabinet Sizes: 16” W x 30”H 34” W x 24”H Model: M13CT1630T, M13CTB3424T (Bluetooth), M16CT3424T Thoroughly read all instructions before installing the enclosed product. Read and take note of all safety, care, and maintenance information.
-
Page 3: Product Features
Extra thick frosted LED light Studs 5.5” cabinet thickness Mounting bracket Built-in internal light Touch switch on & off Anti-fog pad Model: M13CT1630T M13 Mirror Cabinet Size: 16” x 30” (40.6 cm x 76.2 cm) ” (140 mm) 16” (406 mm) 1” (25 mm) ”... - Page 4 Model: M13CTB3424T M13 Bluetooth Mirror Cabinet Size: 34” x 24” (86.4 cm x 60 cm) ” (140 mm) 34” (864 mm) ” (30mm) ” (19mm) Mounting Frosted mirror Cleat Internal light 3mm copper free 2835 LED, silver mirror with 6000K, 5.4W Vinyl backing 2835 SMD LED, Waterproof 38W,...
-
Page 5: Tools & Preparation
Tools & Preparation IMPORTANT WARNING Warning: Always switch o the electrical supply at the mains during installation and maintenance. Do not switch on the electrical supply at the mains until the end of the installation. TOOLS REQUIRED Tape Measure Electronic Drill Spirit level Pencil Philips Screwdriver... -
Page 6: Wall Hanging Installation
Wall hanging Installation STEP 1 Turn o the power supply. STEP 2 Place the metal 'Z' bar against the wall and mark the suitable position of the screw holes ensuring it is level. STEP 3 Drill the holes and put in the wall plugs for 'Z' bar. - Page 7 Wall hanging Installation STEP 6 Connect the wires of the cabinet with the main power by the wire connectors. BLACK WIRE --- POWER SUPPLY (LIVE) WHITE WIRE --- POWER SUPPLY (NEUTRAL) GREEN WIRE --- POWER SUPPLY E (EARTH) WARNING: This product must be earthed.
- Page 8 Recess Wall hanging Installation STEP 1 Turn o the power supply. STEP 2 Mark the positions of the mounting holes on both sides of the wall, using a pencil and a spirit level, insert the wall plugs after you drill the holes, The maximum recessed depth is 90mm.
- Page 9 Touch Sensor & Bluetooth Settings Touch Sensor Settings 1. Switch on Light and Defogger by short-touching the button. 2. Adjusting color temperatures (CCT) between warm white and cool white by long-touching the button. 3. Adjusting the brightness (Dimming) by long-touching the button. 4.
-
Page 10: Warranty
Warranty...
