Item #1006596149, 10006596138, 1006596147, 1006596150, 1006596137, 1006596134
1006596145

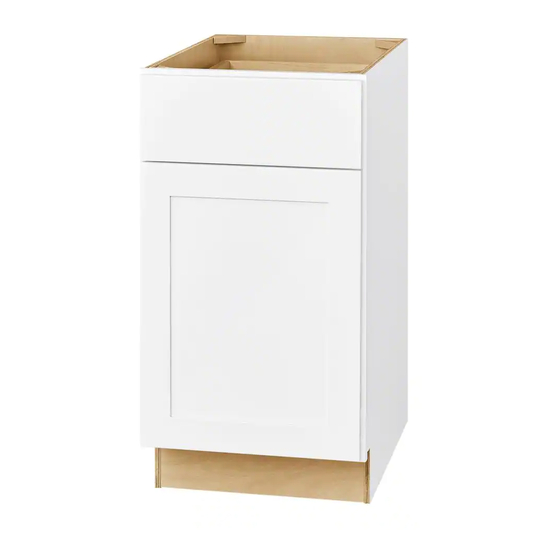

Model #B12, B15, B18, B24, B30, B36, BBC36

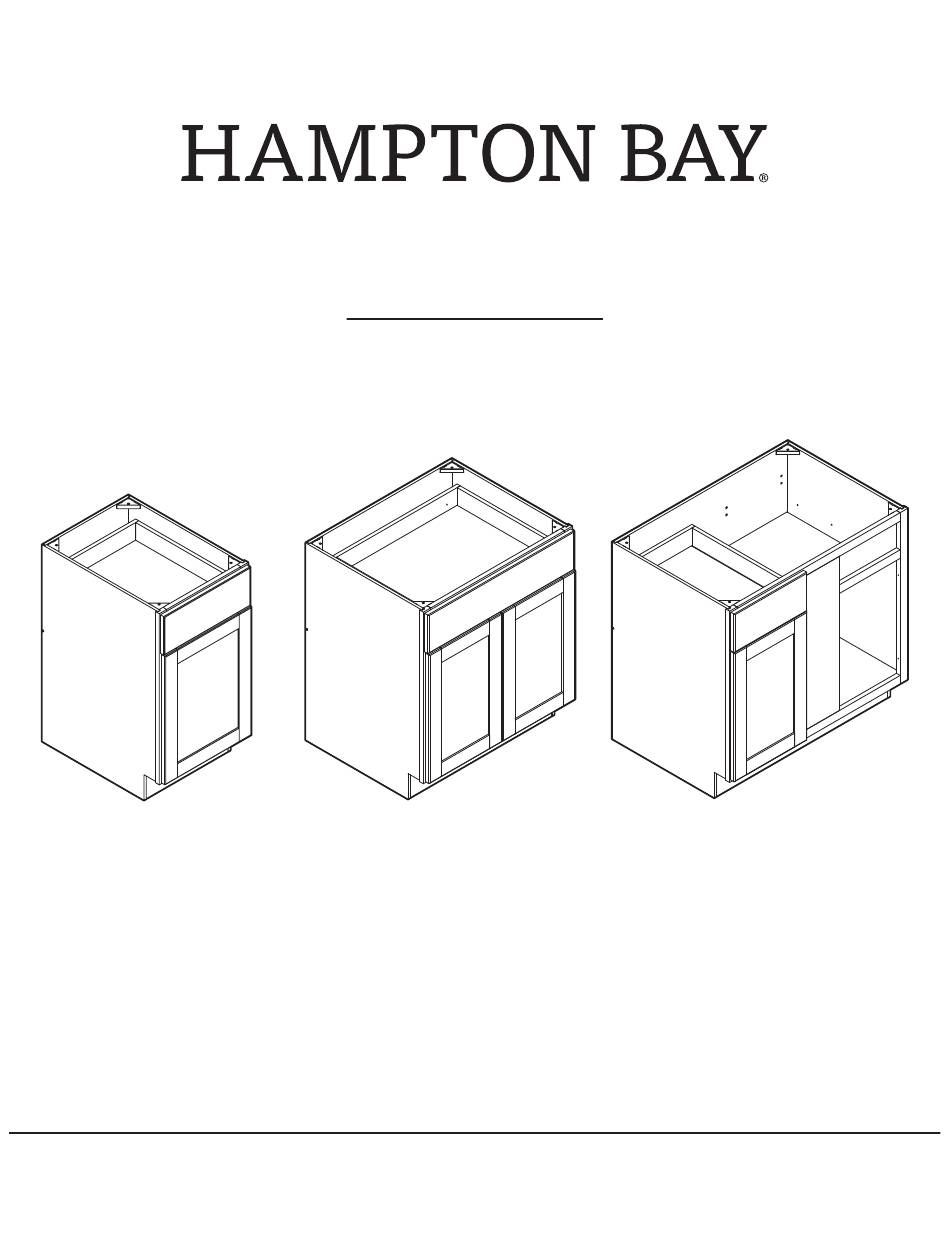

USE AND CARE GUIDE
BASE CABINET
Questions, problems, missing parts? Before returning to the store,
call Hampton Bay Customer Service
8 a.m. - 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday
1-855-HD-HAMPTON
HAMPTONBAY.COM
THANK YOU
We appreciate the trust and confidence you have placed in Hampton Bay through the purchase of this base cabinet. We strive to continually
create quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement
needs. Thank you for choosing Hampton Bay!

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BASE CABINET B12 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for HAMPTONBAY BASE CABINET B12

  • Page 1 8 a.m. - 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday 1-855-HD-HAMPTON HAMPTONBAY.COM THANK YOU We appreciate the trust and confidence you have placed in Hampton Bay through the purchase of this base cabinet. We strive to continually create quality products designed to enhance your home.
  • Page 2: Table Of Contents

    CONTROLLED MECHANICAL VENTILATION CAN BE USED TO REDUCE LEVELS OF FORMALDEHYDE AND OTHER INDOOR AIR CONTAMINANTS. IF YOU HAVE ANY QUESTIONS REGARDING THE HEALTH EFFECTS OF FORMALDEHYDE, CONSULT YOUR DOCTOR OR LOCAL HEALTH DEPARTMENT. Warranty Contact the Customer Service Team at 1-855-HD-HAMPTON or visit www.HAMPTONBAY.com.
  • Page 3: Pre-Assembly

    Drawer Glide Holders Silicone Pads * Extras quantity is based upon your cabinet size. * Extras quantity is based upon your cabinet size. ** 9 in. Base cabinets do not have a drawer. HAMPTONBAY.COM Please contact 1-855-HD-HAMPTON for further assistance.
  • Page 4: Package Contents

    Pre-Assembly (continued) PACKAGE CONTENTS Part Description Quantity Back Panel Side Panels Face Frame Bottom Panel Toe Kick Drawer Front Drawer Sides Drawer Bottom Drawer Back Shelf...
  • Page 5: Cabinet Assembly

    Installing the drawer glide holders to the back panel □ Install drawer glide holders (II) to the back panel (A) by inserting the holders (II) into holes in the back panel (A). □ Secure with two small screws (HH). HAMPTONBAY.COM Please contact 1-855-HD-HAMPTON for further assistance.
  • Page 6 Cabinet Assembly (continued) Attaching the side panels into the face frame □ Start by placing the face frame (C) flat on a smooth surface that will not scratch or damage the face of the cabinet, such as a towel or piece of cardboard (1) from the packaging with the door facing down. Slide the two side panels (B) into the mating grooves on the face frame (C).
  • Page 7 (CC) should be facing out. NOTE: If installing a laminate countertop, the smooth face of each corner lock (CC) should be facing the inside of the cabinet. HAMPTONBAY.COM Please contact 1-855-HD-HAMPTON for further assistance.
  • Page 8 Cabinet Assembly (continued) Attaching the back panel □ Assemble the back panel (A) and the four remaining corner locks (CC). NOTE: If installing on a laminate countertop, orient the smooth face of each top corner lock (CC) in the opposite direction. Bottom corner lock assembly will be the same for all countertop types.
  • Page 9 □ Slide the toe kick (E) into the grooves of the side panels (B) so that it sits flush with the bottom of the cabinet. □ Insert two screws (BB) into the pocket holes to secure the toe kick (E) to the sides. HAMPTONBAY.COM Please contact 1-855-HD-HAMPTON for further assistance.
  • Page 10 Cabinet Assembly (continued) Securing the back and side panels □ Insert screws (BB) into countersunk holes in the back (A) and side panels (B). □ Proceed to the Drawer Box Assembly section. NOTE: Base cabinets 27 in. and wider will have two holes through the back, all other sizes will have one.
  • Page 11: Drawer Box Assembly

    NOTE: It is important that you only partially tighten the screws in order to avoid cracking. Attaching the drawer bottom □ Slide the drawer bottom (H) into the groves on the sides of the drawer assembly. HAMPTONBAY.COM Please contact 1-855-HD-HAMPTON for further assistance.
  • Page 12 Drawer Box Assembly (continued) Attaching the drawer back □ Use a rubber mallet to tap the drawer back (I) into place. To fit the drawer back on, drawer sides will have to flex outwards slightly. □ Insert two more screws (BB) into the countersunk holes on each side.
  • Page 13 □ Ensure the drawer glides are pulled out/fully extended. □ Align the drawer with the glides and then click and slide into place. Additionally, the holes in the back of the drawer need to align with the metal prong, as shown. HAMPTONBAY.COM Please contact 1-855-HD-HAMPTON for further assistance.
  • Page 14 Drawer Box Assembly (continued) (OPTIONAL) Adjusting the drawer front □ Drawer fronts can be adjusted by turning the knobs on drawer glide attachments. Drawer fronts can be moved left, right, up, and down on each side until they are level. NOTE: Do not complete this step until the cabinet is fully installed.
  • Page 15: Completing The Assembly

    □ You can remove and reposition the door to the other side of the face frame at any time using the pre-drilled holes. For pre-drilled holes that are not used, you can cover them up using a wax pencil or touch-up paint pen. HAMPTONBAY.COM Please contact 1-855-HD-HAMPTON for further assistance.
  • Page 16 Completing the Assembly (continued) (OPTIONAL) Adjusting the door □ Door hinges are 6-way adjustable. □ Up or down adjustment – Loosen screw 1, align the door, and tighten screw 1. NOTE: It is critical that you do NOT overtighten screw 1. □...
  • Page 17: Care And Cleaning

    □ Cabinets can be cleaned with a damp sponge or cloth using soapy water, or most general purpose household cleaners. Do not use any abrasive cleaner or scrubbers. □ Do not allow liquids to remain on the surfaces for long periods of time. HAMPTONBAY.COM Please contact 1-855-HD-HAMPTON for further assistance.
  • Page 18 Questions, problems, missing parts? Before returning to the store, call Hampton Bay Customer Service 8 a.m. – 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday 1-855-HD-HAMPTON HAMPTONBAY.COM Retain this manual for future use.
