Item #1000 000 000
Model #XXXXX
USE AND CARE GUIDE

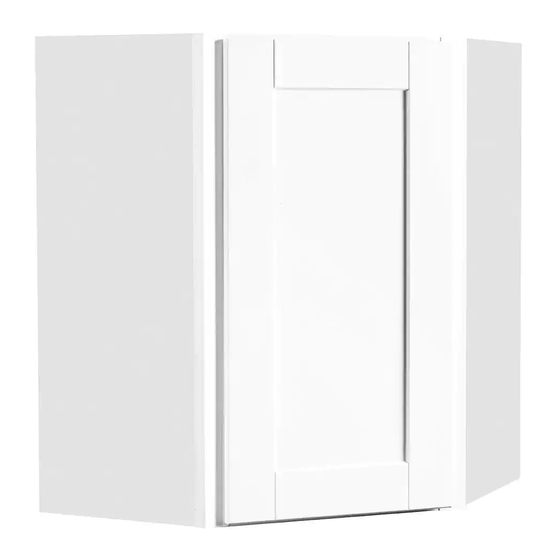

CORNER WALL CABINET
Questions, problems, missing parts? Before returning to the store,
call Hampton Bay Customer Service
8 a.m. - 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday
1-855-HD-HAMPTON
HAMPTONBAY.COM
THANK YOU
We appreciate the trust and confidence you have placed in Hampton Bay through the purchase of this wall cabinet. We strive to continually
create quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement
needs. Thank you for choosing Hampton Bay!

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CORNER WALL CABINET 1000 000 000 Series and is the answer not in the manual?

Questions and answers

Related Manuals for HAMPTONBAY CORNER WALL CABINET 1000 000 000 Series

Summary of Contents for HAMPTONBAY CORNER WALL CABINET 1000 000 000 Series

  • Page 1 8 a.m. - 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday 1-855-HD-HAMPTON HAMPTONBAY.COM THANK YOU We appreciate the trust and confidence you have placed in Hampton Bay through the purchase of this wall cabinet. We strive to continually create quality products designed to enhance your home.

  • Page 2: Table Of Contents

    CONTROLLED MECHANICAL VENTILATION CAN BE USED TO REDUCE LEVELS OF FORMALDEHYDE AND OTHER INDOOR AIR CONTAMINANTS. IF YOU HAVE ANY QUESTIONS REGARDING THE HEALTH EFFECTS OF FORMALDEHYDE, CONSULT YOUR DOCTOR OR LOCAL HEALTH DEPARTMENT. Warranty Contact the Customer Service Team at 1-855-HD-HAMPTON or visit www.HAMPTONBAY.com.

  • Page 3: Pre-Assembly

    Total Quantity Extras* Posts #8 x 1 in. Screws (yellow) Corner Locks Shelf Pins 135-Degree Corner Brackets #8 x 1/2 in. Screws (yellow) Silicone Pads * Extras quantity is based upon your cabinet size. HAMPTONBAY.COM Please contact 1-855-HD-HAMPTON for further assistance.

  • Page 4: Package Contents

    Pre-Assembly (continued) PACKAGE CONTENTS Part Description Quantity Back Panels with Attached Shims Side Panels Face Frame Top and Bottom Panels Shelf * 42 in. Tall pantries have 3 shelves.

  • Page 5: Assembly

    Attaching the posts to the side panels □ Locate the two side panels (B). □ Align two posts (AA) with predrilled holes closest to the grooved edge on each side panel (B) and secure with screws (BB). HAMPTONBAY.COM Please contact 1-855-HD-HAMPTON for further assistance.
  • Page 6 Assembly (continued) Connecting the back and side panels □ Lay a back panel (A) down with shims facing the floor. Align the other back panel (A) to create a 90-degree corner. □ Secure together using two corner locks (CC). Make sure the flat face of the corner locks (CC) faces out. □...
  • Page 7 (CC). Attaching the face frame □ Align the face frame (C) with the sides of the cabinet. Attach face frame (C) using four 135-degree corner brackets (EE) and twelve 1/2 in. screws (FF). HAMPTONBAY.COM Please contact 1-855-HD-HAMPTON for further assistance.
  • Page 8 Assembly (continued) Securing the corner locks □ Insert a screw (BB) through the hole in each of the six corner locks (CC), and screw into the top/bottom panels. Securing the panels in place □ Insert seven screws (BB) into the countersunk holes in the back (A) and side panels (B).
  • Page 9 □ You can remove and reposition the door to the other side of the face frame at any time using the pre-drilled holes. For pre-drilled holes that are not used, you can cover them up using a wax pencil or touch-up paint pen. HAMPTONBAY.COM Please contact 1-855-HD-HAMPTON for further assistance.
  • Page 10 Assembly (continued) (OPTIONAL) Adjusting the door □ Door hinges are 6-way adjustable. □ Up or down adjustment – Loosen screw 1, align the door, and tighten screw 1. NOTE: It is critical that you do NOT overtighten screw 1. □ Left or right adjustment – Turn screw 2 clockwise or counterclockwise.

  • Page 11: Care And Cleaning

    □ Cabinets can be cleaned with a damp sponge or cloth using soapy water, or most general purpose household cleaners. Do not use any abrasive cleaner or scrubbers. □ Do not allow liquids to remain on the surfaces for long periods of time. HAMPTONBAY.COM Please contact 1-855-HD-HAMPTON for further assistance.
  • Page 12 Questions, problems, missing parts? Before returning to the store, call Hampton Bay Customer Service 8 a.m. – 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday 1-855-HD-HAMPTON HAMPTONBAY.COM Retain this manual for future use.
