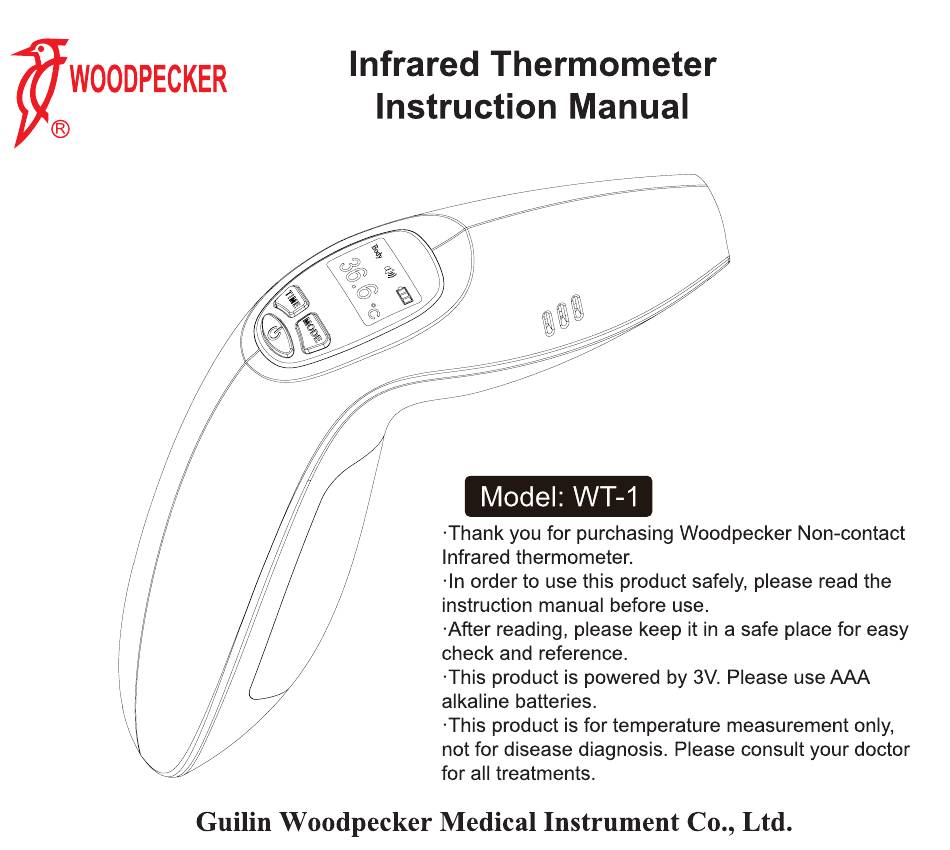

Summary of Contents for Woodpecker WT-1
-
Page 2: Table Of Contents
Contents Description--------------------------------------------------------------------------------3 Performance -----------------------------------------------------------------------------4 Features -----------------------------------------------------------------------------------4 Scope of application -------------------------------------------------------------------4 Configuration -----------------------------------------------------------------------------4 Contraindication -------------------------------------------------------------------------4 Technical data ---------------------------------------------------------------------------5 Special storage and transport conditions -----------------------------------------5 How to use--------------------------------------------------------------------------------5 Troubleshooting -------------------------------------------------------------------------9 Electromagnetic Compatibility ------------------------------------------------------ 10 Statement -------------------------------------------------------------------------------- 14 Warranty Card -------------------------------------------------------------------------- 15... -
Page 3: Description
Description Product structure and composition: It is mainly composed of infrared sensor, circuit board, OLED display and casing. -
Page 4: Performance
Performance Measurement error: 32.0℃ -34.9℃ , ±0.4℃ 35.0℃ -42.0℃ , ±0.3℃ 42.1℃ -42.9℃ ,±0.4℃ ; Fast: Measurement time is less than 2 seconds. Easy to use: One-button measurement for easy operation. Non-contact: Measure on the forehead without touching human skin and avoid cross infection. Large screen display: OLED screen display, read clearly at night. -
Page 5: Technical Data
Technical data 1. Normal working condition: Temperature: 16℃ ~ 35℃ ; Relative humidity: ≤93%; Atmospheric pressure: 70kPa~ 106kPa; 2. Power supply: DC 3V ( 2 AAA alkaline dry cells ); 3. Dimension: about 141mmx42mmx132mm ( length x width x height ); 4. - Page 6 qualified technicians it, he/she can request it from the manufacturer, and the manufacturer will provide it. - Follow the maintenance recommendations in this manual. - This product is suitable for professional use or home use. - Keep this product out of the reach of children. - The ambient temperature of this product must be between16℃...
- Page 7 1. Key description: Function Description 1. In the off state, press the power button for a short time, and the system will enter the standby Power-on, power- measurement mode. The screen displays "--- ℃ " off, and measuring 2. One-button measurement: short press the button to ON/OFF/ start the measurement.
- Page 8 when the measurement is not completed. If the measured part (forehead) cannot be guaranteed, in a constant environment, it is recommended to use a non-exposed body surface for measurement (such as the chest or abdomen). 5. When the person to be measured comes from a place with a large difference in temperature from the measurement environment, they should stay in the measurement environment for at least 10 minutes and wait until the ambient temperature is consistent before measuring, otherwise it will affect the measurement result.
-
Page 9: Troubleshooting
add too much water or alcohol to prevent damage to the product if it flows into the interior. 2. Internal dirt: The internal infrared detector is an important device. Do not touch or press with your fingers or other objects, otherwise the accuracy of the measurement value will be affected. When the infrared sensor is found to be dirty, wipe it with a cotton swab moistened with 95% absolute alcohol. -
Page 10: Electromagnetic Compatibility
-The user should install and use the device as per the electromagnetic compatibility information provided in the accompanying documents. -Portable and mobile RF communication equipment may affect the performance of the WT-1 Infrared thermometer, so avoid strong electromagnetic interference when using it; therefore, please do not use it near mobile phones, microwave ovens, etc. - Page 11 Annex: Guidance and manufacturer’s declaration – electromagnetic emissions WT-1 is intended for being used in the electromagnetic environment specified below. The customers or users of WT-1 should assure that it is used in such an environment. Electromagnetic environment –...
- Page 12 Guidance and manufacturer’s declaration – electromagnetic immunity WT-1 is intended for being used in the electromagnetic environment specified below. The customers or users of WT-1 should assure that it is used in such environment. Compliance Immunity test GB9706 test level Electromagnetic environment –...
- Page 13 Guidance and manufacturer’s declaration – electromagnetic immunity Portable and mobile RF communications equipment should not be used closer than the recommended separation distance to any part of WT-1, including cables. The separation distance should be calculated from the corresponding formula of transmitter frequency.
-
Page 14: Statement
If the measured field strength in the location where WT-1 is used exceeds the applicable RF compliance level above, the WT-1 should be observed to verify normal operation. If abnormal performance is observed, additional measures may be necessary, such as reorienting or relocating the WT-1. -
Page 15: Warranty Card
5. Equipment damage caused by user's improper transportation, storage or other reasons is not covered by the warranty. 6. If the warranty card does not have the seal of Woodpecker or the seal is incomplete, the warranty card is invalid.
