8-Port
Fast Ethernet Switch
U
s
e
r
U
s
e
3. Package Contents
User Manual.
Power Adapter.
10/100 Fast Ethernet Switch.

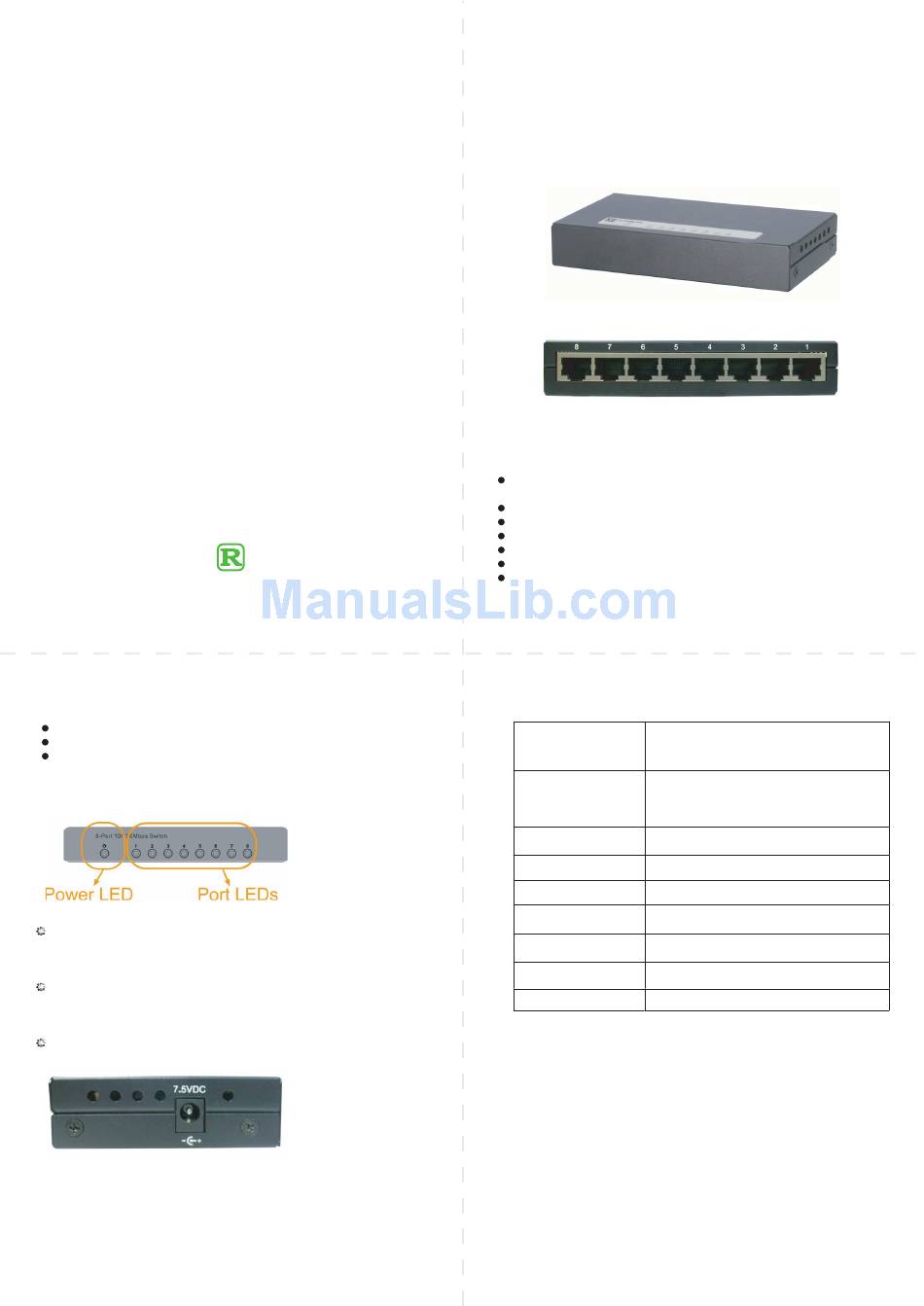

4. Hardware Introduction
POWER LED
This LED light is on when power is present.
8 Port LEDs
Indicates the status of each of the 8 ports.
DC-input
connect power adapter
'
s
G
u
i
d
e
r
'
s
G
u
i
d
e
3
1. Introduction
The 10BASE-T/100BASE-TX Switches which are high-performance Fast
Ethernet Switches designed for the network core. It provides 8
10BASE-T/100BASE-TX ports that can significantly improve the performance of
your network's backbone, and deliver the throughput needed to support a broad
range of advanced network applications. With Switches high performance
band-width, it provides the quickest solution to meeting the growing demands on
your network's limited resources.
2. Features
Complies with the IEEE 802.3 10Base-T Ethernet, IEEE 802.3u
100Base-TX Fast Ethernet and IEEE 802.3x Full-duplex flow control
All 10/100Mbps ports support auto-negotiation and auto-MDI/MDI-X
Provide wire speed store-and-forward switching
Support 1K MAC address
Provide port polarity detection and correction function
Automatic source address learning and aging
Optional maximum packet length 1536 & 1552 bytes
DOC.080109
5. Specifications
Standards
Data Transfer Rate
Interface
Diagnostic LED
Power Input
Dimension
Operating Temperature
Operating Humidity
EMI Certification
5. CE Mark Warning
This is a Class A product. In a domestic environment, this product may cause
radio interference, in which case the user may be required to take adequate
measures.
2
IEEE 802.3 10Base-T
IEEE 802.3u 100Base-TX
- Ethernet : 10Mbps (half-duplex)
20Mbps (full-duplex)
- Fast Ethernet : 100Mbps (half-duplex)
200Mbps (full-duplex)
8 x 10/100 Auto-MDI/MDI-X Ports
Power, Link / ACT
DC 7.5V / 0.5A
125 x 25 x 74mm
0°C ~ 50° C
5% ~90% RH, Non-condensing
CE/CISPR Class A
4
Need help?
Do you have a question about the 10BASE-T/100BASE-TX and is the answer not in the manual?
Questions and answers

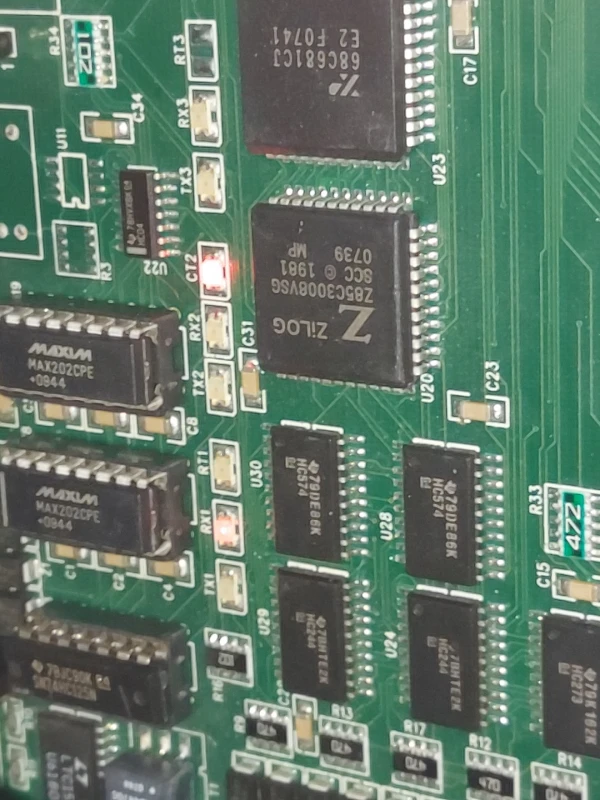

What CT2 light signify when solid red
