INSTALLATION INSTRUCTION FOR ATTIC LADDER

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LWS-P 22/47 and is the answer not in the manual?

Questions and answers

Related Manuals for fakro LWS-P 22/47

Summary of Contents for fakro LWS-P 22/47

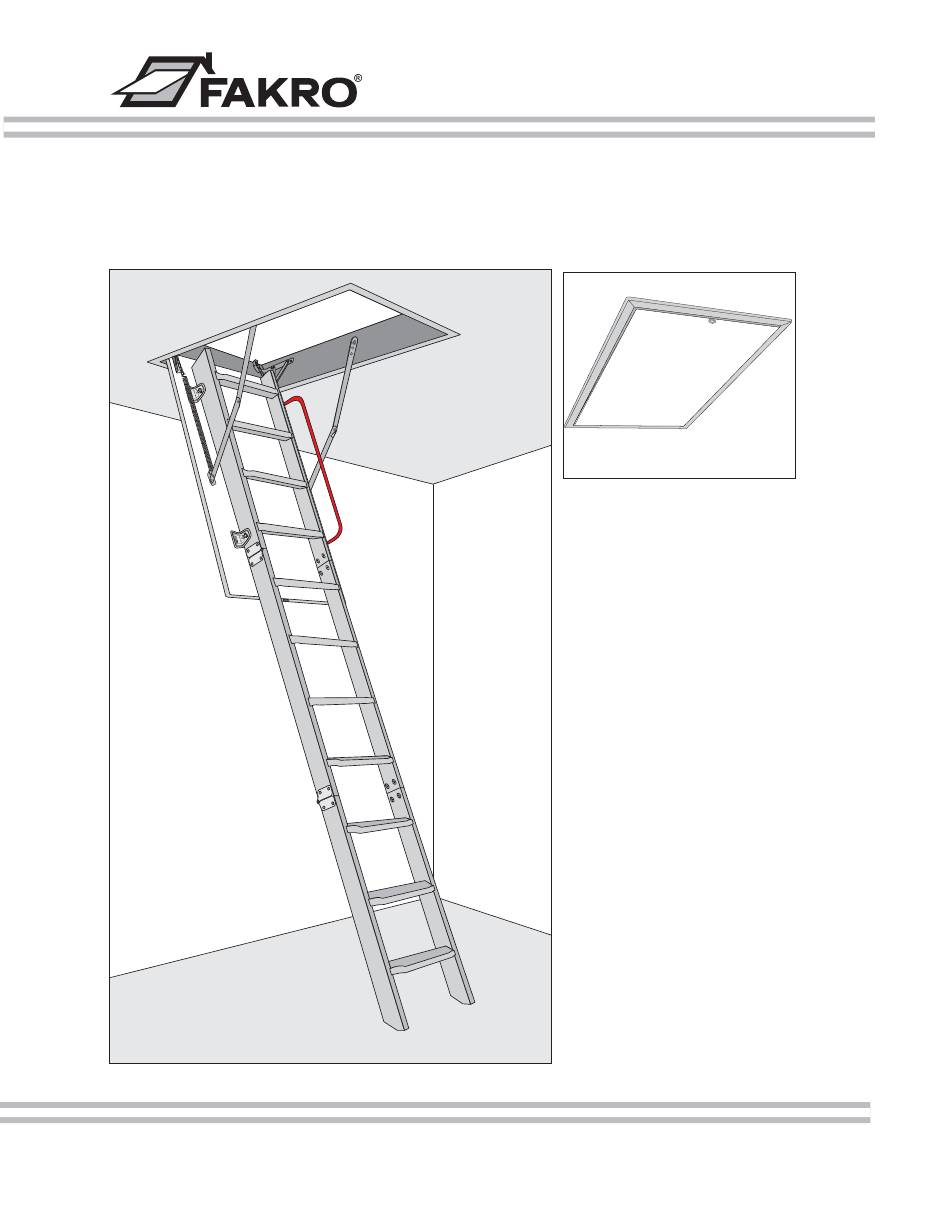

  • Page 1 INSTALLATION INSTRUCTION FOR ATTIC LADDER...
  • Page 2 INSTALLERS, CARPENTERS, CONTRACTORS - Read all warning notes. Warning notes contain important safety tips. - In order to assure safe use of the attic ladder, proceed according to the installation instruction. - The attic ladder is not safe to use, unless it is completely installed according to the following instructions.

  • Page 3: Table Of Contents

    Table of content Important issues to consider ........... . pages 2 - are you able to install attic ladder? .

  • Page 4: Important Issues To Consider

    I. IMPORTANT ISSUES TO CONSIDER Before you start any work read carefully all instructions, in order to make sure that you have a proper spot for installation and tools. rafter Are you able to install attic ladder? ceiling joist In order to install this attic ladder, you need to know how to cut wood and use framing square.

  • Page 5: Your Package Should Contain

    II. YOUR PACKAGE SHOULD CONTAIN: ó Attic ladder fully assembled and ready for installation. You should not dismantle assembled product for installation ó Control rod Prior to installation inspect the product for any cracks in the wood. Make sure that the metal elements are not damaged and securely fastened.

  • Page 6: Finding A Suitable Locations For Installation

    7 ďFraming the installation openingĒ page 7-9. MODEL If it is necessary to cut the ceiling joist proceed to step 6 ďCutting the ceiling joistsĒ page 6. LWS-P 22/47 67Ē 58Ē 7í4íí ų 8í10íí 7í4íí ų 8í10íí...

  • Page 7: Cutting A Hole In The Ceiling

    Ceiling opening size MODEL If there are no joists along or across the opening go to section 7 ď Framing the installation openingĒ pg. 7-9. LWS-P 22/47 22-1/2Ē x 47Ē LWS-P 25/47 25Ē x 47Ē If there are joists in the cut out opening proceed to section 6 LWS-P 22/54 22-1/2Ē...

  • Page 8: Cutting The Ceiling Joists

    VI. CUTTING THE CEILING JOISTS Before you begin installation spot You should now have the cut out hole in the appropriate spot. STEP 1 ceiling joist If the room has a ceiling in which you made the opening proceed to step 2. If there is no ceiling in place mark the joists according to instruction A or B, below.

  • Page 9: Framing The Installation Opening

    VII. FRAMING THE INSTALLATION OPENING Before you begin The distance between the joists should be the same as the width of installation opening. All cut joists must be attached to the joists that have not been cut. WARNING! For your own safety mind all dangerous elements above your head. Do not sit on the ceiling - it is not designed do carry load. Only joists will withstand load.

  • Page 10: Double Headers

    Double headers STEP 1 Measure the length of the header ďPĒ between uncut joists (Figure15). The measurement should be done perpendicular to the joists. STEP 2 Cut to size 4 headers. For that purpose use timber similar in size to existing joists. STEP 3 Position one header at the end of the cut out joist (Figure16).

  • Page 11: Installation Of Stringers

    STEP 1 MODEL X - distance between headers Using 4 nails or screws attach the temporary support board 1Ēx LWS-P 22/47 46-1/16Ē 4Ēx 36Ē where the hinged end of the ladder will be installed. This LWS-P 25/47 46-1/16Ē...

  • Page 12: Positioning The Attic Ladder

    IX. POSITIONING THE ATTIC LADDER Before you begin: You must have temporary support boards installed at both ends (Figure20) STEP 1 Take out the control rod (Figure21). Leave the control rod for the person working below the ceiling. STEP 2 One person must go in to the attic space while the other person stays below.
  • Page 13 X. SHIMMING, SQUARING AND NAILING THE ATTIC LADDER. Before you begin: The attic ladder should be resting on the temporary support boards. The lid should be openable but do not unfold legs of the attic ladder. Warning! Do not unfold legs of the attic ladder yet. Use of the attic ladder is not safe yet.
  • Page 14 XI. TRIMMING THE ATTIC LADDER LEGS Before you begin: The attic ladder should be properly shimmed and securely nailed to the frame in the proper location. Measure A and B WARNING! Use of the attic ladder is not safe yet. Do not unfold the attic ladder yet.
  • Page 15 STEP 5 Mark A and B Measure the ďAĒ and ďBĒ distance from the top edge of the bottom section of the attic ladder and mark it on both legs (Figure29). Note: Trim lines must be accurate in order to avoid trimming the legs too A will be shorter than B short.
  • Page 16 311 W. Laura Dr Addison, IL 60101, USA tel. (630) 543-1010 fax. (630) 543-1011 e-mail: sales@fakro.info www.fakro.info www.fakro.com “FAKRO” and the FAKRO logo are registered trademarks of FAKRO Group. All specifications are subject to change without prior notice. ©2003 FAKRO GROUP IMSS-USA-A4GB-09.04.2003/K...

This manual is also suitable for:

Lws-p 25/47Lws-p 22/54Lws-p 25/54
