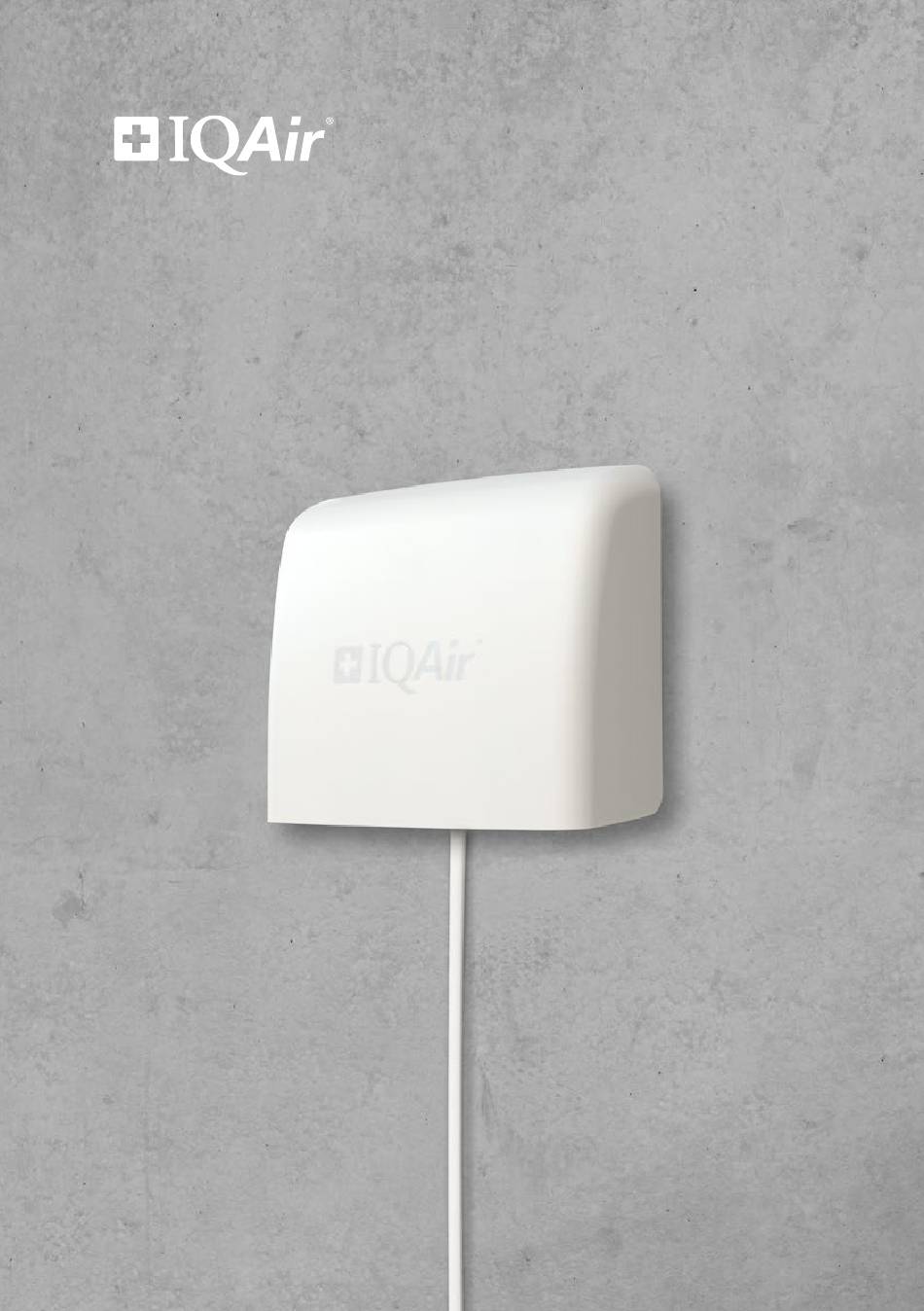

- Page 1 AirVisual Outdoor ® Community Air Quality Monitor User Manual...
- Page 2 Introduction Download the app and connect your AirVisual Outdoor by scannning the QR code: QR code can be found on the back side of the device or in the included User Manual Packaging contents In the box you will find: 1x Air quality monitor with pre-installed sensor modules 1x Mounting plate 2x Screws &...
-
Page 3: Table Of Contents
Table of Contents Important safety instructions .......1-4 Component overview ..........5 Setup and configuration ........6-7 Download the IQAir AirVisual app .......7 Connecting to the IQAir cloud platform ....8 Installation ............9-10 Sensor replacement ...........11 Warranty and support .........12 Join the air quality community......12... -
Page 4: Important Safety Instructions
The the system. AirVisual Outdoor is splash • If the AirVisual Outdoor is out resistant from top, front, and of reach, the power adapter back. Direct injection of water should be positioned to allow it into the device is likely to to be easily unplugged. - Page 5 Important safety instructions the supplied power adapter and LASER SAFETY cables. There are no outputs • AirVisual Outdoor sensor available from the AirVisual modules are Class 1 laser- Outdoor. based instruments. • The supplied power adapter is • During normal operation, you rated to operate between -10°C...
- Page 6 • Connect the equipment into an outlet on a circuit different from that to The compliance statements on the which the receiver is connected. AirVisual Outdoor can be found under • Consult the seller or an experienced the mounting plate. radio/TV technician for help.
- Page 7 Important safety instructions ISEDC RSS Warning responsible for compliance could void the user’s authority to operate the This device complies with ISEDC equipment. license-exempt RSS standard(s). Operation is subject to the following Tout changement ou modification non two conditions: (1) this device may not expressément approuvé...
-
Page 8: Component Overview
5. Temperature & humidity sensor 10. Mounting plate with mounting hook AirVisual Outdoor LED indicator Blue = Connected to the IQAir cloud platform Red = Not connected to cloud or network Red, blinking = Resetting / updating / self-testing Green = Wi-Fi setup, Wi-Fi hotspot paired... -
Page 9: Setup And Configuration
PoE can power through. the AirVisual Outdoor up to a distance up of 80 m / 262 ft. Use a shielded CAT7 UV resistant Ethernet cable. When initially connected to power,... -
Page 10: Download The Iqair Airvisual App
IQAir data cloud • Do you have a reliable Wi-Fi signal where current and historic air quality at the installation location? This data may be viewed on the IQAir would make a Wi-Fi connection AirVisual mobile app or on the IQAir suitable. -
Page 11: Connecting To The Iqair Cloud Platform
PoE power adapter to the Ethernet port of the AirVisual Outdoor. Wi-Fi connection: Use the AirVisual app to configure the AirVisual Outdoor to connect to your Wi-Fi network. Open the device settings and select Wi-Fi as connection type. To set the... -
Page 12: Installation
After successful network configuration, the device is now ready to be mounted in a suitable location. Configure your AirVisual Outdoor and confirm that it is connected to the Internet and IQAir cloud platform (blue LED) before starting the installation. Prepare for installation... - Page 13 Once the mounting plate is installed, attach the AirVisual Outdoor by aligning the lower bracket on the mounting plate with the bottom slot on the back of the device. Tighten the hex screw. Attach the AirVisual Outdoor onto the mounting plate...
-
Page 14: Sensor Replacement
PM1, PM2.5 and PM10. In its standard configuration, the AirVisual Outdoor is supplied with two PM sensor modules. The lifetime of the PM sensor is up to 5 years in average PM2.5 concentrations below 25 µg/m3. -
Page 15: Warranty And Support
IQAir reports data from thousands of ground level monitoring stations around the world. Yet, many places still lack local air quality information. With the purchase of an AirVisual Outdoor monitor, you are only a few simple clicks away from becoming an official air quality monitoring station and contribute your data to global air pollution knowledge. - Page 16 If you have any questions, please contact us at iqair.com/contact | IQAir AG, Switzerland...
Need help?
Do you have a question about the AirVisual Outdoor and is the answer not in the manual?
Questions and answers
Dear madam , sir . I like to connect my iqair outdoor monitor with my WiFi signal available from the house . How I do that since the device has no display ? Regards Maarten Bos, Hua Hin , Thailand
To connect the IQAir AirVisual Outdoor monitor to a Wi-Fi network without a display, follow these steps:
1. Install the AirVisual App: Download and install the IQAir AirVisual App on your smartphone from the Apple App Store or Google Play Store.
2. Log in: Open the app and log in to your AirVisual account.
3. Add the Device: Follow the on-screen steps in the app to add your AirVisual Outdoor monitor.
4. Wi-Fi Setup: The app will guide you through the Wi-Fi setup process.
5. Complete Connection: Once configured, the device should connect to the IQAir cloud automatically.
For Ethernet or USB 4G modem connections, the device should establish a connection automatically without requiring app setup.
