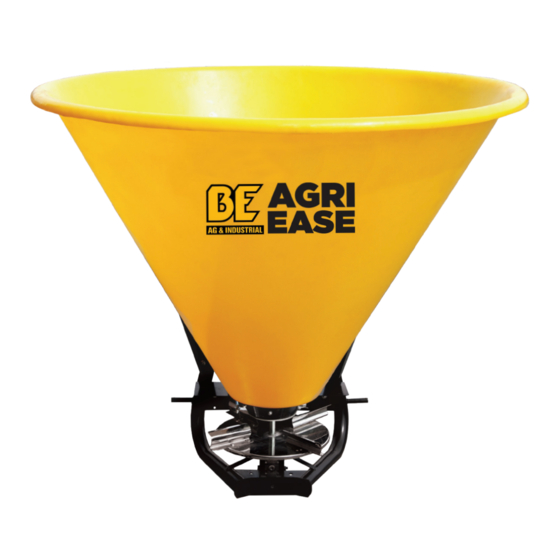

- Page 1 3PT SPIN SPREADER BE-PFSXXXG OPERATIONS & PARTS MANUAL FOR MODELS: • BE-PFS250G • BE-PFS400G • BE-PFS500G PURCHASE DATE MODEL NO. SERIAL NUMBER DEALER...
- Page 2 TABLE OF CONTENTS GENERAL INORMATION SAFETY INSTRUCTIONS MAINTENANCE SPREADING CHARTS EXPLODED VIEW & PARTS LIST...
- Page 3 TO THE OWNER ATTENTION! Read instruction manual and make sure all operators are knowledgeable on correct operation of equipment and familiar with Safety Rules of Operation. • Never allow riders on equipment. • When operating on rough or uneven terrain, use extreme caution and a safe operating speed.
- Page 4 SAFETY INFORMATION Working with unfamiliar equipment can lead to careless injuries. Read this manual, and the manual for your tractor, before assembly or operating, to acquaint yourself with the machine. It is the equipment owner’s responsibility, if this equipment is used by any person other than yourself, is loaned or rented, to make certain that the operator, prior to operating: •...
- Page 5 INSTRUCTIONS TRACTOR REQUIREMENTS & PREPARATION The 3PT mounted seeder/spreader with a PTO drive will fit most Category I and some larger Category 0 tractors. Larger Category II tractors may also be used if the 3PT hitch lift arms will narrow to 26 inches. Bushings will be needed to fit the category I (7/8”...
- Page 6 Measure the distance between the ends of the two shafts (Dimension “A”, Figure 1). Each half of PTO should be equal to Dimension “A” minus two inches (2”). If the driveline must be cut to a shorter length, clamp the driveline in a well-padded vise to prevent damage to the shield (Figure 3).
- Page 7 Fertilizers will vary as to weight and quality which may require additional adjustment by moving the individual fan blades. Moving the blade tips forward will carry more material to the left side. Moving the fan blade tips back will allow more material to be spread to the right. Make small adjustment moves and check spread after each adjustment.
- Page 8 SPREADING INSTRUCTIONS The opening in the hopper bottom is regulated by the control handle. The size of the opening is determined by the calibrated scale. Place the control lever at the desired setting. The spread chart in this manual is an approximate guide based on various forward speeds (from 4 mph to 7.5 mph).
- Page 9 MAINTENANCE The hopper should be washed after use, especially after use with corrosive material such as fertilizer, salt or ice melting compounds. When dry, oil thoroughly. The gearbox is filled with lubricant and sealed at the factory. If operated and stored properly, the gearbox will provide a long, trouble-free service life.
- Page 10 SPREADING CHART FOR FERTILIZERS QUANTITY TO BE SPEAD, IN POUNDS PER ACRE AT CONTROL SPREAD TRACTOR LEVEL SETTING INDICATED FERTILIZRE TYRE SPEED WIDTH SPEED (RPM) IN FEET (MPH) Coarse Grain Fertilizrs Medium Grain Fertilizers Fine Grain Fertilizers 540 1052 1242 Ammonium Nitrate 1004 1171...
- Page 11 SPREADING CHART FOR SEED BE-PFSxxxG SPREADING CHART FOR SEED NOTE: Spread Chart settings are approximate - always make trial run to check actual NOTE: Spread Chart settings are approximate - always make trial run to check actual application rate. application rate. NOTE: Material can vary as to density, foreign material content, particle size and shape.
- Page 12 EXPLODED VIEW & PARTS LIST BE-PFSxxxG USER MANUAL...
- Page 13 REF DESCRIPTION REF DESCRIPTION Frame Washer, Flat 8mm, Zinc Bolt, Hex Head M10x20, Zinc Washer, Lock 8mm, Zinc Washer, Flat, 10mm, Zinc Nut, Hex M8, Zinc Hair Pin Seed Disc, Upper (2 holes) Rod, Flow Adjustment 30 Distribution Disc, Lower (3 holes) Lever, Adjustment Bolt, Hex Head M8x16, Zinc Spring, Pressure...
- Page 14 B RA B E R EQ .CO M WGSALES@BRABEREQ.COM PHONE: 604-850-7770 FAX: 604-850-7774 TOLL FREE PHONE: 1-877-588-3311 TOLL FREE FAX: 1-800-665-7334 BE-PFSxxxG USER MANUAL...
