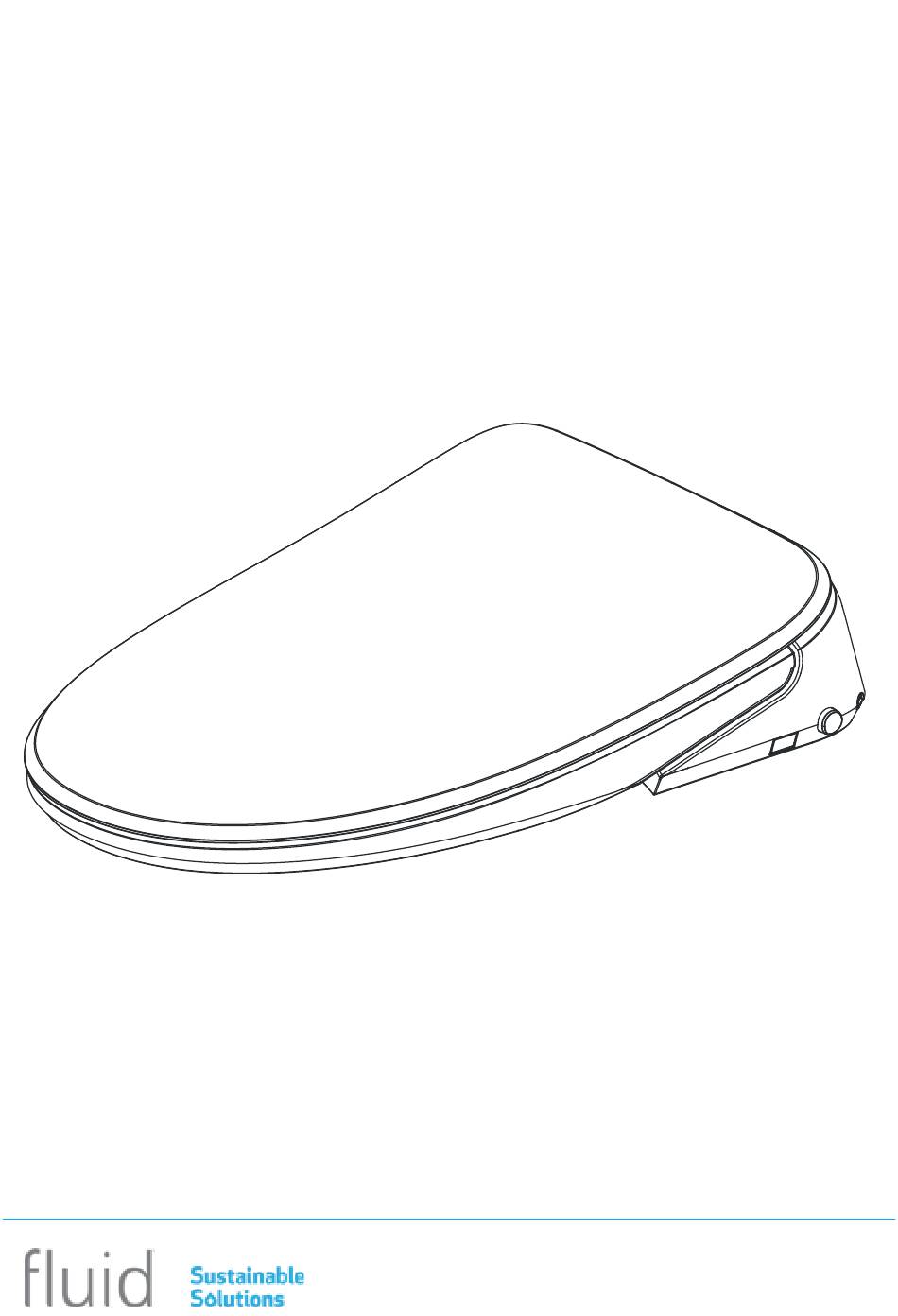

- Page 1 fluid bidet seat Product Handbook & Instructions B I D1000W...
-
Page 2: Table Of Contents
Content 1. Important Safeguards and Instructions 01-02 2. Components Name 3. Main Unit Knob Instructions 4. Main Unit Side Button Instructions 5. Technical Specification 6. Packing List 7. Product Installation Size and Preparation Tool 8. Installation of Main Unit Installation of Baseplate Installation of Main Unit and Disassembly of Main Unit Installation of Water Inlet Pipe 9. -
Page 3: Important Safeguards And Instructions
Important Safeguards When using electrical products, especially when children are present, basic safety precautions should always be followed, including the following: 1. The appliance is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction. 2. - Page 4 Important Safety Instructions CA U TION – Failure to follow the instructions may cause body injury or property damage. 1. Do not install or use the product in wet places as steam room etc. 2. It is recommended to use water-proof electrical outlet which should be lnstalled in the place where is not easily got wet.
-
Page 5: Components Name
Components Name Release button Leakage protection plug Infrared receiver Buffer Power cord Water supply pipe Nozzle baffle Drying Seat baffle Nozzle Rear cleaning Front cleaning The remote control Whole set of product... -
Page 6: Main Unit Knob Instructions
Main Unit Knob Instructions (Knob Applies) Back Front 1. When people is seated, turn Rear Cleaning Knob forward to start rear Rear cleaning function; Rear cleaning → Drying →Stop drying automatically. Cleaning 2. During rear cleaning, turn the knob forward, the washing position moves Knob forward, otherwise, the washing position moves backward. -
Page 7: Main Unit Side Button Instructions
Technical Specification Rated voltage 110-120V，50/60Hz Rated power 960W Main Unit Water pressure The minimum necessary pressure 0.08MPa (hydrostatic pressure), range the maximum water pressure 0.8MPa (hydrostatic pressure) Power Cord Length is about 1.2m Heating power 1400W(120V) Water 6-level water temperature adjustment temperature Water volume 5-level adjustment... -
Page 8: Packing List
Packing List Remote control 1 Remote control Remote Expansion The remote control 2. Remote screws (2) control rack control rack assembly 3. Expansion screws (2) Screws 1. Base plate Fixed piece 2. Screws (2) Base plate Floor assembly 3. Fixed piece (2) Expansion nut 4. -
Page 9: Product Installation Size And Preparation Tool
Product Size and Installation Preparation Tool 130-190mm 403mm 380mm Phillips screwdriver Wrench Tape measure * Tips: Please confirm this seat fitting your current toilet. Installation of Main Unit * This product has been tested for water flow before leaving the factory. There may be a small amount of residual water dripping out when removing the product, which is not a malfunction. -
Page 10: Installation Of Main Unit And Disassembly Of Main Unit
Installation of Water inlet pipe and Tee joint Please select the appropriate installation method according to your actual situation Method 1 Connect to Water supply pipe Current toilet water supply pipe Connect to main unit Tee Joint Connect to the Water Inlet pipe angle valve Angle Valve... -
Page 11: Preparation For Start-Up
Preparation for Start-Up 1. Turn on the angle valve Check the tightness of the threaded connection to ensure that there is no water leakage. Turn the angle valve counterclockwise to adjust the opening to the maximum. (Tips: when the valve is opened for the first time, the angle valve handle has a large torque) Angle valve 2. -
Page 12: Daily Maintenance
Daily Maintenance Maintenance of Main Unit 1. Turn off the power during maintenance of this machine. 2. Wipe the dirty area with a soft cloth that is wrung out of water. 3. After wiping, please turn on the power again. Neutral cleaner Tips: Do not rinse the surface of the product directly with water during maintenance. -
Page 13: Self-Cleaning Waterway Maintenance
Filter cleaning for pressure-maintaining valve 1. Close angle valve. 2. Pull out the power plug and cut off the power. 3. Disassemble the cover and unscrew the filter connector with a screwdriver. 4. Take out the filter assembly with nipper pliers. 5. -
Page 14: Removal And Installation Of Clamp
Removal and Installation of Clamp Removal: Open the clamp cover, Installation: Install the b. The clamp is rotated until the rotate it counterclockwise, and quick-released connector of opening faces down. use a flat-blade screwdriver to water inlet pipe into the main unit, c. -
Page 15: Troubleshooting Guide
Troubleshooting Guide Problem Cause Solution Water inlet hose bent to cause Solve the problem of bending of blocking water inlet hose No Water Inlet valve is off Turn on the inlet valve from Nozzle Connect water supply and wait for Water supply is cut off the water Water inlet hose bent to cause... - Page 17 Product Limited Warranty Model No. Customer Name: Seller: Purchasing Date: Invoice No. Customer Contact: Distributer Distributer Phone: Stamp: Thank you for choosing our product. This product is warranted for three (3) years since the purchasing date for free repair of problems arising our of defects in workmanship while using in accordance with installation manual and usage indications for intended purposes.
