Cisco Catalyst
Figure 1

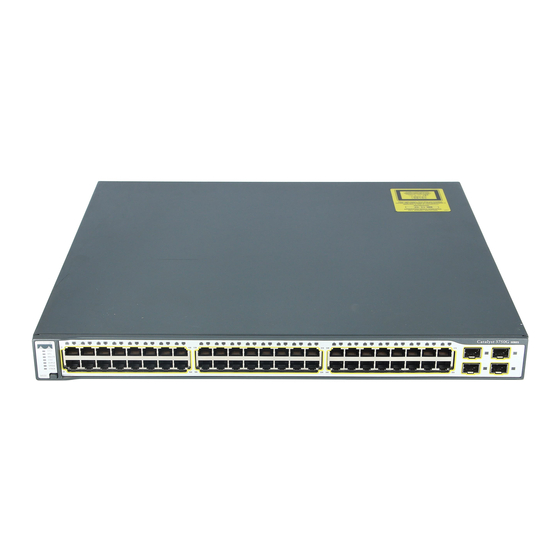

Cisco Catalyst 3750
Series Switches for 10/
100 and 10/100/1000
access and aggregation
