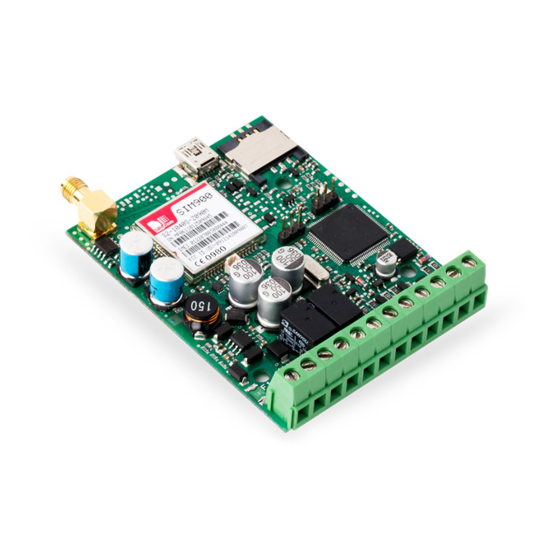

Eldes ESIM252 User Manual

Gsm control system
Hide thumbs Also See for ESIM252:
Table of Contents

Advertisement

Quick Links

Download this manual
GSM CONTROL SYSTEM
ESIM252

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ESIM252 and is the answer not in the manual?

Questions and answers

Related Manuals for Eldes ESIM252

Summary of Contents for Eldes ESIM252

  • Page 1 GSM CONTROL SYSTEM ESIM252...
  • Page 2 Copyright © “ELDES UAB”, 2009. All rights reserved. It is strictly forbidden to copy and distribute information in this document or pass to a third party without an advanced written authorization from “ELDES UAB”. “ELDES UAB” reserves the right to update or modify this document and/or related products without a warning. Hereby, ELDES UAB declares that this GSM CONTROL SYSTEM Esim252 is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.

  • Page 3: Table Of Contents

    1. General Information “ELDES UAB” will not take any responsibility regar- ding personal, property or revenue loss while using 1.1 Function .......................4 the system.

  • Page 4: The System

    When using audio feature in case of input alarm or restore event the user will be able to listen to particular sound record uploaded to the ESIM252 device memory. After the end of the sound record, the system activates the microphone for listening on what is happening in the secured premises.

  • Page 5: Technical Specifications

    RELAY2 Dry relay contact. Normally open (NO) Common pin “Low” level input Z5 AC/DC RELAY1 RELAY2 COM Z5 Z4 Z3 Z2 Z1 “Low“ level input Z4 “Low” level input Z3 “High” level input Z2 Picture 1 “Low” level input Z1 USER MANUAL ELDES ESIM252 V1.0...

  • Page 6: Connection Circuit

    When choosing GSM cellular provider, it is worth inquiring whether the service is used in security application assuring fast and reliable SMS message delivery and phone call connection. Esim252 and alarm system COM must be connected. Inputs Z1, Z3, Z4, Z5 are connected to alarm system outputs if outputs are implemented as open collector circuit or any other circuit and if it commutes with COM.

  • Page 7: System Installation

    AUX output is used. 4. When AC power supply (ground transformer) is used connect according to circuit no. 3. In this case you do not need to con- nect any other power supplies. 5. The system will start in less than a minute. LED2 indicator should be blinking or be ON indicating connection to GSM. USER MANUAL ELDES ESIM252 V1.0...

  • Page 8: System Pre-Operation And The Main Control Commands

    Otherwise check for network connection and call Esim252 system from your mobile and wait until the system drops the call. You should get an SMS message asking to change default password. Otherwise check for network connection and change SMS central number.

  • Page 9: User Numbers

    2.3 User Numbers The system Esim252 allows to pre-program up to five different mobile numbers which will have access to and control the system. NR1 is mandatory while others can be skipped. All numbers must be entered starting with international country code, e. g. national code for Lithuania is 370, UK –...

  • Page 10: Additional System Capabilities

    3. Additional System Capabilities 3.1 Renaming Input Alarm/Restore Texts & Оutput Нames Manufacturer initially set the following input alarm/restore texts and output names: input Z1 alarm text - Zone1 Alarm, restore text - Restore1; input Z2 - Zone2 Alarm, restore text - Restore2; 0 input Z3 - Zone3 Alarm, restore text - Restore3; input Z4 - Zone4 Alarm, restore text - Restore4; input Z5 - Zone5 Alarm, restore text - Restore5; output C1 name - Controller1; output C2 name - Controller2 E. g. in case input Z1 is violated, the system sends SMS message with the text: Zone1 Input alarm text Input alarm text is changed by sending the following SMS mesaage: XXXX_Z1:NewAlarmText;Z2:NewAlarmText;Z3:NewAlarmText;Z4:NewAlarmText;Z5:NewAlarmText;...

  • Page 11: Info On Status Sms

    3.3 Info on Status SMS The system ESIM252 can any time be inquired about signal strength and the status of inputs at the time when SMS message is sent. At the same time system test is performed. If the answer to the request has been received, it means the system finely operates.

  • Page 12: Remote Microphone Listening

    2 - C2. Instead of C1 or C2 it is also possible to use real output name. E.g.. XXXX_PUMP:ON Timer GSM control system ESIM252 has internal timer. This feature allows any output to be turned on or off for a specified time period. The following SMS command should be sent: XXXX_Cx:ON/OFF:vv.mm.ss x - output number; possible values 1 - C1 or 2 - C2.

  • Page 13: Calling All Users

    3.8 Calling all users During the alarm, Esim252 system starts calling NR1. If the call to NR1 was unsuccessful or the subscriber was out of network co- verage the call is forwarded to NR2 etc. If the user rejected the call or answered te call during the alarm the system stops calling.

  • Page 14: Configuration For Advanced Users

    F O R A D VA N C E D U S E R S All these features can be configured using program “ELDES Configuration Tool“ E. g. 1 The user wants to connect Esim252 system to an existing alarm in a building where enterprise A and and enterprise B work. Both enterprises use the same alarm system that has two inputs. The alarm system has 5 outputs PGM.
  • Page 15 F O R A D VA N C E D U S E R S All these features can be configured using program “ELDES Configuration Tool“ Task NO2: Configuring the system so that the janitor (NO3) is notified by by SMS messa g e and call about the violated PIR movement sensor‘s input in the secured area; and when the sensor‘s input is restored, the janitor receives SMS message only.
  • Page 16 F O R A D VA N C E D U S E R S All these features can be configured using program “ELDES Configuration Tool“ E. g. 1 The user wants to connect ESIM252 system to an existing alarm system in a building where enterprise A and enterprise B work. Both enterprises use the same alarm system unit that has 2 inputs and 5 outputs PGM.
  • Page 17 F O R A D VA N C E D U S E R S All these features can be configured using program “ELDES Configuration Tool“ Task NO4: Configuring the system so that the intrusion to enterprise B premises is reported to the janitor (NO3) and enterprise B employee (NO5) by SMS messages and calls, and the director of enterprise B (NO2) receives SMS message only. Enterprise B employee (NO5) must receive the phone call even in the case when the janitor (NR3) answers the call. Director A Enterprise A Enterprise B Director B Alarm system...
  • Page 18 NO2-NO5 and left enabled for NO1 only. a) First of all alarm system unit must be programmed in the way so that when security sensors are violated the signal must be transmitted to alarm system system unit output PGM. b) Output PGM is connected to ESIM252 input Z1 c) The following two configuration SMS messages must be sent to Esim252 system: XXXX_SMSALL:ON where SMSALL enables mandatory SMS message delivery for all users. XXXX_SMSEXTRA:Z1:SC345,CC2345 Where SC345 means that alarm SMS message sending is disabled for users NO3, NO4 and NO5 after input Z1 is violated.
  • Page 19 Call Back feature must be enabled for user NO5 and it is necessary to choose the length parameters for that call. Also, confirmation SMS messages have to be enabled for user NO3. a) First of all Esim252 system relay output has to be connected to the connectors of gate control unit. b) The following configuration SMS message must be sent to Esim252 system: XXXX_SMSEXTRA:COC1:CE1345,CS5,CT513,SS3,MS10,MS30,MS40,MS50,MS1T0.0.1,MS3T0.0.1,MS4T0.0.1,MS5T0.0.1 where COC1 means C1 output control by call is enabled for users NO1, NO3-NO5.
  • Page 20 F O R A D VA N C E D U S E R S All these features can be configured using program “ELDES Configuration Tool“ E. g. 3. The user wants to connect Esim252 system to the heating system of the house. Task No1: Configuring the system so that house heating system is turned on and turned off by the user (NO1) via free call. This user should also receive free information about successful turning on or turning off of the heating system.
  • Page 21 F O R A D VA N C E D U S E R S All these features can be configured using program “ELDES Configuration Tool“ Task No2: Configuring the system so that users (NO1) and (NO2) receive SMS message about a burst water pipe (flood) at home. SMS mes- sages must be delivered to both users. Flood detector User Heating...
  • Page 22 SMS message, it is necessary to remove users NO2 and NO3 and disable alarm calls for all users. It is also necessary to invert Esim252 input from NO to NC mode so that alarm is given only when the signal disappears.
  • Page 23 F O R A D VA N C E D U S E R S All these features can be configured using program “ELDES Configuration Tool“ Task No2: Configuring the system so that the operating personnel member (NO2) receives SMS message if the pump‘s input was violated for 10 times. Pump Worker Gas boiler Alarm ESIM151 Worker Worker Automatic...
  • Page 24 The company taking care of automatic systems needs to have information about critical breakdowns of mechanisms and has to quickly react and eliminate the breakdown. There are three members of operating personnel (NO1), (NO2) and (NO3). Task No3: Configuring the system so that operating personnel members (NO1), (NO2) and (NO3) can reboot the “ hanged” automatic control system without going to the object but via a short call to Esim252 system. Pump Worker Gas boiler...

  • Page 25: Additional Possibilities Of Configuring Zones (Inputs) Alarm And Restore

    F O R A D VA N C E D U S E R S All these features can be configured using program “ELDES Configuration Tool“ 3.9.1 Additional possibilities of configuring input alarm and restore During the alarm the system calls and sends SMS messages to all preset users until the first successful SMS delivery or a call rejected by the user.
  • Page 26 F O R A D VA N C E D U S E R S All these features can be configured using program “ELDES Configuration Tool“ ATTENTION! Value fields are separated by commas. Maximum SMS length is 160 characters. Only one input parameter can be configured by one SMS message. Examples of using SMSEXTRA command. Suppose in all cases initial parameters were not changed and are manufacturer default.

  • Page 27: Additional Possibilities Of Controlling And Configuring Controller C1 (Relay Output)

    C1/C2 outputs can be controlled by a call. It can be controlled by all users NO1-NO5, several users or only one of them. By calling the system you can enable these 3 functions: enable/disable, enable/disable for a certain period or change output status with every call, i. e. one call enables the status, the next one disables it etc. The parameters are changed by sending the following SMS message to the system Esim252: XXXX_SMSEXTRA:COCx:Value1,Value2,……,ValueN XXXX – user password. COCx - output control by call; value can be COC1 (C1 output) or COC2 (C2 output). ValueN structure is CnVal, when Cn is command name ((2 letters), and Val-its value).

  • Page 28: Settings Of The Output Controlled By Sms Messages

    Value structure will have no value. This does not apply to MS and CT commands. When requesting MS and CT parameters MS and CT must be followed by one character – user number (1,2,3,4 or 5).: XXXX_SMSEXTRA:COCx:Value1,Value2,……,ValueN XXXX – user password. COCx - output control by call; value can be COC1 (C1 output) or COC2 (C2 output). ValueN structure is CnVal, when Cn is command name ((2 letters). This does not apply to MS and CT commands. When requesting MS and CT parameters MS and CT must be followed by one character – user number (1,2,3,4 or 5). E. g. XXXX_SMSEXTRA:COC1:CE,CS,MS1,MS3 3.9.2.2 Settings of the output controlled by SMS messages This chapter describes the ways of informing users when they are trying to open/close the relay output (-s) via SMS messages des- cribed in chapter 3.6. Parameters are changed by sending the following SMS message to system ESIM252: XXXX_SMSEXTRA:OCSx:Value1,Value2,……,ValueN XXXX – user password. OCSx - output control by SMS; value can be OCS1 (C1 output) or OCS2 (C2 output). Value structure is CnVal, where Cn is command name (2 letters), and Val-its value (digits without spaces or punctuation marks).
  • Page 29 F O R A D VA N C E D U S E R S All these features can be configured using program “ELDES Configuration Tool“ Value (CnVal) – table of values Val – possible Cn – command Initial factory...

  • Page 30: Output Control Settings By Event Time

    3.9.2.3 Output ontrol settings by event time This chapter describes a possibility to control C1 and C2 outputs using timetable (scheduler). It can be, for instance, atomatic tur- ning on every day at 18:00 and turning off after 5 hours. The parameters are changed by sending the following SMS message to the system Esim252: XXXX_SMSEXTRA:OCTEx:Value1,Value2,……,ValueN XXXX – user password. OCTEx - output control by event time; value can be OCTE1 (C1 output) or OCTE2 (C2 output). Value structure is CnVal, when Cn is command name (2 letters), and Val-its value. Value (CnVal) – table of values Val –...
  • Page 31 F O R A D VA N C E D U S E R S All these features can be configured using program “ELDES Configuration Tool“ The first digit is a command; the last digit refers to The user receives call time in seconds.

  • Page 32: Appendix

    • parameters restored to default ELDES Configuration Tool Software To configure the system quicker and easier as well as use more system capabilities use configuration software ELDES Configura tion Tool which can be downloaded from our website www.eldes.lt Before configuring ESIM252 via USB cable or remote configuration over GPRS, please, read ELDES Configuration Tool user guide available in HELP section of the software.
  • Page 33 USER MANUAL ELDES ESIM252 V1.0...
  • Page 34 For notes...
  • Page 35 For notes USER MANUAL ELDES ESIM252 V1.0...
  • Page 36 Made in Lithuania. www.eldes.lt...
