- Page 1 MX1100-B GSM SMS POWER FAILURE ALARM DEVICE USER MANUAL MX1100-B-rev1.00-1021 ERBAŞ TEKNOLOJİ www.erbasteknoloji.com Innovative Solutions Erbas Teknoloji - Reporter MX1100-B User Manual...
-
Page 2: Battery Life
- Manufacturer does not guarantee battery life of the device operation. LIMITED LIABILITY - The buyer must agree that Reporter devices will reduce the risk of theft, burglary, fire or other dangers and controls remote devices but do not guarantee any operation against such events. -
Page 3: Use Cases

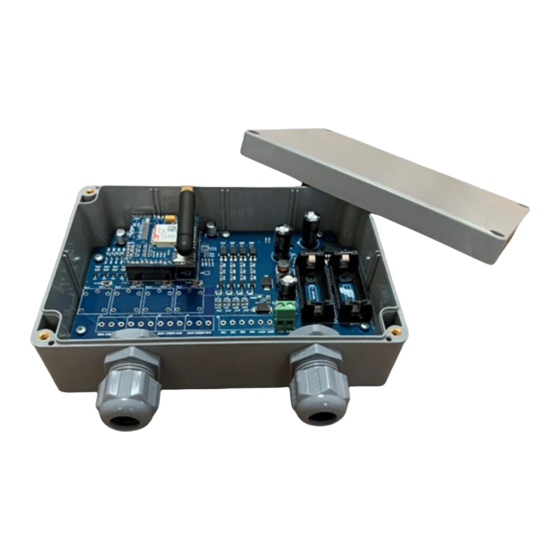

1. DESCRIPTION Reporter MX1100-B is a user friendly and a reliable device which sends you SMS text messages and calls you in case power failure & restorations and periodically sends heartbeat messages. It includes a lot of useful features like; detailed instant STATUS query, configurable SMS text messages, user defined heartbeat periods, alarm call enable/disable, add/delete admins via SMS, LED indicators, replaceable antenna and batteries, IP67 water &... -
Page 4: Installation
Point Wall Mount screwing holes (shown below) to the wall Drill the wall from pointed places Insert fixing plugs into the drilled points Screw in the wall mount screws from the screwing points of the device Erbas Teknoloji - Reporter MX1100-B User Manual... -
Page 5: Getting Started
Send an SMS to a mobile number for testing Call a mobile phone number for testing After above steps completed, open the screws. And insert SIM card into the device, by pushing it as shown in below figure. Erbas Teknoloji - Reporter MX1100-B User Manual... -
Page 6: Device Configuration
Get Device Status Info STATUS ADMIN Restore Factory Settings RESET ADMIN SMS message format is: Password<space>Command1<space>Command2<space>Command3…… Examples: 1111 ADDA:+901234567890 // Adds an Admin 1111 PASS:4567 CALL:ON // Changes password to 4567 & activates calls Erbas Teknoloji - Reporter MX1100-B User Manual... - Page 7 Record Not Found! Process Failed // nr does not exist 5.4. Alert Calls Activate / Deactivate Alert Call feature is used if you need a Phone Call to warn you after you receive alert SMS. Erbas Teknoloji - Reporter MX1100-B User Manual...
- Page 8 You may want to see device status automatically under some periods and make sure everything is working properly. Reporter’s Heartbeat (or keep alive) feature makes this happen. As a factory default it is set to 0 hours (which means function is disabled). You may set this between 0…999 Hours (more than 40 days!).
- Page 9 // format is wrong 6. CHECK DEVICE STATUS (STATUS QUERY) Anytime, while device is external powered, you may send a Status Query SMS to Reporter. It will reply to you with detailed current I/O status, some settings and GSM signal level information.
-
Page 10: Troubleshooting
Sometimes SMS messages are or your own mobile phone’s delivered after some period of its location. sent, caused by GSM operators. Low credit on prepaid card Check your credit (if prepaid cards used). Erbas Teknoloji - Reporter MX1100-B User Manual... -
Page 11: Technical Specifications
170 x 120 x 55 mm IP Water & Dust • IP67 Protection • 1 x MX1100-B GSM Power Failure Alarm Device Package Content • 1 x User Manual • 4 x Fixing Screws & Fixing Plugs Erbas Teknoloji - Reporter MX1100-B User Manual... - Page 12 NOTES Device Phone Number Admin Numbers Made in Türkiye Erbas Teknoloji - Reporter MX1100-B User Manual...
