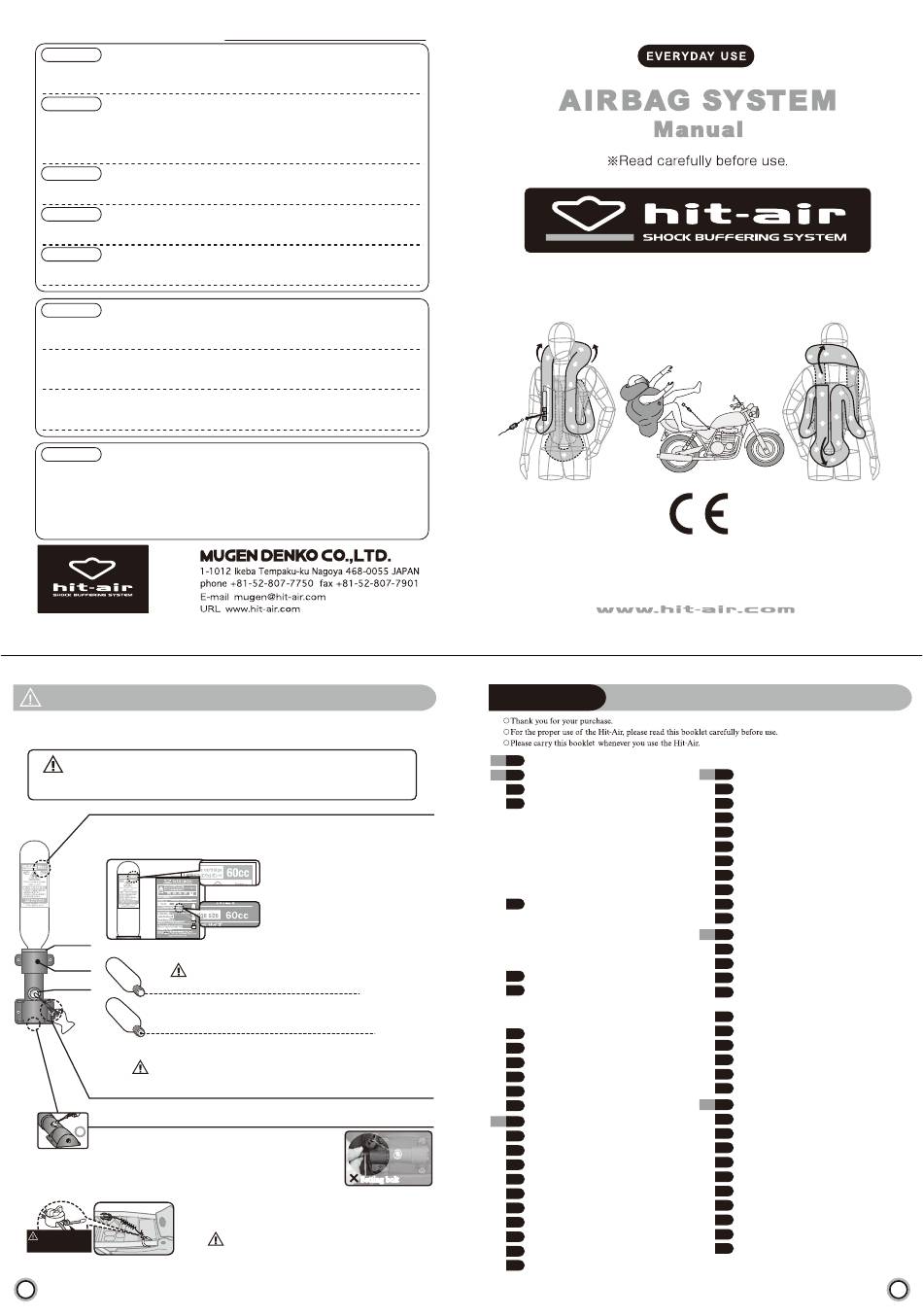

Be sure to read this page before using and after re-assembling the Hit-Air.
Safety Prcautions
Thank you for using the Hit-Air.
For your safety, peace of mind and correct use of your airbag jacket, make sure that
❶ ❹
items - are confirmed before use as follows:
○Unless the Hit-Air is set correctly, it may not work or may cause a malfunction.
○Once a Hit-Air CO2 gas cartridge is activated, it cannot be used again.
CAUTION
Remove it from the key box without fail.
○Use a Hit-Air CO2 gas cartridge only. Do not use any other one.
❶
A Hit-Air CO2 gas cartridge of the right size (capacity) for the model is installed.
The sticker attached to the cartridge shows its size (capacity).
The size (capacity) of the cartridge varies from model to model.
Make sure that the size(capacity) shown on the sticker attached to the Hit-Air CO2 gas
cartridge and that shown on the hit-air are the same.
❷
Cap
Make sure that an unused cartridge is installed straight and firmly.
○If there is no hole - it is an unused cartridge to be installed in the key box for use.
Key Box
If a Hit-Air CO2 gas cartridge is screwed into the key box loosely, it may
CAUTION
cause a malfunction. (See "Re-assembling Key Box" in page 15)
Key Ball
A Hit-Air CO2 gas cartridge with no hole at its bottom is usable.
○If there is a hole at its bottom, it is a used/empty one and not usable.
Replace it with a new one.
A Hit-Air CO2 gas cartridge with a hole at its bottom is unusable.
*An unused cartridge is to be installed in accordance with "Re-assembling Key Box" (see page 15 to 16).
❷
Never remove the cap part of the keybox where the CO2 gas cartridge is screwed.
If the cap part is not fixed to the keybox, the keybox cannot be used and the user
CAUTION
may be injured when the keybox is activated.
❸
Is there any deterioration of the wire loop or the coiled wire?
If yes, replace it with a new one. Its replacement in every 1 to 2 years is recommendable.
❹
A screw hole at the bottom of the key box is visible.
Make sure that the setting bolt has been removed from the key box.
The setting bolt is a tool to be used for setting the key ball into the
hole of the key box for re-assembling. (see page 15 to 16 in detail).
*The Hit-Air will not be activated if the setting bolt remains in the key box.
Make sure that the setting bolt is removed from the key box before using the Hit-Air.
❺
A coiled wire is set properly.
See "Attaching Coiled wire to Motorcycle" (page 12)
After attaching the coiled wire to the motorcycle, make a knot as
shown on left image. The knot works as a stopper which prevents
the wire from coming off when the Hit-Air is activated.
Be sure to tie a
CAUTION
knot tightly.
Be sure to read this User's Guide to use the Hit-Air properly.
A maintenance check by an authorized dealer once a year is recommendable for your safety and peace of mind.
1
Purchase date
*If sizes shown as above are not the same,
it may cause a malfunction.
*If the right size for the model is not clear,
check it on our website,
https://www.hit-air.com
*A description of the size label varies from model to model.
(The setting bolt is removed)
Setting bolt Setting bolt
Without a knot, the wire may come off the Hit-Air at its
activation and the airbag will not inflate.
USER'S GUIDE
EN1621- 4
Hit- Air USER'S GUIDE

Table of Contents

EN Accessories for Hit-Air .....................3
Preface
EN 1 Safety Prcautions ...........................4
General information
........................5
2
Function and Structure
3 .....................7
.....................7
Hit-Air : Name and Shape
........................8
Function and Structure
..............................8
Hit-Air structure
..........................................9
Key Box
..........................................9
Key Ball
.....................9
Hit-Air CO2 gas cartridge
4 Using Hit-Air ..............................10
...........................10
One-touch Release
Attaching the Coiled Wire to Motorcycle
.......12
Where and how to fix the coiled wire.
How to adjust the length of the coiled wire.
5 Instructions for the marking on the Hit-air
6 Re-assembling Hit-Air after Activation
.........................14
How to Re-assemble
Re-assembling the Key Box
..................15
Washing and How to Store
7 ................17
8 Change and Disposal .......................17
9 After-sale service ...........................17
10 Hit-air warranty Policy ....................17
11 Certificate and Declaration of Conformity
12 Hit-air warranty Policy ....................18
ES 1 Precauciones de seguridad ................19
2
Información general .......................20
3 Función y estructura
.......................21
4 Cómo usar Hit-Air ........................23
5 Descripción de la etiqueta del Hit-Air
6 Reensamblaje de la caja de activación
Lavado y conservación ....................27
7
8 Cambio y desechado .......................27
9 Servicio postventa ..........................27
10 Política de garantía de Hit-Air ............27
11 Certificación y declaración de conformidad
AIRBAG
FR 1
Précautions de sécurité ....................28
2
Informations générales ....................29
3 Fonction et structure
.......................30
4 Utiliser le gilet hit-air ......................32
5 Instructions sur le marquage du gilet hit-air
6 Remontage du boîtier ......................34
7 Lavage et stockage .........................36
8 Remplacement et mise au rebut
9 Service après-vente ........................36
10 Politique de garantie hit-air ...............36
11 Certificat et déclaration de conformité
...11
DE 1 ........................37
Sicherheitshinweise
2 Allgemeine Informationen ................38
...12
3 Funktion und Struktur ....................39
...13
4 Die Hit-Air verwenden .....................41
...14
5 Erläuterung der Symbole auf der
Hit-Air Airbagweste .......................42
6 Wieder-Zusammensetzen der Kugelhalterung
7 Waschen und Aufbewahren ...............45
8 Austausch und Entsorgung ...............45
9 Kundendienst ..............................45
10 Hit-Air-Garantiebestimmungen
11
Zertifikat und Konformitätserklärung
...17
IT 1 Precauzioni di sicurezza ...................46
2 Informazioni generali ......................47
3 Funzione e struttura .......................48
..........................50
4 Utilizzo di Hit-Air
5 Istruzioni riguardanti le etichette di Hit-Air
6 Riassemblamento dell'alloggiamento della chiave
...24
7 Lavaggio e custodia ........................54
...25
8 Sostituzione e Smaltimento ...............54
9 Servizio post vendita ......................54
10 Politica di garanzia di Hit-Air
11 Certificato e dichiarazione di conformità
...27
..33
..........36
...36
...43
.........45
...45
...51
...52
............54
...54
2
