Instruction Manual for
Narrow Fixed Frame Series
Micro fiber cloth x1
Plastic sheet x1
IMPORTANT: BEFORE YOU BEGIN
To avoid staining or scratching the screen, wash your hands and clean the work area before starting.
Do not use knives or sharp objects to open the packing boxes.
Care and Cleaning
Clean the screen with a microfiber cloth only. DO NOT use soap, water, harsh detergents, chemicals,
distilled spirits or petroleum-based chemicals to clean the screen. Doing so may result in severe
damage to the screen or the frame covering.
Use a household vacuum cleaner with a brush or furniture cleaning attachment to clean the velvet
frame material. Avoid using excessive amounts of water on the frame.

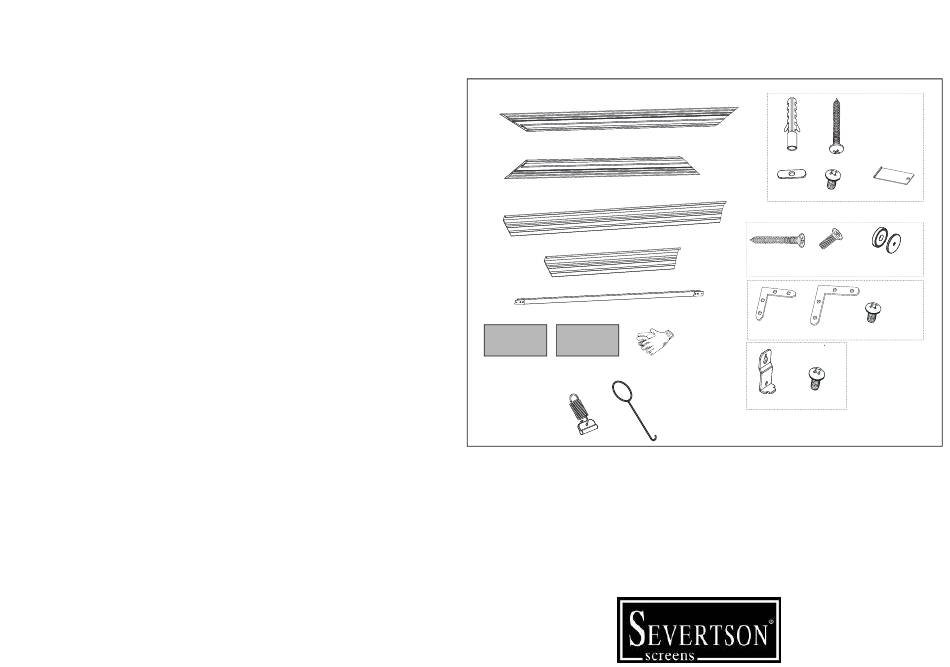

Part List
2（2）
4（6）
2（2）
16（16）
2（2）
M5*40
M5*6
2（2）
2（3）
2（3）
1（1）
4（5）
4（5）
M5*8
2（2）
2（3）
2（3）
2（2）
Remark: Above spare parts quantity inside () is equipped.
M5*40
2（3）
M5*6
10（12 ）
16（20）
2（3）
M5*6
32（36）
Advertisement
Table of Contents
Related Manuals for Severtson Narrow Fixed Frame Series
Summary of Contents for Severtson Narrow Fixed Frame Series
- Page 1 Instruction Manual for Narrow Fixed Frame Series Part List M5*40 2（2） 4（6） 2（3） 2（2） M5*6 10（12 ） 16（16） 16（20） 2（2） M5*40 M5*6 2（2） 2（3） 2（3） 2（3） M5*6 1（1） 4（5） 4（5） 32（36） M5*8 2（2） Micro fiber cloth x1 Plastic sheet x1 2（3）...
- Page 2 Installation 1-3.Four-hole Corner Bracket Slide 1 small (sharp end) and 1 big (round end) corner bracket into each end of the long frame pieces as shown in figure 1-3. 1-1.One-hole Nut (Note that the small corner bracket should be in the same groove as the nut.) Slide 6 one-hole nuts into each long frame piece.
- Page 3 2-2. Secure frame pieces with black round head screws provided. CAUTION: When handling ambient light rejecting screen material, please keep it flat at all times. To help ensure it stays flat, unroll the screen carefully, and do not fold or crease the material.
- Page 4 ⑤. Secure Screen Materials 1). Fold the edges of the screen material over the edge of the frame. Starting with the opposite corners, then the centers as shown in figure 5-1, hook the springs through the material eyelets to secure it in place. Then secure the rest of the eyelets with the springs until all eyelets have been secured as shown in figures 5-2 and 5-3.
- Page 5 Install outer frame Smooth out any wrinkles in the material with gloved hands. Slide 3 one-hole nuts into each long outer frame piece, and 2 one-hole nuts into each short outer frame piece; Attach the outer frames on to the frame as shown in figures 6-1 and 6-2.
- Page 6 Install the retaining plate Screw the retaining plates on the one - hole nuts as shown in Install the mounting brackets figure 6-3. 1). Secure two mounting brackets with the 1-hole nut in the top frame using round head screws. Do not tighten the screws completely - the brackets should be able to slide left and right 2).
- Page 7 Hammer the expansion bolts into the 4 drilled holes, and drive 2 round head Measure the overall Length (A) and Height (B) of the screen frame. self-tapping screws into the upper expansion bolts, leaving about 1/4" (5mm) extended for hanging the screen on. Install the lower 2 magnet pieces using 2 flat self-tapping screws.
