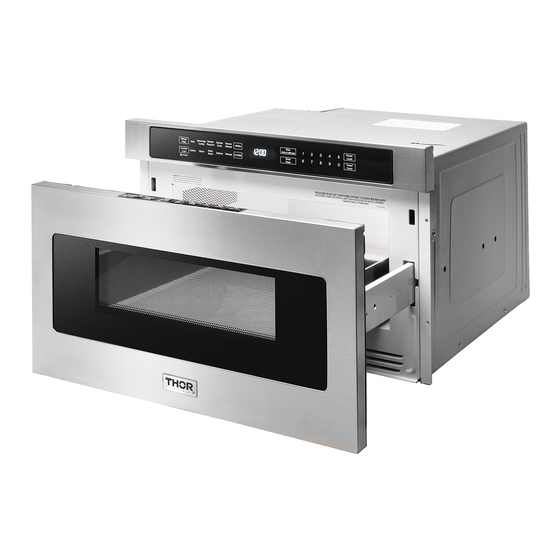

24 inch microwave drawer
Hide thumbs Also See for TMD2401:
Table of Contents

Advertisement

Quick Links

Download this manual
COOK
LIKE
A
GOD

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TMD2401 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Thor Kitchen TMD2401

Summary of Contents for Thor Kitchen TMD2401

  • Page 1 COOK LIKE...
  • Page 2 USE AND CARE MANUAL 24 INCH MICRO WAVE DRAWER TMD2401...

  • Page 4: Table Of Contents

    TABLE OF CONTENTS PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY..................2 IMPORTANT SAFETY INSTRUCTIONS................4 IMPORTANT INFORMATION YOU NEED TO KNOW............5 ABOUT UNPACKING AND EXAMINING YOUR DRAWER MICROWAVE......5 ELECTRICAL GROUNDING INSTRUCTIONS..............5 RADIO OR TV INTERFERENCE..................5 ABOUT YOUR DRAWER MICROWAVE................
  • Page 5 TABLE OF CONTENTS MANUAL DEFROST......................13 REHEAT..........................14 BEVERAGE CENTER......................14 MELT / SOFTEN / WARM....................15 KEEP WARM........................16 MULTIPLE SEQUENCE COOKING..................16 ADD-A-MINUTE....................... 16 MORE OR LESS TIME ADJUSTMENT................16 HELP (IN THE DISPLAY)....................16 CONTROL LOCK......................16 SETUP / HELP........................16 AUDIBLE SIGNAL ELIMINATION..................

  • Page 6: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS When using electrical appliances, basic safety 17. Be sure that the food and container are shorter than the drawer before closing it. You can refer to the height of precautions should be followed, including the the side walls of the drawer. following: 18.

  • Page 7: Important Information You Need To Know

    IMPORTANT INFO YOU NEED TO KNOW ABOUT UNPACKING AND EXAMINING YOUR RADIO OR TV INTERFERENCE Should there be any interference caused by the Drawer DRAWER MICROWAVE Microwave to your radio or TV, check that the Drawer Microwave is on a different electrical circuit, relocate the 1.

  • Page 8: Accessories

    IMPORTANT INFO YOU NEED TO KNOW Use these utensils for safe microwave cooking and CHILD SAFETY reheating: • Children below the age of 7 should use the Drawer • glass ceramic (Pyroceram®), such as Corningware®. Microwave with a supervising person very near to them. •...

  • Page 9: Cooking Safety

    IMPORTANT INFO YOU NEED TO KNOW COOKING SAFETY • ALWAYS use potholders to prevent burns when handling utensils that are in contact Check foods to see that they are cooked with hot food. Enough heat from the food to the United States Department of can transfer through utensils to cause Agriculture's recommended temperatures.

  • Page 10: Before Operating

    BEFORE OPERATING Before operating your new Drawer Microwave make sure you read and understand this Use and Care Guide completely. The following steps MUST be taken before any functions can be used. Before you use the Drawer Microwave: 1. Plug in the Drawer Microwave. ENJOY YOUR MICROWAVE TOUCH CLEAR AND TOUCH CLOCK will appear.

  • Page 11: Features And Control Panel

    FEATURES AND CONTROL PANEL...

  • Page 12: Settings

    SETTINGS TIME COOKING Your Drawer Microwave can be programmed for 99 minutes 99 seconds (99.99). Always enter the seconds after the minutes, even if they are both zeros. • Cook for 5 minutes at 100% 1. Enter cooking time 5 0 0. 2.

  • Page 13: Sensor Popcorn / Sensor Reheat

    SETTINGS SENSOR POPCORN / SENSOR REHEAT You can pop popcorn and reheat many foods and don’t need to calculate cooking time or power level. Touch Sensor Reheat or Sensor Popcorn and Start /Add-AMinute pad. When the sensor detects the vapor emitted from the food, the remainder of cooking/ reheating time will appear.

  • Page 14: Sensor Cook

    SETTINGS SENSOR COOK NOTE: 1. Touch Sensor Cook pad once. • To heat or cook other foods or foods above or below the quantity allowed on the Sensor Cook 2. See Menu Label. Select desired food by Chart, cook manually. touching number pad.

  • Page 15: Defrost

    SETTINGS DEFROST NOTE: Use this feature to defrost the foods shown in the Defrost • Defrost can be programmed with More or Less Time Chart below. Adjustment. See page 16. 1. Touch Defrost pad. • To defrost other foods or foods above or below the 2.

  • Page 16: Reheat

    SETTINGS REHEAT NOTE: Reheat automatically computes the correct warming time • Reheat can be programmed with More or Less Time and microwave power level for foods shown in the chart Adjustment. See page16. below. • To reheat other foods or foods above or below the quantity allowed on the Reheat Chart, heat manually.

  • Page 17: Melt / Soften / Warm

    SETTINGS MELT / SOFTEN / WARM NOTE: Melt, Soften and Warm automatically compute the correct • Melt, Soften and Warm can be programmed with More heating time and microwave power level for melting, or Less Time Adjustment. See page 16. softening and warming foods shown in the chart below.

  • Page 18: Keep Warm

    SETTINGS KEEP WARM ADD-A-MINUTE Keep Warm allows you to keep food warm up to 30 Add-A-Minute allows you to cook for a minute at 100% by minutes. simply touching the Add-A-Minute pad. You can also extend cooking time in multiples of 1 minute by Direct use repeatedly touching the Add-A-Minute pad during manual cooking.

  • Page 19: Audible Signal Elimination

    SETTINGS AUDIBLE SIGNAL ELIMINATION DEMONSTRATION MODE At the end of timed cook, beeps will sound. The audible To Select Demo Mode signal can be turned off if you prefer quiet operation. 1. Touch Setup/Help pad five times. The display shows DEMO ON? HOLD START 3 SEC.

  • Page 20: Cleaning And Maintenance

    CLEANING AND MAINTENANCE Any piece of equipment works better and lasts longer INTERIOR when maintained properly and kept clean. Cooking equipment is no exception. Your Drawer Microwave must Before cleaning the the Drawer Microwave, touch and be kept clean and maintained properly. hold the Control Lock button for 3 seconds to lock the control pad and the automatic door mechanism.

  • Page 21: Before You Call For Service

    BEFORE YOU CALL FOR SERVICE...
  • Page 22 INSTALLATION GUIDE IMPORTANT–PLEASE READ AND FOLLOW IMPORTANT SAFETY INSTRUCTIONS • Before beginning, read these instructions • WARNING: If the information in this manual thoroughly and carefully. is not followed exactly, a fire or electrical shock • Because the kit includes metal parts, caution may result that could cause property damage, should be used in handling and installation to personal injury or death.
  • Page 23 INSTALLATION GUIDE UNPACKING YOUR DRAWER MICROWAVE CLEARANCES AND DIMENSIONS • Dimensions that are shown in figure 1 must be used. • Remove all packing materials from inside the Given dimensions provide minimum clearance. Locate Drawer Microwave. DO NOT REMOVE THE WAVE- electrical outlet in the shaded area in the upper left-hand GUIDE COVER, which is located on the top of the corner of the cutout.
  • Page 24 INSTALLATION GUIDE DRAWER MICROWAVE MEASUREMENTS A. 6" (152.40 mm) A. 21-5/8" (549.28 mm) B. Suggested electrical outlet location* B. 4-11/16" (119.06 mm) C. Anti-Tip block C. 1-3/4" (44.45 mm) D. 5" (127 mm) D. 21-7/8" (555.60 mm) E. 3-1/2" (88.90 mm) E.
  • Page 25 INSTALLATION GUIDE This drawing represents a typical standard cabinet. If installed in custom cabinets with extended counter tops, take into account visibility and access to controls. See Figure 3.
  • Page 26 INSTALLATION GUIDE...
  • Page 27 INSTALLATION GUIDE...
  • Page 28 INSTALLATION GUIDE This drawing represents a typical standard cabinet. If installed in custom cabinets with extended counter tops, take into account visibility and access to controls. See Figure 7.
  • Page 29 INSTALLATION GUIDE ANTI-TIP BLOCK ELECTRICAL OUTLET NORMAL INSTALLATION STEPS ANTI-TIP BLOCK The electrical requirements are a 120 volt 60 Hz, AC INSTALLATION INSTRUCTIONS only, 15 amp. or more protected electrical supply. It is recommended that a separate circuit serving only this •...
  • Page 30 INSTALLATION GUIDE DRAWER INSTALLATION MODEL AND SERIAL NUMBER LOCATION The nameplate includes model number and serial number. Open the Drawer Microwave fully. The label is slightly be- yond the back wall of the microwave cavity facing up from the flat surface. CARE, CLEANING AND MAINTENANCE Refer to the User Manual for cleaning instructions.
  • Page 31 GUIDE D’INSTALLATION IMPORTANT - S’IL VOUS PLAÎT LIRE ET SUIVRE INSTRUCTIONS DE SÛRETÉ IMPORTANTES • Prière de lire attentivement toutes ces directives avant • ADVERTISSEMENT : Si l’on ne suit pas de près les de commencer. indications dans ce manuel, il y a un risque d’incendie •...

  • Page 32: Warranty

    GUIDE D’INSTALLATION DÉBALLAGE DU FOUR DRAWER MICROWAVE DÉGAGEMENTS ET DIMENSIONS • Retirez tout le matériau d’emballage du Drawer • Les dimensions indiquées au Schéma 1 doivent être Microwave. N’ENLEVEZ PAS LE COUVERCLE DU GUIDE observées. D’ONDES, qui se trouve sur le dessus du Four Drawer Ces dimensions offrent un dégagement minimal.
  • Page 33 GUIDE D’INSTALLATION MESURES POUR LE FOUR DRAWER MICROWAVE A. 21-5/8 po (549,28 mm) B. 4-11/16 po (119,06 mm) C. 1-3/4 po (44,45 mm) A. 6 po (152,40 mm) D. 21-7/8 po (555,60 mm) B. Emplacement de la prise électrique* E. 23-7/8 po (606,43 mm) C.
  • Page 34 GUIDE D’INSTALLATION BLOC ANTI-BASCULEMENT PRISE DE COURANT ÉTAPES D’INSTA LLATION NORMALE Le courant alimentation est 120 volts, 60 Hz, CA seulement, 15 A ou plus et doit être protégé. Il est recom- DIRECTIVES D’INSTALL ATION DU BLOC mandé d’alimenter cet appareil par un circuit séparé. ANTI-BASCULEMENT Le four est équipé...
  • Page 35 GUIDE D’INSTALLATION INSTALLATION DU TIROIR EMPLACEMENT DES NUMÉROS DE MODÈLE ET DE SÉRIE La plaque d’identification comprend les numéros de série et de modèle. Ouvrir complètement le four Drawer Microwave. L’étiquette se trouve légèrement au-delà de la paroi arrière de la cavité du four à micro-ondes sur la surface plate.
  • Page 37 WELCOME TO THE C LUB You chose THOR Kitchen to enhance your culinary journey and we’re stoked to have you in the club. Think of it as a secret society of really savvy people, such as yourself, choosing professional power and performance at an affordable price.
