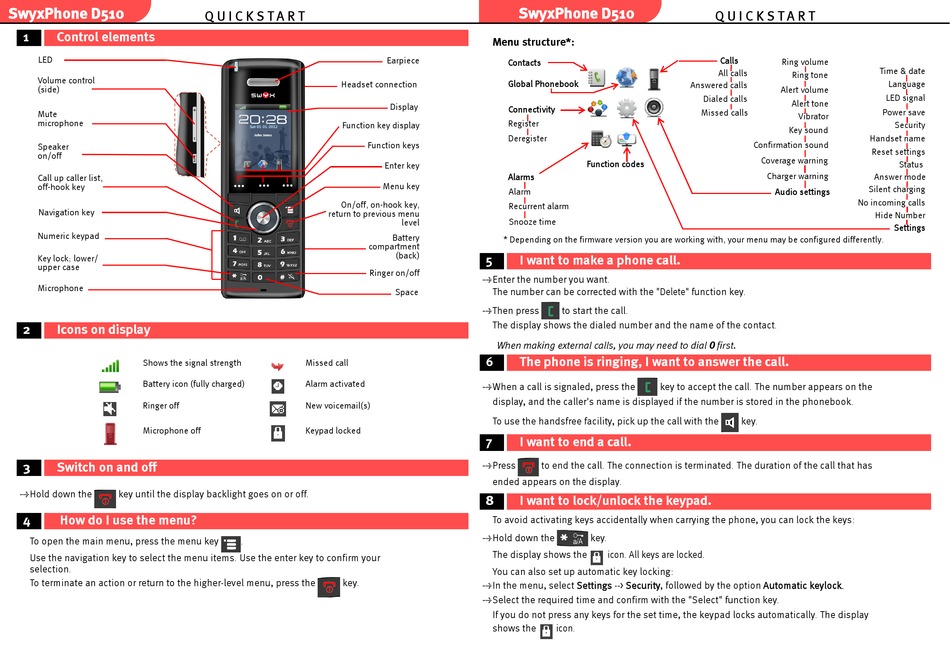

Swyx SwyxPhone D510 Quick Start

SwyxPhone D510
1

Control elements

LED
Volume control
(side)
Mute
microphone
Speaker
on/off
Call up caller list,
off-hook key
Navigation key
Numeric keypad
Key lock; lower/
upper case
Microphone
2

Icons on display

Shows the signal strength
Battery icon (fully charged)
Ringer off
Microphone off
3

Switch on and off

tHold down the
key until the display backlight goes on or off.
4

How do I use the menu?

To open the main menu, press the menu key
Use the navigation key to select the menu items. Use the enter key to confirm your
selection.
To terminate an action or return to the higher-level menu, press the
Q U I C K S T A R T
Headset connection
Function key display
Function keys
Menu key
On/off, on-hook key,
return to previous menu
compartment
Ringer on/off
Missed call
Alarm activated
New voicemail(s)
Keypad locked
.
key.
SwyxPhone D510
Menu structure*:
Earpiece
Contacts
Global Phonebook
Display
Connectivity
Register
Deregister
Enter key
Alarms
Alarm
Recurrent alarm
level Snooze time
Battery
* Depending on the firmware version you are working with, your menu may be configured differently.
(back)
5

I want to make a phone call.

tEnter the number you want.
The number can be corrected with the "Delete" function key.
Space
tThen press
to start the call.
The display shows the dialed number and the name of the contact.
When making external calls, you may need to dial 0 first.
6

The phone is ringing, I want to answer the call.

tWhen a call is signaled, press the
display, and the caller's name is displayed if the number is stored in the phonebook.
To use the handsfree facility, pick up the call with the
7

I want to end a call.

tPress
to end the call. The connection is terminated. The duration of the call that has
ended appears on the display.
8

I want to lock/unlock the keypad.

To avoid activating keys accidentally when carrying the phone, you can lock the keys:
tHold down the
The display shows the
You can also set up automatic key locking:
tIn the menu, select Settings --> Security, followed by the option Automatic keylock.
tSelect the required time and confirm with the "Select" function key.
If you do not press any keys for the set time, the keypad locks automatically. The display
shows the icon.
Q U I C K S T A R T
Calls
All calls
Answered calls
Dialed calls
Missed calls
Confirmation sound
Coverage warning
Function codes
key to accept the call. The number appears on the
key.
key.
icon. All keys are locked.
Ring volume
Time & date
Ring tone
Language
Alert volume
LED signal
Alert tone
Power save
Vibrator
Security
Key sound
Handset name
Reset settings
Status
Charger warning Answer mode
Silent charging
Audio settings
No incoming calls
Hide Number
Settings
