SwyxPhone D863

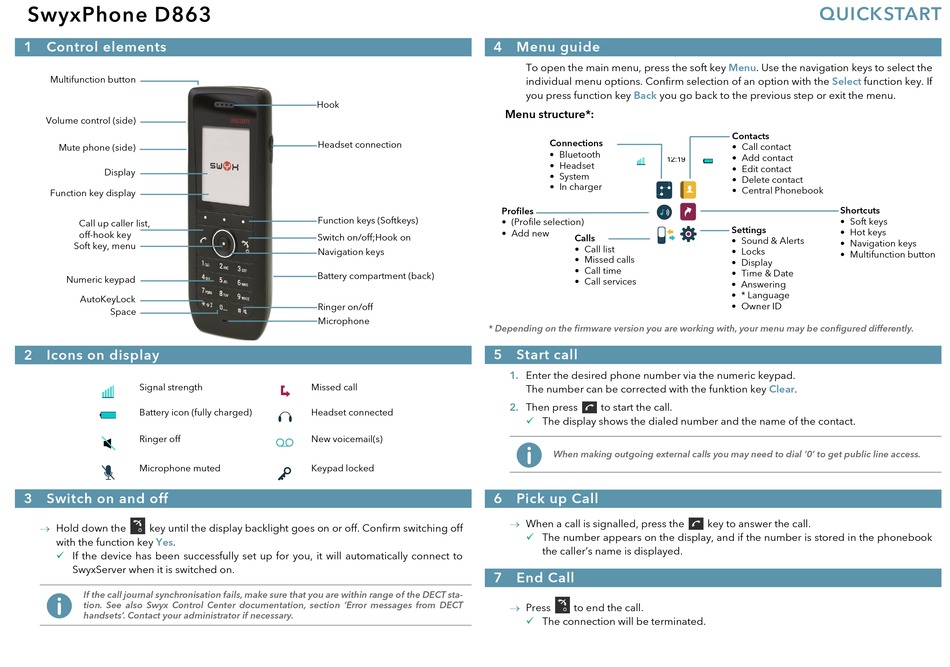

1 Control elements
Multifunction button
Volume control (side)
Mute phone (side)
Display
Function key display
Call up caller list,
off-hook key
Soft key, menu
Numeric keypad
AutoKeyLock
Space
2 Icons on display
Signal strength
Battery icon (fully charged)
Ringer off
Microphone muted
3 Switch on and off
Hold down the
key until the display backlight goes on or off. Confirm switching off
with the function key Yes.
If the device has been successfully set up for you, it will automatically connect to
SwyxServer when it is switched on.
If the call journal synchronisation fails, make sure that you are within range of the DECT sta-
tion. See also Swyx Control Center documentation, section 'Error messages from DECT
handsets'. Contact your administrator if necessary.
Hook
Headset connection
Function keys (Softkeys)
Switch on/off;Hook on
Navigation keys
Battery compartment (back)
Ringer on/off
Microphone
* Depending on the firmware version you are working with, your menu may be configured differently.
Missed call
Headset connected
New voicemail(s)
Keypad locked
4 Menu guide
To open the main menu, press the soft key Menu. Use the navigation keys to select the
individual menu options. Confirm selection of an option with the
you press function key
Back
you go back to the previous step or exit the menu.
Menu structure*:
Connections
• Bluetooth
12:19
• Headset
• System
• In charger
Profiles
• (Profile selection)
• Add new
Calls
• Call list
• Missed calls
• Call time
• Call services
5 Start call
1.
Enter the desired phone number via the numeric keypad.
The number can be corrected with the funktion key Clear.
2.
Then press
to start the call.
The display shows the dialed number and the name of the contact.
When making outgoing external calls you may need to dial '0' to get public line access.
6 Pick up Call
When a call is signalled, press the
The number appears on the display, and if the number is stored in the phonebook
the caller's name is displayed.
7 End Call
Press
to end the call.
The connection will be terminated.
QUICKSTART
Select
function key. If
Contacts
• Call contact
• Add contact
• Edit contact
• Delete contact
• Central Phonebook
Shortcuts
• Soft keys
• Hot keys
• Sound & Alerts
• Navigation keys
• Locks
• Multifunction button
• Display
• Time & Date
• Answering
• * Language
• Owner ID
key to answer the call.
