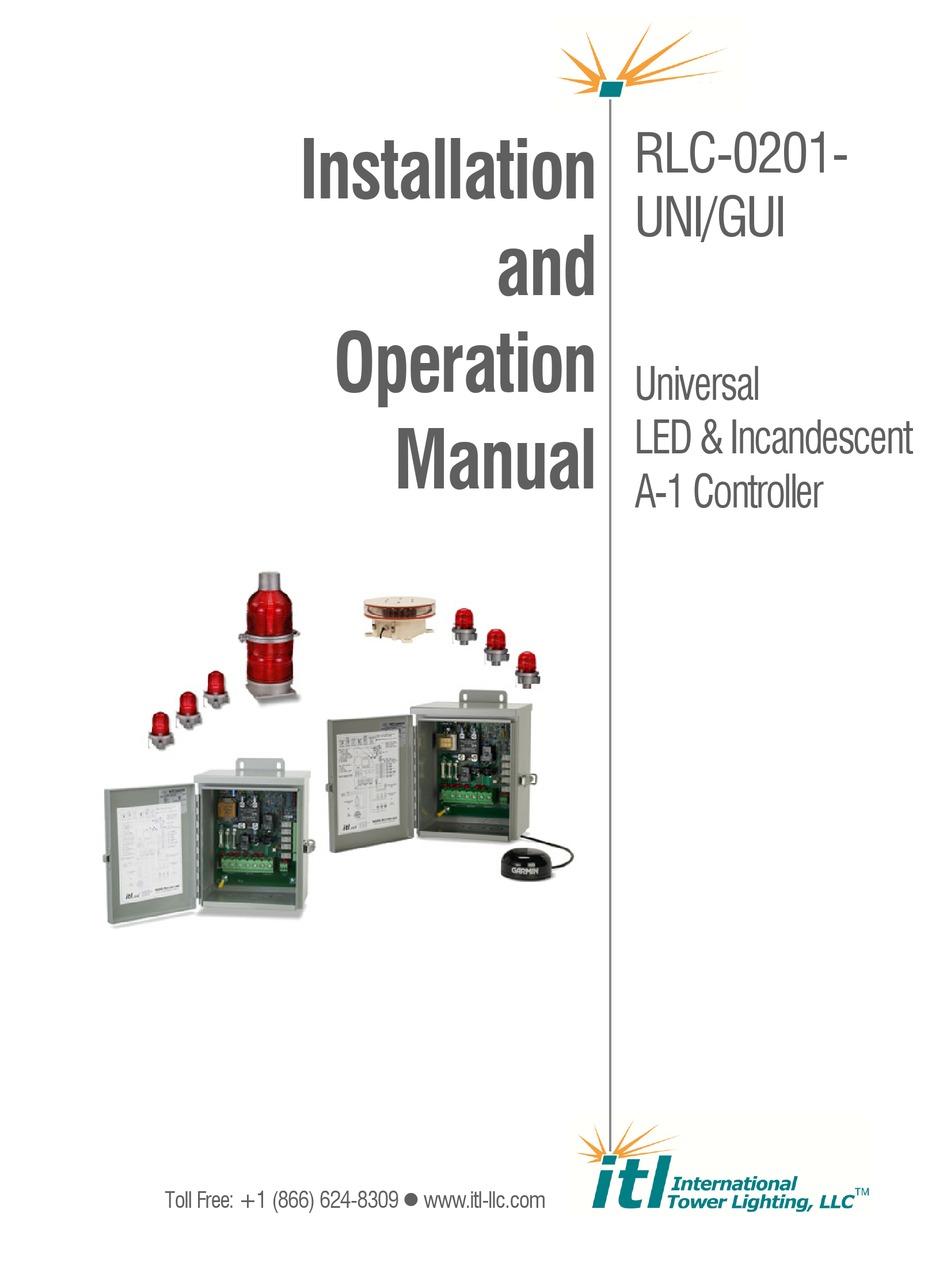

- Page 1 Installation RLC-0201- UNI/GUI Operation Universal Manual LED & Incandescent A-1 Controller Toll Free: +1 (866) 624-8309 www.itl-llc.com...
-
Page 2: Front Matter
ITL, LLC. ITL, LLC and the ITL logo are trademarks of ITL, LLC. All other trademarks and brand names are the property of their respective proprietors. -
Page 3: Safety Warning
Do not wear any jewelry. Gold and silver are excellent conductors of electricity. Copyright 1999-2020 ITL, LLC DOC-RLC201-MNL Rev10.doc (12/18/2020) Page 3 of 15... -
Page 4: Table Of Contents
Manual Mode Select Switch ..................13 Indicator Lights......................13 Spare Parts & Replacement Parts ................... 14 Technical Support and Contact Info ................15 Contact Info ......................... 15 ..........................15 Copyright 1999-2020 ITL, LLC DOC-RLC201-MNL Rev10.doc (12/18/2020) Page 4 of 15... -
Page 5: Introduction

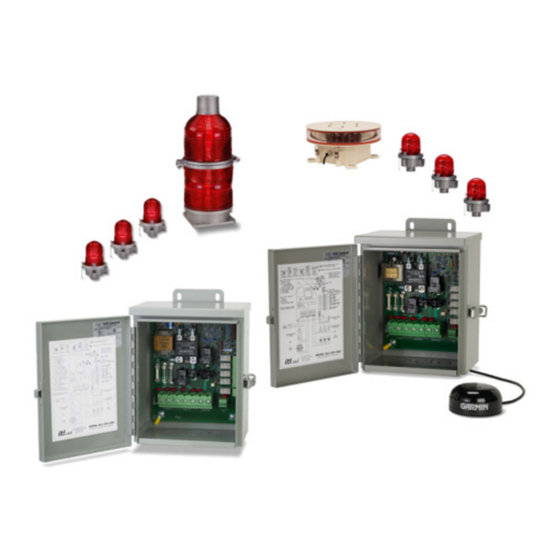

RLC-201. Product Description Both the RLC-0201-UNI and RLC-0201-GUI are capable of controlling one FAA type L- 864(L) red LED or FAA type L-864 incandescent beacon and up to five FAA type L-810(L) red LED or FAA type L-810 incandescent markers. -
Page 6: Specifications
120/230 VAC, 1 Amp PEC: 120/230 Vac, 50/60 Hz, 1 VA 320 Joule, 275V, Input Power, Beacon, Suppression Side Lights & PEC 23 Joule, 275V, All alarm relays Copyright 1999-2020 ITL, LLC DOC-RLC201-MNL Rev10.doc (12/18/2020) Page 6 of 15... -
Page 7: Installation
FAA requirements. Install cable from RLC-201 to L-810 obstruction lights (markers) per manufacturer’s instructions. Install Photoelectric Cell and socket (ITL P/N: PEC-1800-120, PEC-SOCK-000). Install GPS Antenna (RLC-201-GUI only) Install 120Vac line power to the RLC-201 Controller. -
Page 8: Rlc-201 Controller Mounting
RLC-201 RLC-201 Controller Mounting Copyright 1999-2020 ITL, LLC DOC-RLC201-MNL Rev10.doc (12/18/2020) Page 8 of 15... -
Page 9: Electrical Connections
Typical connections for a 120VAC system are shown below. It is the responsibility of the installer to comply with all applicable local, state, and federal regulations for installation and operation of this device. Copyright 1999-2020 ITL, LLC DOC-RLC201-MNL Rev10.doc (12/18/2020) Page 9 of 15... -
Page 10: Connector Descriptions
Primary Beacon Power Supply Neutral Secondary Beacon Marker Light Power (L-810 obstruction light power) Marker Light Neutral Photoelectric Cell Line Power Photoelectric Cell Neutral Photoelectric Cell Signal (120Vac=Night, 0Vac=Day). Copyright 1999-2020 ITL, LLC DOC-RLC201-MNL Rev10.doc (12/18/2020) Page 10 of 15... -
Page 11: Setup And Operation
Configuration DIP Switches, the Marker Alarm Setting dial, and the Manual Mode Select Switch. Configuration Configuration Marker Alarm Manual Mode Jumpers DIP Switches Setting Select Switch GPS Connection RLC-201-GUI only Alarm Contacts Copyright 1999-2020 ITL, LLC DOC-RLC201-MNL Rev10.doc (12/18/2020) Page 11 of 15... -
Page 12: Configuration Jumpers
ON – Marker alarm is disabled. Disable OFF* – Marker alarms is enabled. Beacon Type 1 ON – ITL IFH-1900 or Dialight D464 or D564 Beacon Type 2 ON – ITL IFH-1700 or Dialight D264 Marker Type See Marker Configuration Jumpers above... -
Page 13: Marker Alarm Setting
GPS. Flashing – Indicates the RLC-0201-GUI is waiting for flash synchronization data from the GPS. Provides visual indication of the pulse per second signal from the GPS. Copyright 1999-2020 ITL, LLC DOC-RLC201-MNL Rev10.doc (12/18/2020) Page 13 of 15... -
Page 14: Spare Parts & Replacement Parts
620W, 120VAC Beacon Lamp LMP-700W-230 700W, 230VAC Beacon Lamp LMP-116W-125-DUR 116W, 125-130VAC Marker Lamp LMP-116W-230 116W, 230VAC Marker Lamp ANT-018X-GPS GPS Antenna PEC-1800-120 Photoelectric Cell (PEC) PEC-SOCK-000 Socket For Photoelectric Cell Copyright 1999-2020 ITL, LLC DOC-RLC201-MNL Rev10.doc (12/18/2020) Page 14 of 15... -
Page 15: Technical Support And Contact Info
Contact Info For information on the RLC-201 controller’s basic functions, refer to this manual. For additional help with the installation or operation of any ITL products, please contact ITL, LLC at one of the following below. Web and Internet Sites Corporate home page: http://www.itl-llc.com...
