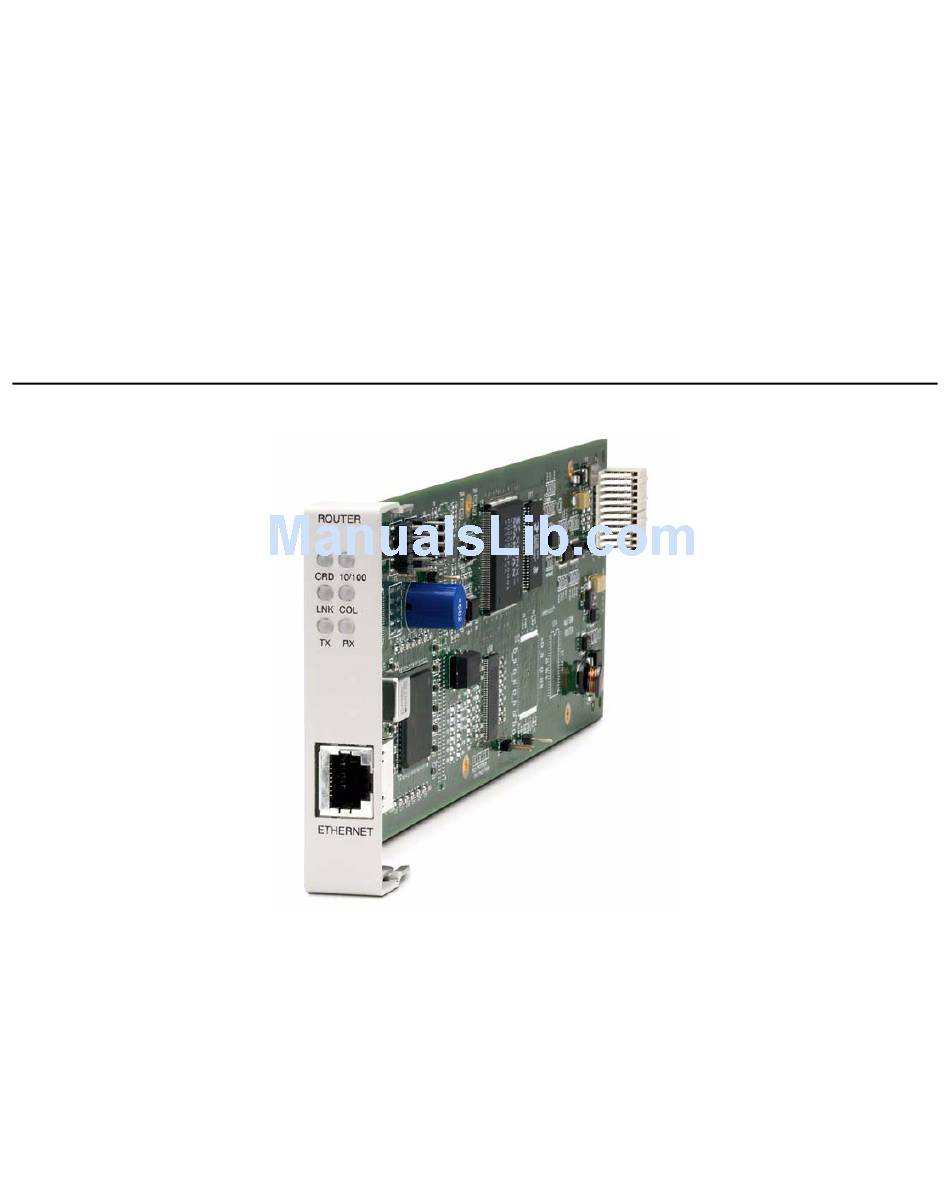

- Page 1 IP Router UICK TART UIDE Part Number: 002-0118-0180 Product Release: 1.8 May 2004...
- Page 2 Service Card for any purpose other than the purchaser’s personal use without the express written permission of Carrier Access Corporation. The Carrier Access logo, solve for x and Adit are registered trademarks of Carrier Access Corporation. All other brand or product names are trademarks or registration trademarks of their respective companies or organizations.
-
Page 3: In This Guide
UICK In this Guide Installation Basic Setup PPP Internet Connection and Public IP Address Routing Frame Relay Internet Connection and Public IP Address Routing Internet Connection using PPP, NAT/PAT and Firewall Filters Internet Connection using NAT and Static NAT Addresses Back-to-Back with PPP Back-to-Back with Multi-Link PPP Back-to-Back with Frame Relay... -
Page 4: Installation
Quick Start Guide Installation Installation Installation of the router card into the chassis. Unit can be on or off Router card will work in any slot Slide card into slot until fully seated Router has completed it’s boot cycle when CRD light is solid The following setups are all executed with CLI NOTE: Configuration can be done with the following CLI commands or... -
Page 5: Ppp Internet Connection And Public Ip Address Routing
PPP Internet Connection and Public IP Address Routing Router in Slot 1 ISP Router that provides the Internet connection. Command set clock1 a:1 set 1 default disconnect a:1 disconnect 1 set a:1:all type data connect a:1:all 1:1:1 rename 1 "LocalUnit" "Boulder" rename 1 "RemoteUnit"... -
Page 6: Frame Relay Internet Connection And Public Ip Address Routing
Quick Start Guide Frame Relay Internet Connection and Public IP Address Routing Frame Relay Internet Connection and Public IP Address Routing Router in Slot 1 ISP Router that provides the Internet connection. Command set clock1 a:1 set 1 default disconnect a:1 disconnect 1 set a:1:all type data connect a:1:all 1:1:1... -
Page 7: Internet Connection Using Ppp, Nat/Pat And Firewall Filters
Internet Connection using PPP, NAT/PAT and Firewall Filters Router in Slot 1 ISP Router that provides the Internet connection. Router with NAT/PAT and Firewall Filters. Command set clock1 a:1 set 1 default disconnect a:1 disconnect 1 set a:1:all type data connect a:1:all 1:1:1 rename 1 "LocalUnit"... - Page 8 Quick Start Guide Internet Connection using PPP, NAT/PAT and Firewall Filters Command add 1 "wan1" firewall 2 pass inout nolog ping 192.168.21.14/32 xxx.xxx.xxx.xxx/32 add 1 "wan1" firewall 3 pass inout nolog ping 0.0.0.0/0 0.0.0.0/0 add 1 "wan1" firewall 4 pass inout nolog tcp 1-65535 0.0.0.0/0 0.0.0.0/0 add 1 "wan1"...
-
Page 9: Internet Connection Using Nat And Static Nat Addresses
Internet Connection using NAT and Static NAT Addresses Router in Slot 1 ISP Router that provides the Internet connection. Router with NAT and Static NAT addresses. Command set clock1 a:1 set 1 default disconnect a:1 disconnect 1 set a:1:all type data connect a:1:all 1:1:1 rename 1 "LocalUnit"... - Page 10 Quick Start Guide Internet Connection using NAT and Static NAT Addresses Command add 1 "wan1" static nat address 192.168.21.15 216.174.44.233 add 1 "wan1" static nat address 192.168.21.16 216.174.44.234 add 1 "wan1" static nat address 192.168.21.17 216.174.44.235 set 1:1:1 encapsulation fr set 1 lmi annexd set 1 "wan1"...
-
Page 11: Back-To-Back With Ppp
Back-to-Back with PPP The following configuration will set up two Adit 600 Routers back-to-back with PPP. Boulder 1.1.1.1/24 Boulder Router in Slot 1 Command set 1 default disconnect a:1 disconnect 1 set a:1:all type data connect a:1:all 1:1:1 rename 1 "LocalUnit" "Boulder" rename 1 "RemoteUnit"... -
Page 12: Denver Router In Slot 1
Quick Start Guide Back-to-Back with PPP Denver Router in Slot 1 Command set 1 default disconnect a:1 disconnect 1 set clock1 a:1 set a:1:all type data connect a:1:all 1:1:1 rename 1 "LocalUnit" "Denver" rename 1 "RemoteUnit" "wan1" set 1:1 ip address 2.2.2.1 255.255.255.0 set 1:1 phy auto add 1 "wan1"... -
Page 13: Back-To-Back With Multi-Link Ppp
Back-to-Back with Multi-Link PPP The following configuration will set up two Adit 600 Routers back-to-back with Multi- Link PPP. Boulder Router in Slot 1 Command set 1 default disconnect a:1 disconnect 1 set a:1:all type data connect a:1:all 1:1:1 connect a:2:all 1:1:2 rename 1 "LocalUnit"... - Page 14 Quick Start Guide Back-to-Back with Multi-Link PPP Denver Router in Slot 1 Command set 1 default disconnect a:1 disconnect 1 set clock1 a:1 set a:1:all type data connect a:1:all 1:1:1 connect a:2:all 1:1:2 rename 1 "LocalUnit" "Denver" set 1:1:1-2 multilink group 1 rename 1 "RemoteUnit"...
-
Page 15: Back-To-Back With Frame Relay
Back-to-Back with Frame Relay The following configuration will set up two Routers back-to-back with Frame Relay. Boulder 1.1.1.1/24 Boulder 1.1.1.1/24 Boulder Router in Slot 1 Command set clock1 internal set 1 default disconnect a:1 disconnect 1 set a:1:all type data connect a:1:all 1:1:1 rename 1 "LocalUnit"... -
Page 16: Denver Router In Slot 3
Quick Start Guide Back-to-Back with Frame Relay Denver Router in Slot 3 Command set 3 default disconnect a:1 disconnect 3 set clock1 a:1 set a:1:all type data connect a:1:all 3:1:1 rename 3 "LocalUnit" "Denver" rename 3 "RemoteUnit" "wan1" set 3:1 ip address 2.2.2.1 255.255.255.0 add 3 "wan1"...
