Defender HA00793 Instructions

COMBINATION KEY SAFE
Secure Combination Dial Key Safe
IMPORTANT!
Please read the following instructions carefully before installing your key safe. Always wear goggles or other suitable
eye protection before starting to drill.
CONTENTS
1 x Defender Combination Key Safe
4 x Thunderbolts for securely fixing your key safe
1 x Combination protector card
1 x Installation Template
1 x Instruction Sheet

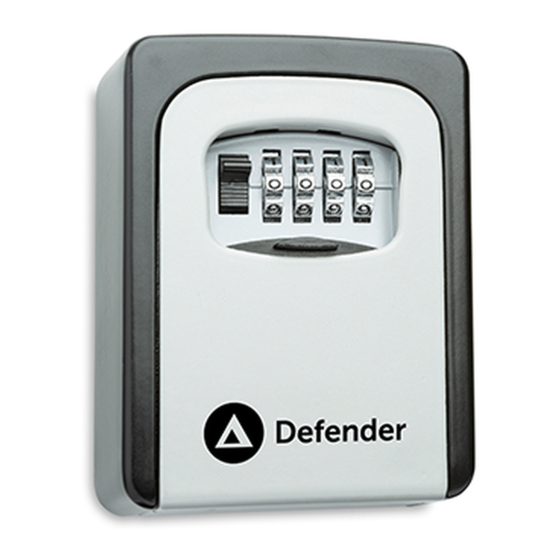

YOUR KEY SAFE

On the front of the key safe there are 4 dials numbered 0 to 9. There is also a small black lever.
The key safe is shipped from the factory with 0-0-0-0 as a preset combination. This means that the key safe will only open when
0000 is showing on the dials. The key safe will open as soon as the lever is pulled down.

BEFORE INSTALLING THE KEY SAFE

Choose your own combination for the key safe. It is recommended that you do not use a number combination that can be easily guessed.
Avoid numbers linked to your telephone number or birthday. Do not use a bank card PIN number as this may breach your financial security
should someone determine the combination to your key safe. Use a unique number that only you will know.
Record it on the Combination Protector Card included; this should be safely stored so that in the unlikely event that you forget your
combination it can be located and used to access your keys.
WARNING:
Please note that if you forget your combination gaining access to your key safe is not covered by your warranty. There are no
master codes so the ONLY way to open the key safe is by using suitable tools and brute force.
There are no user serviceable parts so under no circumstances should you remove the screws on the inside cover of the lid.
Your warranty will be void if this cover is tampered with or opened.

SETTING YOUR COMBINATION

Step 1:
To set the combination for the first time, slide the black shutter down to expose the dials.
Ensure 0000 is showing on the dials (preset code). Push the lever down to open the
key safe (Figure 1). The door of the key safe is spring loaded and conveniently hinged so it
will open automatically.
Step 2:
Once the key safe is open, the RESET button should be visible on the back of the key safe
door. Push the small lever from position A (Figure 2) to position B.
Step 3:
Once the lever is in position B, you will feel it lock into place. Rotate the 4 combination dials
to the combination of your choice. Make sure the dials are properly and clearly aligned
along the centre line.
Step 4:
Push the lever back up and right into position A. You will feel it lock back in place, signifying
the entered code is now set.
DO NOT CLOSE THE KEY SAFE DOOR UNTIL YOU HAVE TESTED THE COMBINATION!
See below for TESTING YOUR COMBINATION.
With the safe still OPEN - scramble the 4 combination dials and then re-enter your NEW combination.
Test the 'open' lever is free to move down and that is easily activates the key safe locking latch on top of the door.
If it does then you can close the key safe door and then use the 'open' release slide latch to re-open it. If it does not, repeat the
above from Step 2.
defendersecurityproducts.co.uk
Product Code: HA00793
Figure 1
Shutter
Open Lever
Figure 2
Reset Button
(in position A)
Move lever here to
reset the combination
(position B)
