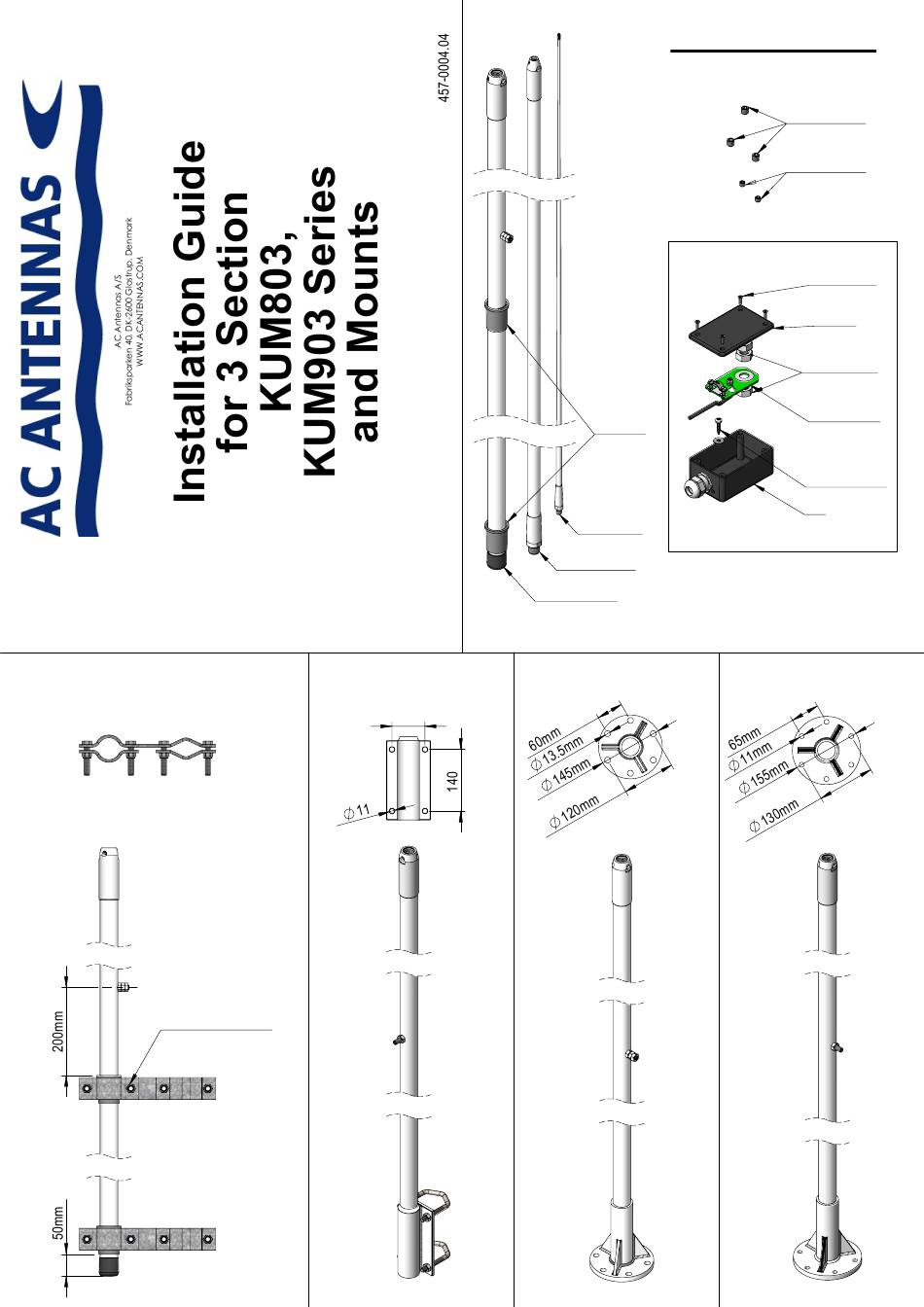

N115F-Set Clamp Mount
Stainless Ø38-Ø70mm
Tighten the M12
bolts with max 9Nm
of torque.
Use sleeve supplied
with antenna.
(Do not use
additional sleeve)
MWM mount
75
Package content:
Mounting
Sleeve
(2 pcs)
Top section
(Only applicable for type -1 and -2)
Middle section
Bottom section
DM mount
M8 set screws
(3 pcs)
M6 set screws
(2 pcs)
M3 Machine
Screws
(4 pcs)
Box Lid
M10 nuts
(reused from
antenna)
PCB
(Coax cable
not included)
TX15 Tapping
Screw with
Washer
Box
DMC mount
Advertisement
Related Manuals for AC Antennas KUM803 Series
Summary of Contents for AC Antennas KUM803 Series
- Page 1 Package content: M8 set screws (3 pcs) M6 set screws (2 pcs) M3 Machine Screws (4 pcs) Box Lid M10 nuts (reused from antenna) Mounting (Coax cable Sleeve not included) (2 pcs) TX15 Tapping Screw with Washer Top section (Only applicable for type -1 and -2) Middle section Bottom section N115F-Set Clamp Mount...
- Page 2 Installation Guide This is a guide only and does not form any contract or warranty 1: Assemble the top and middle antenna sections with 20-25 Nm DETAIL A recommended torque SCALE 2 : 5 2: Tighten the M6 set screws (2 pcs) with 3-5Nm recommended torque.
