WARNING:
To reduce the risk of serious
*
injury and/or property damage,
observe all warnings and
instructions while operating the
tool. Keep work area clean and well
lit. Maintain tool in top condition and
obtain service from manufacturer if
tool malfunctions. Use only
accessories and replacement parts
that are provided by the
manufacturer.
Always wear proper personal
=
protection when operating welder.
A full face shield per ANSI Z87.1-
2003 standard is required at all times
to protect face and eyes against
A
injury from flying parts. Adequate
gloves and clothing are required to
reduce the risk of burns. Allow parts
to cool before handling.
IF YOU HAVE ANY QUESTIONS ABOUT THE OPERATION OF PRODUCT CALL TOLL FREE

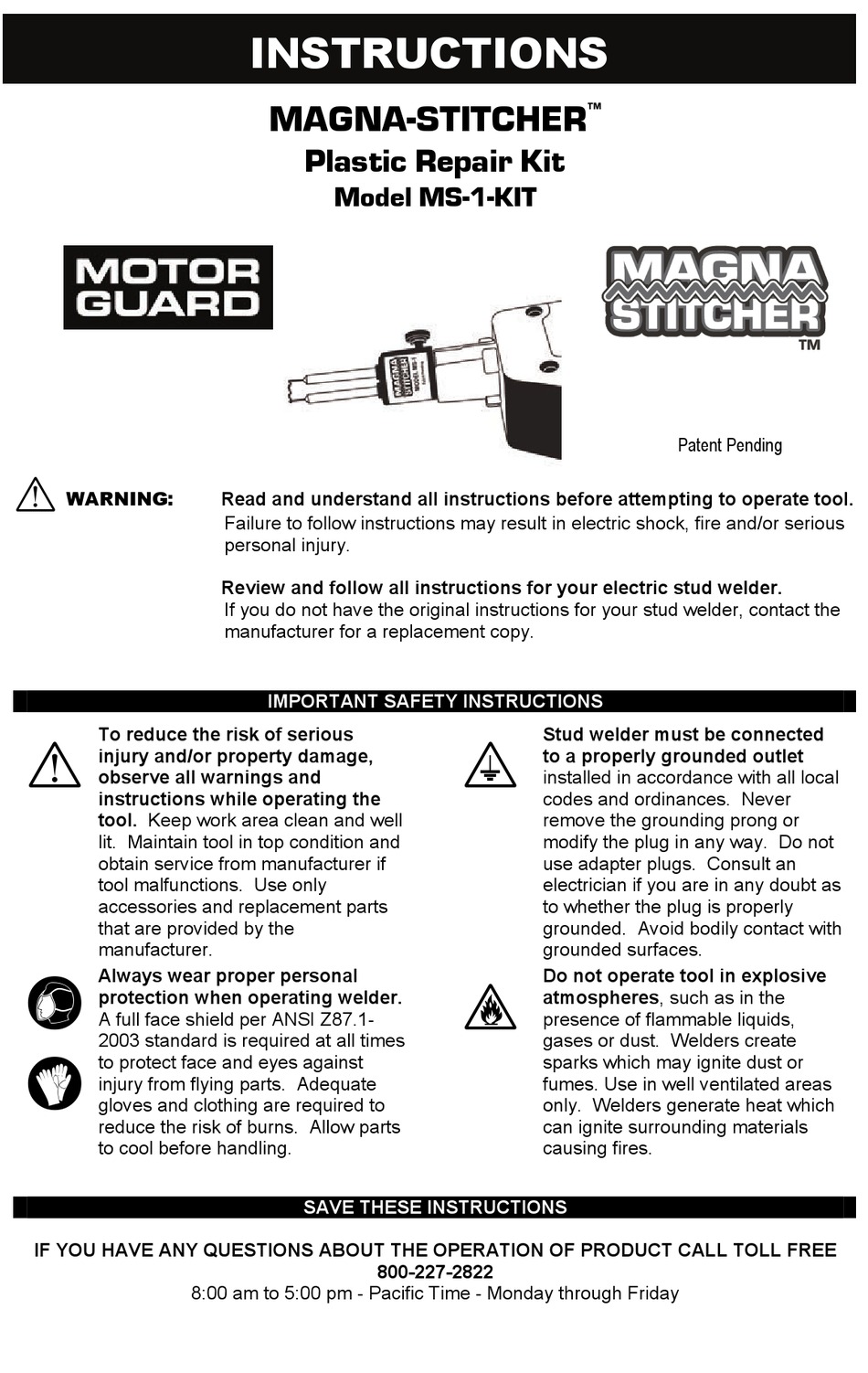

INSTRUCTIONS
MAGNA-STITCHER
Plastic Repair Kit
Model MS-1-KIT
Read and understand all instructions before attempting to operate tool.
Failure to follow instructions may result in electric shock, fire and/or serious
personal injury.
Review and follow all instructions for your electric stud welder.
If you do not have the original instructions for your stud welder, contact the
manufacturer for a replacement copy.
IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS
8:00 am to 5:00 pm - Pacific Time - Monday through Friday
8
!
800-227-2822
TM
Patent Pending
Stud welder must be connected
to a properly grounded outlet
installed in accordance with all local
codes and ordinances. Never
remove the grounding prong or
modify the plug in any way. Do not
use adapter plugs. Consult an
electrician if you are in any doubt as
to whether the plug is properly
grounded. Avoid bodily contact with
grounded surfaces.
Do not operate tool in explosive
atmospheres, such as in the
presence of flammable liquids,
gases or dust. Welders create
sparks which may ignite dust or
fumes. Use in well ventilated areas
only. Welders generate heat which
can ignite surrounding materials
causing fires.
