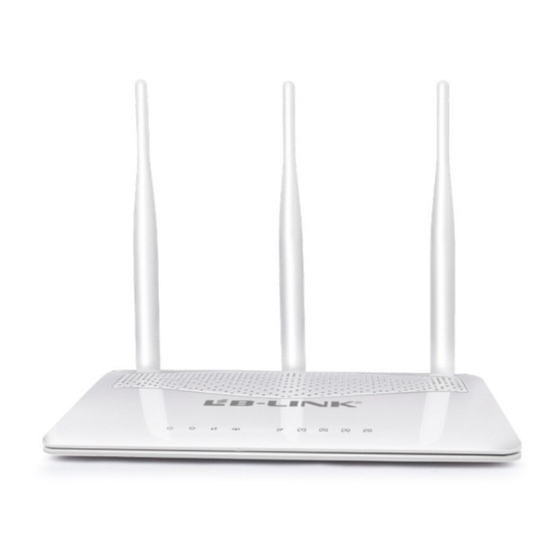

- Page 1 All manuals and user guides at all-guides.com Quick Installation Guide Model:BL-WR3000 300Mbps Wireless N Router...
-
Page 2: Connecting The Device
All manuals and user guides at all-guides.com 1.Connecting the device Note: Please use wired network connections only to configure the Router. Connect the WAN port on your Router to the Modem's LAN port with an Ethernet cable. （If there is no Modem, please use the incoming cable directly into the router's WAN port）. Internet Cable/DSL Modem Wireless N Router... - Page 3 All manuals and user guides at all-guides.com Check the router's LED indicator lights display status is the same as described. Power: Solid light SYS Flashing WPS: Flashing WLAN: Flashing WAN:Flashing or solid light LAN:Flashing or solid light if the corresponding port is connected Note: If the LED indicator light display abnormal, please check whether the connection is correct.
-
Page 4: Configuring The Device
All manuals and user guides at all-guides.com 2.Configuring the device Note: First of all, please configure your computer's IP address to automatically obtain, if not clear, please refer to FAQ3. Login Open your web browser,input about:blank - Microsoft Internet Explorer about:blank - Microsoft Internet Explorer 192.168.16.1 in the address Address... - Page 5 All manuals and user guides at all-guides.com Internet Paremeters Configuration This page will then display Quick Setup Network Wireless Firewall Virtual Server Quick Setup Qucik Setup DHCP (Auto Config) Select a connection type Static Mode (fixed IP) PPPOE (ADSL) Back Back Next Cancel...
- Page 6 All manuals and user guides at all-guides.com Wireless Settings Configuration This page will then display Quick Setup Network Wireless Firewall Virtual Server Create a unique and easy-to-remember Quick Setup name for your wireless network.You can Qucik Setup also keep default settings without the B-LINK_90E09F Network name(SSID) device being affected.
-
Page 7: Troubleshooting
All manuals and user guides at all-guides.com 3.Troubleshooting FAQ1: What should I do if I forget the user name and password? (How to restore the router 's configuration to its factory default settings.) Answer: If you forget the user name and password, the only way to solve this problem is to reset the router. - Page 8 All manuals and user guides at all-guides.com For Windows XP OS Click Network Connections Right-click Local Area Connection Click Properties Double-click Internet Protocol (TCP/IP)
- Page 9 All manuals and user guides at all-guides.com For Windows XP OS Select Obtain an IP address automatically Select Obtain DNS server address automatically Click OK Click OK...
- Page 10 All manuals and user guides at all-guides.com For Windows 7 OS Go to Start > Control Panel, you will then see the following page. Click View network status and tasks Click Change adapter settings Right-click Local Area Connection Click Properties...
- Page 11 All manuals and user guides at all-guides.com For Windows 7 OS Double-click Internet Protocol Version 4 (TCP/IPv4) Click OK Select Obtain an IP address automatically Select Obtain DNS server address automatically Click OK...
- Page 12 All manuals and user guides at all-guides.com For Windows 7 OS Click OK...
- Page 13 All manuals and user guides at all-guides.com For Windows 8 OS Press the Keyboard WIN( to popup the menu on the Win8 Desktop, then select Control Panel Click View network status and tasks Click Change adapter settings...
- Page 14 All manuals and user guides at all-guides.com For Windows 8 OS Right-click Ethernet Click Properties Double-Click Internet Protocol Version4(TCP/Ipv4)
- Page 15 All manuals and user guides at all-guides.com For Windows 8 OS Select Obtain an IP address automatically Select Obtain DNS server address automatically Click OK Click OK...
- Page 16 All manuals and user guides at all-guides.com is the registered trademark of Shenzhen BILIAN Electronic CO ,Ltd.All the products and product names mentioned herein are the trademarks or registered trademarks of their respective holders 2012 All Rights Reserved. http://www.lefen.com Ver 1.0...
