INSTALLATION MANUAL TXD70
INTERFACOM, S.A
INSTALLATION MANUAL

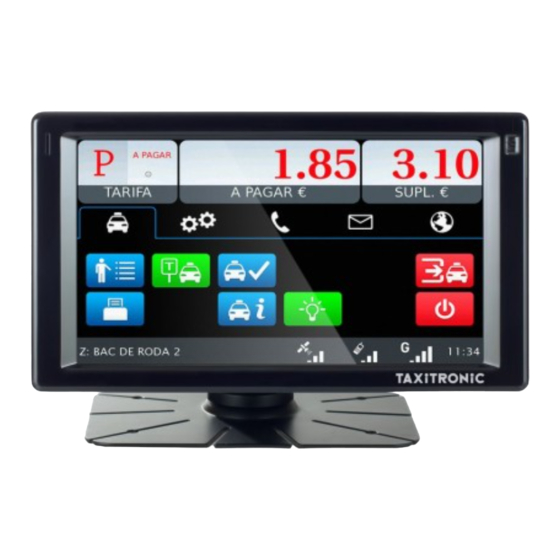

TAXITRONIC TXD70
TXD70_Install_Manual_en_023.doc
01/06/2016

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TAXITRONIC TXD70 and is the answer not in the manual?

Questions and answers

Summary of Contents for Interfacom TAXITRONIC TXD70

  • Page 1 INSTALLATION MANUAL TXD70 INTERFACOM, S.A INSTALLATION MANUAL TAXITRONIC TXD70 TXD70_Install_Manual_en_023.doc 01/06/2016...
  • Page 2: Table Of Contents

    INSTALLATION MANUAL TXD70 INTERFACOM, S.A INDEX INTRODUCTION ......................4 MOUNTING ......................... 4 2.1. LOCATION OF MX70 ................... 4 2.2. MOUNTING TXD70 ....................4 2.2.1. LOCATION OF TXD70 ....................4 2.3. ELECTRICAL INSTALLATION ................5 2.4. CHARACTERISTICS .................... 5 2.5. INSTALLATION RECOMMENDATIONS .............. 6 2.6.
  • Page 3 INSTALLATION MANUAL TXD70 INTERFACOM, S.A DRAWINGS LIST Drawing 1 Bracket assembly Drawing 2 TXD70 mounting on bracket Drawing 3 Connectors Drawing 4 Electrical installation drawing Drawing 5 Installation with armored cables Drawing 6 TXD70 Plastic sealing Drawing 7 TXD70 Sealing stickers position Drawing 8.1...
  • Page 4: Introduction

    INSTALLATION MANUAL TXD70 INTERFACOM, S.A 1. INTRODUCTION This document describes the installation and parameterization of TAXITRONIC TXD70. 2. MOUNTING 2.1. LOCATION OF MX70 TXD70 must be installed so that passengers can’t see or access it, but the verification office must be able to access it. Seals and serial numbers must be easily visible and accessible upon verification at a verification office.
  • Page 5: Electrical Installation

    INSTALLATION MANUAL TXD70 INTERFACOM, S.A 2.3. ELECTRICAL INSTALLATION TXD70 admits power supplies between 9 and 30 V, which makes it compatible with the current 12V and 24V vehicle batteries. First perform all the connections with the unit disconnected from the car battery. When all...
  • Page 6: Installation Recommendations

    INSTALLATION MANUAL TXD70 INTERFACOM, S.A 2.5. INSTALLATION RECOMMENDATIONS Disconnect the battery positive contact until the whole electrical installation is finished. Any work on the terminal or accessory must be done with the device disconnected from the battery or without the general fuse.
  • Page 7: First Time Turn On

    INSTALLATION MANUAL TXD70 INTERFACOM, S.A 2.6. FIRST TIME TURN ON Turn on the unit by pressing on the touchscreen. The unit starts, showing a progress bar. Finally you get a screen with the message “ENTER A VALID USB” Connect the USB stick with installer key to the USB connector A screen requests for the installer password Enter the password and press OK.
  • Page 8: Configuration Parameters

    INSTALLATION MANUAL TXD70 INTERFACOM, S.A 2.8. CONFIGURATION PARAMETERS When in the main Manufacturing screen, press “Configure” The application configuration parameters will open. These are not metrological parameters; therefore they are not subject to sealing. They can be accessed by swiping an installer magnetic card.
  • Page 9: Gprs Gsm

    INSTALLATION MANUAL TXD70 INTERFACOM, S.A 2.8.1. GPRS GSM GPRS APN Identification of the GPRS network Central Port UDP Port of the central program GPRS Suffix, used as a second part of Your network support will give you this GPRS Suffix the GPRS user.
  • Page 10: Rt Params

    INSTALLATION MANUAL TXD70 INTERFACOM, S.A 2.8.2. RT PARAMS Name Name of license owner License License number Plate Number Plate number Fiscal ID Car ID ID of the car in the Radiotaxi Driver 1..4 Driver codes of the 4 drivers Company...
  • Page 11: Tickets

    INSTALLATION MANUAL TXD70 INTERFACOM, S.A 2.8.3. TICKETS These screens are used to set all the data related to tickets. The data are: Ticket Headers 6 ticket headers Ticket Footers 8 ticket footers 4 Manual Extras Extras text Extras text in the tickets...
  • Page 12: Installation

    INSTALLATION MANUAL TXD70 INTERFACOM, S.A 2.8.4. INSTALLATION Operator Installer who installs the device Factory Code of the workshop Date Installation date Format YYYYMMDD Bat. Calibration Battery calibration Touch Calibr. Touchscreen calibration EMV Type Type of EMV payment Internal: Taximeter in TXD70...
  • Page 13: Touchscreen Calibration

    INSTALLATION MANUAL TXD70 INTERFACOM, S.A 2.8.5. TOUCHSCREEN CALIBRATION If it is necessary to calibrate the display touchscreen, select “Touch Calibr”. The device will restart and ask to press on the 4 corners and the center of the screen to calibrate the touchscreen. After pressing on the crosses, save the calibration, otherwise the process will be repeated until you save.
  • Page 14: Kern Update

    INSTALLATION MANUAL TXD70 INTERFACOM, S.A For example, if a button with the text "RT-4_2r54-RT-4_2r64.isu" appears, pressing that button the RT-4_2r54 version installed on your device will be replaced by the RT-4_2r64 new version. 2.8.8. KERN UPDATE If the device has Access to internet, it will connect to the software updates download server.
  • Page 15: Taximeter Configuration

    INSTALLATION MANUAL TXD70 INTERFACOM, S.A 3. TAXIMETER CONFIGURATION Enter a USB pen drive with the current tariff and installer key. If the software is not installed, install it at this time: Normal mode Functions  Install  Select the adequate program  Install  Reboot to install. The device reboots and installs the new software.
  • Page 16 INSTALLATION MANUAL TXD70 INTERFACOM, S.A Adjustment of the trigger value for adaptation to the car signal. The trigger value counts from the center value of the signal. Modify Trigger value. The default 2000 mV = 2 V is compatible with most cars.
  • Page 17: Pull-Up Configuration

    INSTALLATION MANUAL TXD70 INTERFACOM, S.A 3.1.1. PULL-UP CONFIGURATION In some vehicles, the vehicle signal does not provide a high level signal, but an open circuit instead. In these cases it is necessary to activate the pull-up. Modify the value of the PULL-UP field by pressing on it.
  • Page 18: Calculation Of The K Constant

    INSTALLATION MANUAL TXD70 INTERFACOM, S.A 3.1.2. CALCULATION OF THE K CONSTANT To calculate the value of the K constant the method described below must be used. On the main taximeter configuration screen, press on button K. Press on the field “PULSES” to start the counting of the number of impulses.
  • Page 19: Entering Constant K

    INSTALLATION MANUAL TXD70 INTERFACOM, S.A 3.1.3. ENTERING CONSTANT K In case the value of K is known, it can be entered using the numeric keypad. The steps are: On the main taximeter configuration screen, press on button K. Press on the field K value. Then enter the value of K with the numeric keypad. The value has to be between 500 y 80000.
  • Page 20: Reset Totalizers

    INSTALLATION MANUAL TXD70 INTERFACOM, S.A 3.4. RESET TOTALIZERS If it is necessary to reset all the taximeter totalizers to zero: On the main taximeter configuration screen, press on Totalizers. Press OK to confirm the erasing of totalizers. If you do not want to erase the totalizers, press on CANCEL, and you will return to the main screen without having reset the totalizers.
  • Page 21: Sealing

    INSTALLATION MANUAL TXD70 INTERFACOM, S.A 4. SEALING 4.1. MX70 To ensure the integrity of the instruments the device is sealed with two bracket seals and screw seal. (Drawing 8.2) The anti-turn angle and a screw with a hole are used. A cable is passed through both parts and is then sealed.
  • Page 22: Maintenance

    INSTALLATION MANUAL TXD70 INTERFACOM, S.A 5. MAINTENANCE The TXD70 has a utility to test the unit functioning once installed, be it locally or remotely, and for the update of its software. 5.1. SWITCH TO INSTALLER MODE To reenter the installer mode from Normal mod. On the Out of Service screen, enter the installer USB and wait until the OFF button changes to INSTALL.
  • Page 23: Remote Test

    The SIM is to be inserted with the contacts pointing to the front of TXD70. It is not possible to do substitutions of boards, only complete units. Only Interfacom can have access to opening the units and act on the boards. The seals which keep the integrity of the electronics, with the logo TAXITRONIC, must never be opened by unauthorized personnel.
  • Page 24: Software Update

    INSTALLATION MANUAL TXD70 INTERFACOM, S.A 5.5. SOFTWARE UPDATE In case it is necessary to update the software, the installer will get an USB device with the updates to the last software version. The process is the following: 5.5.1. FROM NORMAL MODE On Functions –...
  • Page 25 INSTALLATION MANUAL TXD70 INTERFACOM, S.A Connect the USB memory with the update files to a USB connector. The available update files are displayed. The name of each one indicates the origin version and the destination version. If you know the origin version and the destination version of the update, select the adequate update file and press Accept.
  • Page 26: Navigator License Management

    INSTALLATION MANUAL TXD70 INTERFACOM, S.A 6. NAVIGATOR LICENSE MANAGEMENT As supplied, TXD70 normally has an evaluation license of the Sygic navigator. This is a free license valid for 14 days The navigator will work for 14 days. As this is a trial license, the text “This is a TRIAL” will be displayed.
  • Page 27 On the Navigator menu select “Activate”, and the device code is displayed. The device code appears, this code has to be sent to INTERFACOM, which returns another activation code. This code must be entered in the screen that appears when you press "Activate".
  • Page 28 INSTALLATION MANUAL TXD70 INTERFACOM, S.A With this purchase you will get the Sygic Navigator license with four cartography updates included. Sygic publishes a cartography update every 6 months. TXD70_Install_Manual_en_023.doc...
  • Page 29: Version Control

    INSTALLATION MANUAL TXD70 INTERFACOM, S.A 7. VERSION CONTROL DATE 03/03/2015 MODIFICATION Add functions at CONFIGURATION PARAMETERS Unify English and Spanish version of the manual DATE 23/03/2015 MODIFICATION GP70 as external GPS incorporated by default DATE 16/11/2015 MODIFICATION RT PARAMS 2 SmartTD Checkbox...
  • Page 30: Annex I: Hardware Test Summary Table

    INSTALLATION MANUAL TXD70 INTERFACOM, S.A ANNEX I: HARDWARE TEST SUMMARY TABLE TXD70 HARDWARE TEST IO (INPUT/OUTPUTS) MEANING EXPLANATION automatic An automatic test is started, the result on each Pin is test tested. If any of the pins does not work correctly, it is displayed onscreen.
  • Page 31 INSTALLATION MANUAL TXD70 INTERFACOM, S.A RS232 Pressing on each of the buttons, the serial ports are Verifies serial tested. A green or red circle indicates if the result is ports RS485 satisfactory or not. MEANING EXPLANATION The car has to be in the open for some minutes DATE before the measure is reliable.
  • Page 32 INSTALLATION MANUAL TXD70 INTERFACOM, S.A Pressing the button starts the automatic test. Verifies the correct functioning of the The test result is finally displayed For this test to be reliable, the TXD70 must have been for some seconds without power supply.
  • Page 33 INSTALLATION MANUAL TXD70 INTERFACOM, S.A MEANING EXPLANATION Verifies the correct Starts time count, driven meters and speed in km/h functioning of the Time calculated from the received distance signal. This is not Distance tachometer for the taximeter tachometer, but the terminal tachometer, Speed used in case no taximeter is activated in the software.
  • Page 34 INSTALLATION MANUAL TXD70 INTERFACOM, S.A MEANING EXPLANATION Checks the Cover the TXD70 light sensor to check that the detected value goes to the functioning of the low values. Point a light at the sensor to check that the detected light value light sensor goes up.
