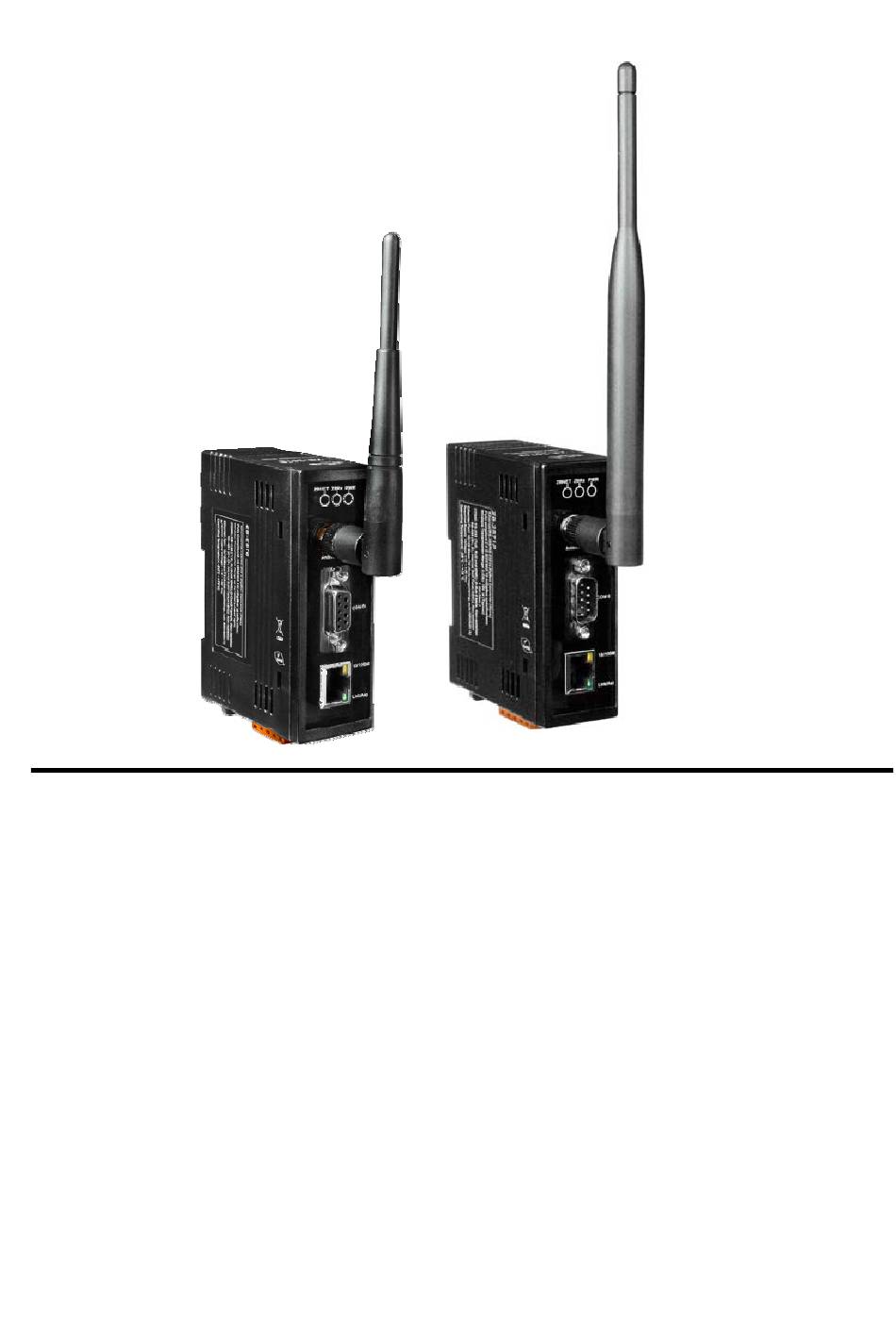

- Page 1 Quick Start Guide ZB2570/ZB2571 Become familiar with your series module in minutes! Page 1 ICP DAS, ZB‐2570/ZB‐2571 Series Quick Start Guide, Version 1.2...
- Page 2 Quick Start for the ZigBee Converter 1. ZB‐2570 and ZB‐2571 series Hardware Configuration 2. Installing the Configuration Tool Download the file from: http://ftp.icpdas.com.tw/pub/cd/usbcd/napdos/zigbee/zigbee_converter/zb_257x/utility Page 2 ICP DAS, ZB‐2570/ZB‐2571 Series Quick Start Guide, Version 1.2...
- Page 3 1. Before configuring the ZigBee converter, adjust the switch to the ZBSET position then switch on the power (Figure 1). After the configuration completed, adjust the switch to the ZBRUN position then switch on the power (Figure 2). Be sure to turn the power off before adjusting the switch. Figure 1 Figure 2 2. Af ter installing the ZigBee_Configuration_Utility_Ver_5.x.x, the executable file n be found at: Start\ \ICPDAS\ZigBee_Configuration_Utility_Ver5.x.x\ ZigBee_Configuration_Utility_Ver_5.x.x.exe 3. Connect the ZigBee converter using one of the hardware interfaces (RS‐232, RS‐485 or Ethernet; the default configuration interface is RS‐232) and execute the utility. Page 3 ICP DAS, ZB‐2570/ZB‐2571 Series Quick Start Guide, Version 1.2...
- Page 4 When the following screen is dis played: In the Environment Settings section: Choose the language. Choose the interfaces to connect (Ser ial Port/ Ethernet). Choose the module (ZB‐2570/2571) When the following screen is d isplayed: Choose the setting mode. ( ) Setup Wizard / Quick Setting/ Default Page 4 ICP DAS, ZB‐2570/ZB‐2571 Series Quick Start Guide, Version 1.2...
-
Page 5: Setup Wizard
2. Setup Wizard: The mode will take the user to complete the configuration step by step. A. Choose the rear device type. Rear Device B. Choose the interface for using. Page 5 ICP DAS, ZB‐2570/ZB‐2571 Series Quick Start Guide, Version 1.2... - Page 6 C. Choose operating mode for transmission. Here is a recommended mode. D. Choose configuration category. The detail will be shown in the section 5.2) Page 6 ICP DAS, ZB‐2570/ZB‐2571 Series Quick Start Guide, Version 1.2...
-
Page 7: Quick Setting
3. Quick Setting: The mode is set for the user familiar with ZigBee product in ICPDAS to ickly modify the setting. A. ZigBee setting Pan ID: The same Pan ID of each module will be connected. Node ID: ZigBee Net address, every Node ID should be set to different in a ZigBee network. RF Channel: Denotes the RF channel in the 2.4G MHz. Device mapping ID: When the operating mode is set to Modbus TCP mode, the ZigBee converter will follow the address to pass the Modbus TCP command to the rear‐end device. Silent interval time: Denotes that the timeout value about the modbus RTU command is receiving completed. Network presence detection interval time: In ZigBee slave, the value is set to check the connection is alive. Page 7 ICP DAS, ZB‐2570/ZB‐2571 Series Quick Start Guide, Version 1.2... - Page 8 Serial Port Setting: Here are the parameters of the interface RS‐232 and RS‐485. Baud Rate: The baud rate of the interface RS‐232 and RS‐485. Data Format: The data format of the interface RS‐232 and RS‐485. Parity Check: The parity check of the interface RS‐232 and RS‐485. Stop Bit: The stop bit of the interface RS‐232 and RS‐485. Ethernet Setting When ZigBee device be a client, there will appear the IP address configuration frame about target server. Page 8 ICP DAS, ZB‐2570/ZB‐2571 Series Quick Start Guide, Version 1.2...
- Page 9 Operating Mode ZB‐2570 Series ZB‐2571 Series ZigBee Security There are two ZigBee network certification methods. Pan ID certification: If ZigBee slave use the same Pan ID and channel, it will get the ZigBee networking. Address certification: There are only allowed the legal addresses to get the ZigBee networking which is set in ZB‐2550 series or ZB‐2570 series. All of addresses without set or duplicate addresses would not join the ZigBee network. Page 9 ICP DAS, ZB‐2570/ZB‐2571 Series Quick Start Guide, Version 1.2...
- Page 10 4. Default ose the option w ill set the parameters to initial value. ZB‐2570 Series Serial P ort Setting 115200, N,8,1 Pan ID 00 01 Node ID 00 00 Encryption Disable RF Channel 1 Serial Port Setting 115200, N,8,1 Operating Mode Transparent Mode IP 192.168.255.1 Mask 255.255.0.0 Ethernet Interface Setting Gateway 192.168.0.1 Port 502 ZigBee Network Certification Pan ID basis ZB‐2571 Series Serial P ort Setting 115200, N,8,1 Pan ID 00 01 Node ID ...
- Page 11 5. Configuration Message Error Module Select wrong COM port or wrong device. Please confirm the COM port number, dip switch at the “Set” position, and reboot the device. Connect IP Error The target IP address is no response. To confirm the IP address is correctly and the gateway is in the same IP segment. Page 11 ICP DAS, ZB‐2570/ZB‐2571 Series Quick Start Guide, Version 1.2...
- Page 12 Set Error The configuration has not completed. Please try again. D. Set Success The configuration has completed. Here can keep configure or click the power switch button in the utility to exit the ZigBee configuration utility. Close Utility Page 12 ICP DAS, ZB‐2570/ZB‐2571 Series Quick Start Guide, Version 1.2...
- Page 13 4. Appendix A. L ED Di splay Indicato r LED Status LED ZBNet Blinking ZigBee mesh not established (Green LED) Steady ZigBee mesh has been successfully created. ZigBee RxD Blinking Receive a data from other ZigBee modules. (Yellow LED) Steady unlight No data input. Blinking Watch dog enabled PWR Steady light power on (Red LED) Steady unlight Power off. B. The LED status of ZB2570 series: User will see the red LED and the green are light steady. If it receives any ZigBee signals, the ZigBee RxD LED will be blinking when receiving. The LED status of ZB2571 series: User will see the red LED light steady and the green LED blinking for ...
