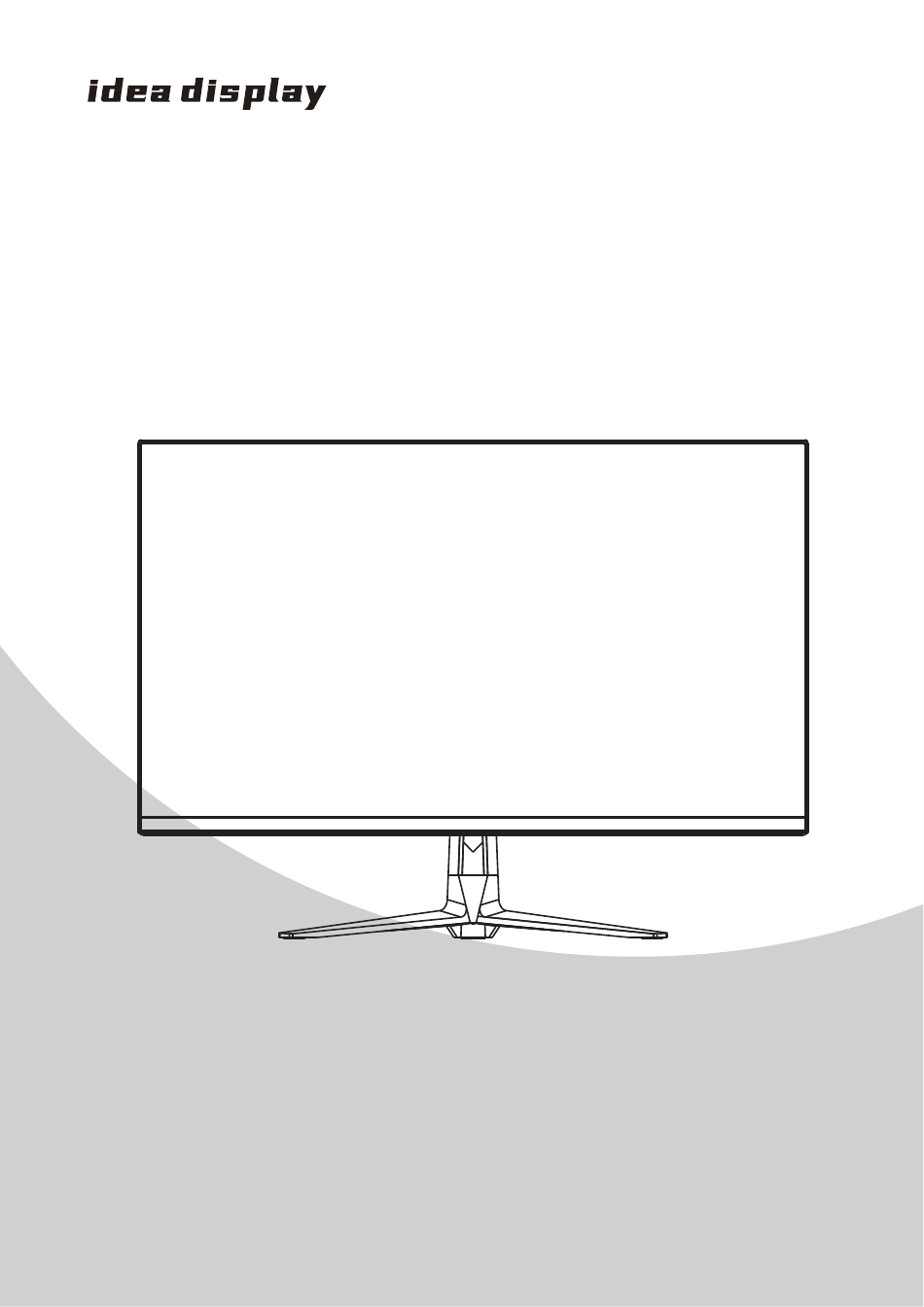

- Page 1 G27U Instruction Manual Please read this manual thoroughiy before use,and keep it handy for future reference...
- Page 2 Signal cable...
-
Page 5: Technical Drawing
Setup Guide Accessories Monitor Stand Stem Stand Base HDMI Cable DP Cable Power Adaptor and Power Cable User Manual Technical Drawing... -
Page 6: Monitor Inputs
Monitor Inputs DC 24V USB-A USB-A USB-B USB-C HDMI HDMI AUDIO OUT Controls&Setting The mon The VESA moun�ng is:100x100mm and the size of the screws is4xM4x10(not supplied)Do not screws longer than specified or damage will occur to the internal components. NOTE: As the monitor is considered heavy, please consult with a professional wall mount installer to perform GETTING STARTED MONITOR CONTROLS... -
Page 7: Initial Setup
Shortcut Key Guid e ◄ ► Activate the Signal Input Selection menu.Use to navigate and M to select the sour ce. Activeate the Line of Sight feature. Further press to cycle between the colors or tu rn off. Activeate the ECO Mode feature.Further press to cycle through the pr esets. INITIAL SETUP Connect the monitor to a power outlet. -
Page 8: Input Source
OSD Menu A. Input Source 3840x2160@144Hz HDMI1 Switch the signal input to Type-C,DP,HDMI1,HDMI2,or have Type-C the monitor Auto Select the source. Settings HDMI1 HDMI2 Settings HDMI1 3840x2160@144Hz B.Brightness/Contrast Brightness: Change the display brightness value 3840x2160@144Hz HDMI1 from 0 to 100. Contrast: Adjust the display contrast value from 0 to 100. - Page 9 D.Picture Quality Settings Sharpness: Change the display Sharpness value from 0 to 100. 3840x2160@144Hz HDMI1 Response Time: Turn the Response Time feature On or Off. Biack Balance: Change the display Biack Balance value Settings Black Balance from 0 to 20. Settings HDMI1 3840x2160@144Hz...
- Page 10 H.OSD Language: Change the OSD Menu display language. 3840x2160@144Hz HDMI1 OSD H Posi�on: Change the horizontal posi�on of the OSD Menu. OSD V Posi�on: Change the ver�cal posi�on of the Settings OSD Menu. Settings OSD Transparency: Change the transparency value of the Normal OSD Menu from 0 to 100.
- Page 11 Technical Specificaions Model G27U Resolution 3840x2160 Refresh 144Hz Brightness (MAX) 450cd/m² Panel Contrast Ratio 1000:1 Response Time (Typical) GTG 5ms Aspect Ratio 16:9 Viewing Angle 178°(H)/178°(V) Display Color 16.7M , 100% sRGB USB In 3.0x2 HDMI In 2.1x2 DP In 1.4x1...
- Page 12 is a gaming monitor brand that belongs to perfect Display Technology Co.,Ltd which focused on R&D display industry 16 years in China. We provide high quality yet affordable products that deliver the highest level of performance. Experiencing gaming at its best with If you have any questions and comments please do not hestate to contact us: E-mail:e-op@perfect-display.com.cn.
