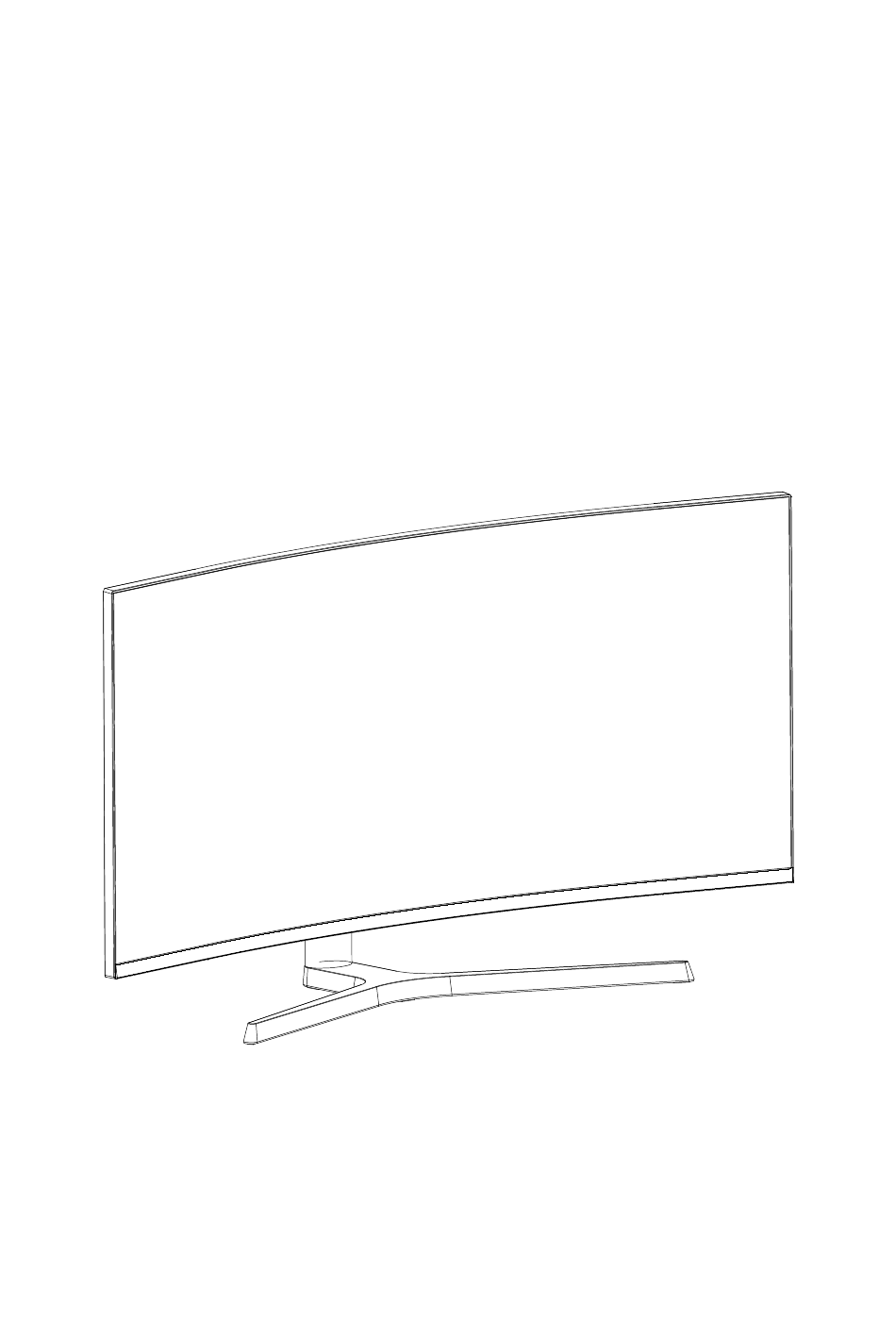

- Page 1 G34W-Gaming Monitor Please read this manual thoroughiy before use,and keep it handy for future reference...
-
Page 2: General Information
GENERAL INFORMATION Dear Customer, Thank you for having purchased this product. This document describes how to install and use the LCD colour monitor. Read this manual which contains information for correct, safe use carefully. Keep this manual at hand so that you can refer to it when needed. PRODUCT DESCRIPTION AND TYPE OF USE The LCD color monitor presents a very rugged structure. -
Page 3: Safety Precautions
WARNINGS POWER Only use the power unit provided to power the device. Check mains rating before plugging the power unit in. Do not pull the cable to unplug the device. SAFETY PRECAUTIONS Keep the device away from rain and humidity to prevent risk of fire and electrocution. Do not ... -
Page 4: Cleaning The Device
1.3.4 CLEANING THE DEVICE Rub delicately with a dry cloth to remove dust and dirt. Dip the cloth in neutral detergent if dirt cannot be eliminated with a dry cloth alone. Do not use volatile liquids (such a petrol, alcohol, solvents, etc.) or chemically treated clothes to ... -
Page 5: Monitor Inputs
Technical Drawing Monitor Inputs Power HDMI AUDIO OUT... - Page 6 Accessories 34inch Monitor DP Cable GETTING STARTED MONITOR CONTROLS Open the Main OSD Menu Select submeu Go Up on the Main OSD Menu increase the value of a selected item Go Down on the Main OSD Menu and decrease the value of a selected item Select signal source or Exit OSD Turn the monitor on or off...
-
Page 7: Initial Setup
Shortcut Key Guide ◄ ◄ Activate the Signal Input Selection menu.Use to navigate and M to select the source. Activate the ine of Sight feature. Further press to cycle between the colors or turn off. Activate the ECO Mode feature.Further press to cycle through the presets. INITIAL SETUP Connect the monitor to a power outlet. -
Page 8: Input Source
OSD MENU A. Input Source Resolution: 3440x1440@165Hz HDMI 3440x1440@165Hz Switch the signal input to DP1,DP2,HDMI,or have the monitor Auto Select the source. B . Brightness/Contrast Resolution: 3440x1440@165Hz 3440x1440@165Hz Brightness: Change the display brightness value from 0 to 100. Contrast: Adjust the display contrast value from 0 to 100. DCR: Turn the Dynamic Contrast Ratio feature On or Off. -
Page 9: Color Settings
C . Color Settings Resolution: 3440x1440@165Hz Picture Mode Standard Warm Low Blue Light 3440x1440@165Hz Gamma: Change the display Gamma value to:2.0,2.2,2.4. picture Mode: Change the pre-set mode to: Standard, Text, Game 1-3,Movie, or ECO. Color Temperature: Change the color temperature to:Normal,Warm,Cool,User. Hue: Change the display Hue value from o to 100. - Page 10 E . Display Resolution: 3440x1440@165Hz Wide Screen 3440x1440@165Hz Aspect Ratio: Change the image aspect ratio to Full Screen,Auto,4:3,5:4, or 1:1. F . Audio Resolution: 3440x1440@165Hz Mute Audio Source HDMI 3440x1440@165Hz Mute:Turm On or Off to mute the audio source. Volume: Change the audio source volume from 0 to 100. Audio Source: Audio source interface switching HDMI DP1 DP2...
-
Page 11: Multi Window
G . Multi-window Resolution: 3440x1440@165Hz Multl-Window Mediun TopRight 3440x1440@165Hz Multi-window: Adjust the muitl-window to off / PIP / PBP. H . OSD Resolution: 3440x1440@165Hz OSD H-Position OSD V-Position OSD Transparency OSD Time Out OSD Rotation Normal 3440x1440@165Hz Language: Change the OSD Menu display language. OSD H Position: Change the horizontal position of the OSD Menu. - Page 12 I . Other Resolution: 3440x1440@165Hz FreeSync (Adaptive Sync) MPRT Firmware Update Reset 3440x1440@165Hz FreeSync Mode: Turn FreeSync On or Off. HDR: Turn HDR On (requires HDMI 2.0 input). MPRT: On or Off. Cross: On or Off. Firmware Update: On or Off. Reset: Press this function to restore the original settings.
- Page 13 Technical Specificaions OG34RWA-165HZ Model Resolution 3440x1440 Refresh 165Hz Brightness (MAX) 400cd/m² Panel Response Time (Typical) MPRT 1ms 21:9 Aspect Ratio 178°(H)/178°(V) Viewing Angle Display Color 16.7M color HDMI In/Out Audio Power Consumption Typical 45W Power Source DC 12V 5A Operating Temperature 0~50℃...
-
Page 14: Register Your Product
1 year. idea display may require that you furnish proof of purchase details and / or comply with registration requirements before receiving warranty service.
