Page 3 Germany This document and extracts of it may only be reproduced or made available to third parties with the explicit authorization of Franka Emika GmbH. The content of this document has been carefully checked against compliance with the hardware and software described. However, discrepancies cannot entirely be ruled out, which is why we assume no liability for complete compliance.
Page 4: Table Of Contents
CONTENT OVERVIEW LEGAL FRAMEWORK • About this User Handbook Panda - CE out of the box solutions • • Notice of liability • Staff • Intended purpose of Panda • Panda’s conformities INTRODUCTION • Terms • About us - Franka Emika GmbH •...
Page 5 - Let Panda run a task run your task - automatically run your task - interactively Carrying out a risk analysis • • Practical tips for usage and positioning of Panda • Labeling on the equipment DELIVERY AND TRANSPORT • Delivery & transport •...
Page 6 MAINTENANCE, SERVICE & SUPPORT • Cleaning Updates • • Service & Support - Troubleshooting • Shut-down, storage and disposal RIGHTS OF USE & PROPERTY RIGHTS • Identification • Rights of use and property rights Franka Emika GmbH © October 2018...
Page 8: Legal Framework
SAFETY INSTRUCTION indicates processes that need to be strictly observed. Indications NOTICE A text section marked with NOTICE indicates that nonobservance of instruc- tions or measures may result in damage other than physical injury. Indicates where further information can be obtained. Franka Emika GmbH © October 2018...
Page 9: Panda - Ce Out Of The Box Solutions
Franka Emika as to their compliance with the Machinery Directive so that you as a user merely need to follow and confirm the steps in the CE check list. In this way, you can use Panda as an assembled machine according to the EU Machinery Directive 2006/42/EC.
Page 10: Staff
Panda. Operator The operator of Panda can be e.g. the entrepreneur, director of the institute, the employer or a delegate responsible for the use of Panda. The operator is respon- sible for compliance with regulations of occupational health and the operational safety ordinance (e.g.
Page 12: Intended Purpose Of Panda
• researching and testing gripping strategies • researching and testing interaction scenarios • researching and testing machine learning algorithms As long as the FCI is active, Panda may not be used for commercial purposes. Franka Emika GmbH © October 2018...
Page 13 • use in the vicinity of children Modifications of Panda (e.g. fittings, creation of drill holes, etc.) may lead to damage to the system. This is considered misuse and will lead to the loss of warranty and liability claims.
Page 14: Panda's Conformities
Panda’s conformities EU Machinery Directive – Panda If you have purchased a Panda – CE out of the box solution you are now the – CE out of the box solutions proud owner of the first smart assistant of its kind! Similar to any power tool bought at a hardware store you can operate Panda after a short check as a com- plete machine according to the EU Machinery Directive 2006/42/EC.
Page 15 “no” or if you have not purchased a CE out of System Components the box solution, the Panda system components (Arm, Control, Hand) are to be assessed independently by the user as to their compliance with the Machinery Directive.
Page 16 RoHS. For the corresponding confirmation, see Chapter/Product Conformity/Further Declarations. In addition to the European EMC Directive, Panda is also compliant to the US regulation FCC rule 47 CFR part 15 for electromagnetic compatibility. OSHA Within the United States of America, the operator is solely responsible to be com pliant to the OSHA regulations (29 CFR part 1910) and to be compliant to public laws.
Page 17 WARNING Functionalities and Features of Panda offers functionalities and features of various safety levels. They are Various Safety Levels described in the chapter “Safety Concept/ Operating modes of Panda”, where a clear distinction is made between functionalities that are safe to use and others which are only available as features.
Page 18 LEGAL FRAMEWORK Perfect condition WARNING Panda may only be used in perfect condition, according to its intended purpose and with possible dangers and risks in mind. Misuse can cause personal and material damage. The manufacturer is not liable for damages caused by misuse.
Page 19 The Arm and Control contain sensitive electromechanical components. These can be decalibrated or damaged by shock! Therefore: • Avoid shocks or setting the device down roughly. • Always store and transport devices in their original packing, even during transport inside buildings October 2018 Franka Emika GmbH ©...
Page 20: Introduction
INTRODUCTION • Terms • About us - Franka Emika GmbH • This is Panda - The Panda Power Tool - Some features - Equipment overview - Scope of delivery and additionally required equipment Franka Emika GmbH © October 2018...
Page 22 These so-called CE out of the box solutions can be acquired by the customer. After carrying out a quick check, Panda - CE out of the box solutions can be used immediately without the need for further risk assessment.
Page 23 Tasks. Research App Research App Research Apps are apps specifically customized for research purposes Task Task A Task in Desk represents an entire automation routine. A Task consists of one or several Apps October 2018 Franka Emika GmbH ©...
Page 24 INTRODUCTION Betreiber operator The operator of Panda can be for example the entrepreneur, director of the institute, the employer or a delegate responsible for using Panda. For further information, see chapter: Legal Framework. Anwender user The user can use Panda within the limits defined by the operator and the admin.
Page 25 Grip or directly from Desk. Guiding Taster Guiding Button The guiding button is located on the grip of the Pilot. Using this button you can guide the Arm, as long as the enabling button is half-pressed too. October 2018 Franka Emika GmbH ©...
Page 26 Emergency Stop until the arm comes to rest. Cartesian Cartesian The Cartesian Space is the (mainly) three dimensional space in which all axes (x, y and z) are perpendicular to each other. Franka Emika GmbH © October 2018...
Page 27 Safety Concept/ Hazardous and safe Areas. Interaktion Interaction Panda is designed to be easily and safely programmed and operated, and to be able to quickly learn and relearn new tasks. When Panda is in “monitored stop” mode or is being...
Page 28 Interface (FCI) for researchers franka_ros franka_ros franka_ros is our ROS interface with ROS control and MoveIt integration, which can be accessed https:/ /www.github.com/fran- kaemika/ – franka_ros is part of the Franka Control Interface (FCI) for researchers Franka Emika GmbH © October 2018...
Page 30 We presented the Panda “power tool” at the Hannover trade fair 2017. The sys- tem can be operated via Apps like a smartphone and be taught new Tasks within a few minutes, without requiring any programming skills.

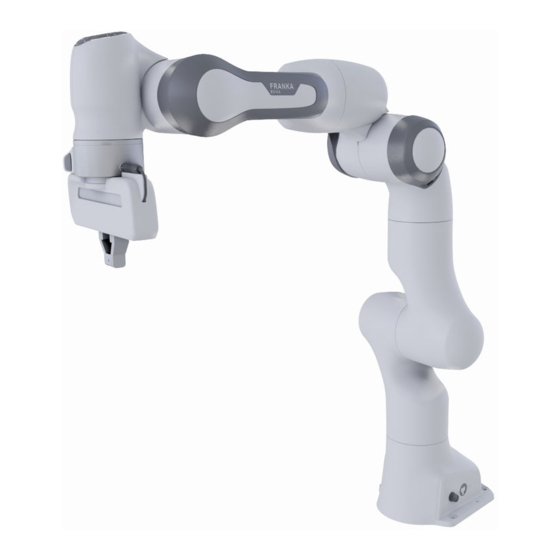

Page 32: This Is Panda
Panda is our sensitive and extremely versatile power tool. The torque sensors in all seven axes enable Panda to manipulate objects in a skillful and sensitive way. Yet they also enable the user to interact directly and intuitively with the Arm. By...
Page 33 A Task can be composed in Desk by arranging Apps, which are then parametrized directly at the robot in the operating area. Pilot is the interface integrated in the Arm, which allows for smooth interaction Teaching by demonstration between Arm and Desk. October 2018 Franka Emika GmbH ©...
Page 34: Some Features
The Cartesian movement of a robot always depends on the reference coordinate system, which can be configured for Panda via the configuration of the end effector in the admin section of Desk. Redundancy The Arm can reach a certain Cartesian pose with various joint configurations.
Page 35 If the Arm is in intended contact with its surroundings, sensor signals of the Generating forces seven torque sensors can be used to generate a defined force on the point of contact. October 2018 Franka Emika GmbH ©...
Page 36: Equipment Overview
• the 3-way external enabling device is connected at the base of the Arm (con- nector X4). Half pressing it will activate Panda (Attention – always step out of the safe area first) and programs can be started via Desk.
Page 37 The fingers can also be simply mounted differently in order to increase the span length of the gripper. • The plug is simply plugged into the connector port on the grip of the Arm. The Control October 2018 Franka Emika GmbH ©...
Page 38: Scope Of Delivery And Additionally Required Equipment
THIS IS PANDA Scope of delivery and additionally required equipment In the box Quick guide Control Connection cable Unlocking tool • Main components • • Control • Accessories • Connection cable 2.5m (for connecting Arm and Control) • 2 x unlocking tool •...
Page 39 Screw driver for connecting the functional earth • Hex key size 4 for attaching the Hand to the end effector flange of the Arm • Level for ensuring the horizontal installation of the Arm October 2018 Franka Emika GmbH ©...
Page 42 Pilot user interface technical data is subject to change mounting flange DIN ISO 9409-1-A50 if you have not purchased a Panda - CE out of the installation position upright box solution, or don’t comply with the CE-checklist the weight...
Page 43: Specifications
The Arm must only be handled at the positions marked in the picture. The mechanical zero position of the joints is reached when the two triangles on each side of the gap between the Arm segments align. October 2018 Franka Emika GmbH ©...
Page 44 SPECIFICATION Operating space Dimensions in [mm] Side view of motion range 1,190 - 855 Dimensions in [mm] View from above Footprint View from below Franka Emika GmbH © October 2018...
Page 45 2 x DIN7984 M6X12 ST 8.8 screw • 1 x ISO2338B 6X10 H8 A2 cylindrical pin • Tools (not included in scope of delivery of the Hand): • Hex key, size M4 Interface Hand to fingers October 2018 Franka Emika GmbH ©...
Page 46 Hand to end effector flange [m] -0.01 0.03 Inertia sensor [kg x m2] 0.001 0.0025 0.0017 Transformation matrix of end effector flange to Hand (center point of finger tips when closed) 0.707 0.707 -0.707 0.707 0.1034 Franka Emika GmbH © October 2018...
Page 47 Control dimensions in millimeters 441.80 see chapter: Correct Site of Installation/ Ambient conditions. Ambient conditions Arm, Control and Hand are manufactured in a production company certified Production standard according to ISO 9001 in Germany October 2018 Franka Emika GmbH ©...
Page 48: Product Conformity
PRODUCT CONFORMITY Declaration of Incorporation • - Control with Arm • Declaration of Conformity - Hand • Further statements Franka Emika GmbH © October 2018...
Page 54: Correct Site Of Installation
CORRECT SITE OF INSTALLATION Ambient conditions • - Arm and Hand - Control Franka Emika GmbH © October 2018...
Page 56 +5°C to + 45°C (extended) • -10°C to + 60°C (transport) • +5°C to + 25°C (storage) Relative air humidity • 20 % - 80 %, non-condensing Set-up altitude • <= 2000 m above sea level Franka Emika GmbH © October 2018...
Page 57 • the screw connection must be laid out correctly and must hold tight • after 100 hours of operation the screws need to be tightened again with the tightening torque indicated! October 2018 Franka Emika GmbH ©...
Page 58 IP x0: no protection against water Ambient medium • • free from flammable substances (dust, gas, liquid) • free from aggressive media • free from corrosive substances • free from “flying parts” • free from spraying liquids Franka Emika GmbH © October 2018...
Page 59 240 V and mains frequencies from 47 to 63 Hz. The mains needs to be of type overvoltage category II (OVC II) or OVC I. When using Franka Emika’s emergnecy stop device (#78456374), mains needs to be protected with a max.
Page 60 CORRECT SITE OF INSTALLATION NOTICE If a fuse in the upstream power supply of the Control blows, Panda is dis- connected from the power supply. The Arm reacts with braking as much as possible before the fail-safe locking bolts catch in the 7 axes. If the residual energy is not sufficient to bring the Arm to a full stop, the locking bolts may damage the Arm.
Page 62 - Let Panda run a task - Run your task - automatically - Run your task - collaboratively • Carrying out a risk analysis • Practical tips for usage and positioning of Panda • Labeling on the equipment Franka Emika GmbH © October 2018...
Page 64 Furthermore, it is to be ensured that users always pay attention and are aware of potential dangers. WARNING Persons using Panda in any form must be in full possession of their physical and mental powers at all times. Failing this, serious injuries may occur. Therefore: •...
Page 65 Persons handling Panda or parts of it need to have received: Transport and logistics • Training for handling sensitive devices The person in charge of installation requires the following expertise: Installation • advanced expertise in electrical installations and safety engineering...
Page 66 Electrical hazards • electric shock when touching live part • when wiring the emergency off installation in particular • when operating Panda with damaged supply cables or incorrect electrical installation • Environmental hazards • Crushing, shearing, impact, puncture, penetration •...
Page 67 The primary emergency stop system must safely separate the Control from the mains power supply. One potential version is the Emergency Stop Device contained in the optional Panda package. As soon as the power is disconnected, the fail-safe safety locking bolts of all 7 axes instantly block further movements of the Arm.
Page 68 2 according to IEC 60204-1). • If Panda is to be stopped as quickly as possible, with the power to the axes being cut off and the locking bolts locking the Arm mechanically, the safegu- ard can be integrated between Panda’s Control and the mains power supply.
Page 69 Arm to the base SAFETY INSTRUCTION Action: In case of acute mortal danger, the Arm needs to be immediately pushed or Pushing away manually pulled out of the dangerous position manually. October 2018 Franka Emika GmbH ©...
Page 70 Moving of fingers without electrical When the device is turned off, the Hand is not supplied with power either. A power jamming between the fingers of the Hand can be loosened by simply pulling the finger open. Franka Emika GmbH © October 2018...
Page 72 Our operating philosophy consists of three main steps, that you may repeat as many times as you wish: • teach your task: teach Panda a task, by taking the Arm by the hand • step back & check: then step outside of the Safety Area and check whether the taught task is correctly executed •...
Page 73 Panda is in. In addition, there is a circular status light in the middle of the Pilot’s Disc. Its color also indicates Panda’s status. When a user is interacting with the Arm the middle status light on the Pilot is switched off to increase visibility and usability.
Page 74 SAFETY CONCEPT Teach Panda a task Brief description Keep both buttons on the grip of the Arm pressed (enabling & guiding buttons) and the Arm can be moved freely (but limited according to the corresponding gui- ding mode) by guiding it. This mode is used for teaching new poses or for manually moving the Arm to another pose.
Page 75 In addition the emergency stop device could be used in order to cut off the power supply completely, should this become necessary in an emergency. --> Only now can a movement of the Arm be executed, e.g. using the play button in Desk. October 2018 Franka Emika GmbH ©...
Page 76 SAFETY CONCEPT Let Panda run a task Brief description After Panda has learned and mastered its Tasks, they shall be executed autono- mously. This can be done in two ways: • automatically: The person is safely separated from dangers presented by the Arm (in ISO 10218, respectively ANIS/RIA R15.06 this is referred to as “automatic mode”):...
Page 77 In addition, this common operating area is usually rarely used by human and robotic arm at the same time. In this case any danger presented by the Arm is limited and therefore easier to take into account. October 2018 Franka Emika GmbH ©...
Page 78 Safety Area of the robot arm and are harmed as a result. Safe- guards can be installed around Panda to prevent access to the hazardous area (e.g. a safety fence with access monitoring, safe laser scanners or similar safeguards).
Page 79 Arm, also and in particular in an unpowered state. Monitored stop Once the safety locking system has been unlocked Panda is in the mode “mon- itored stop”. A safety system will ensure that Panda does not move. Should an unexpected movement occur nevertheless, the safety locking system is activat- ed and the Arm will be locked mechanically.
Page 80 Additional features Franka Emika is continuously working on developing Panda further. The features listed below have not yet been entirely assessed as to their safety. You can there- fore not rely on their availability and functioning. This needs to be taken into consideration during a risk assessment carried out by the customer.
Page 81 Panda. Then you can start using Panda straight away. If you have not purchased a Panda CE out of the box solution or have answered some questions on the CE check list with “no”, our CE assessment according to the Machinery Directive is not valid.
Page 82 DO NOT place your head or other body parts between or underneath segments of the robotic arm! RIGHT WRONG NEVER place body parts (especially hands, fingers) between the robotic arm or its end effector and stationary objects. Franka Emika GmbH © October 2018...
Page 83 Eye protection following applies: if the fingers or the objects have a diameter of less than 5cm WARNING (and thus be able to injure the eyes), during interactions with Panda (teaching, interactive work) protective goggles are to be worn. October 2018...
Page 84 Functional earth label on Arm Indicates where a functional earth can be connected on the base of the Arm. Franka Emika GmbH © October 2018...
Page 85 Name plate: Control Name plate: Hand Name plate: Emergency Stop Device Safety label: Arm October 2018 Franka Emika GmbH ©...
Page 88 If damages are found, the devices are to be taken out of operation (e.g. ‘disabled’ label). In cases of doubt, contact the manufacturer. Delivery Panda is delivered in original packaging. The delivery scope is described in chapter: Introduction/ This is Panda/ Scope of delivery and additionally required equipment.
Page 89 • Make sure that the end effector has been dismounted before bringing the Arm into the transport position. • Make sure that the operating area allows to bring the Arm into transport position safely. October 2018 Franka Emika GmbH ©...
Page 90 MOUNTING & INSTALLATION Preparing the installation site • • Unpacking Panda • Mounting the Arm • Mounting the Hand • Unpacking and mounting the Control • Wiring and electrical installation Franka Emika GmbH © October 2018...
Page 92 Two holes for dowel pins (diameter 6mm H7) in the mounting flange allow for accurate repeatable assembly of the Arm using 2 x 6mm H8 pins • A detailed mounting layout for the baseplate is described in chapter: Cor- rect Site of Installation. Front Franka Emika GmbH © October 2018...
Page 93 First take out the accessories and cables and set them aside. • Then take out the Control by grasping it with one hand on each side of the casing and set it aside as well. October 2018 Franka Emika GmbH ©...
Page 94 The Arm and Control contain sensitive electromechanical components. These can be decalibrated or damaged by shock! Therefore: • Avoid shocks or setting the device down roughly • Always store and transport devices in their original packing, even during transport inside buildings Franka Emika GmbH © October 2018...
Page 95 Make sure that the Arm is adequately ventilated • Make sure the Arm is not exposed to direct sunlight • Make sure that the Arm is not painted, pasted up with something or enwrapped October 2018 Franka Emika GmbH ©...
Page 96 Place the Control in its designated position or attach it in a rack designed for 19 inch units (the control has 2 HUs - hight units) • Note that the standard length of the connection cable is 2.5m! Franka Emika GmbH © October 2018...
Page 97 Damaged or inadequate wires and electrical installations can cause serious personal injury by electric shock, as well as material damage Therefore: • Only use Panda when in perfect technical condition • The installation of the emergency stop system may only be carried out by qualified personnel.
Page 98 Carefully place the connector port onto the connector X1, the triangular marking pointing upward. • By turning the movable front part of the connector port, the plug itself is pulled into the connector. Turn hand-tight. Franka Emika GmbH © October 2018...
Page 99 Place the external activation device within easy reach of the user. • Make sure that the external activation device is closed. To operate Panda via the intuitive programming interface Desk and using Apps: Connecting your operating device • Connect your interface device (tablet, notebook, PC, etc.) with a network...
Page 100 Control and then connect the Control with the power supply (100-240V/47-63Hz frequency) If Franka Emika’s emergency stop device (#78456374) is used to take the pow- er from the system (e.g. to do installation work within the Safety Area), always...
Page 101 Panda from the mains power supply • never connect or disconnect the Hand, while Panda is not safely discon- nected from the mains power supply NOTICE The connection cable does not support being folded, rolled over or stepped on.
Page 102 START-UP Switching on • • Connecting a user interface device • Software setup • Guiding • Testing the emergency stop system • Switching off Franka Emika GmbH © October 2018...
Page 104: Start-Up Switching On
 Do not switch on wet devices  Switching on Now you may switch on Panda for the first time: • Make sure that the external power supply is provided. • Now switch on the Control. The power switch is located on the back of the Control.
Page 105 Panda is possible Attention! Attention: Panda is enabled for movement and could start any blue Activated moment Automatic Panda is carrying out an automatic program and is moving independently green execution yellow Locked Panda is locked mechanically or cannot be used pink...
Page 106: Connecting A User Interface Device
Ethernet cable to the X5 connector on the base of the Arm (see in chapter: Mounting & Installation). • The interface device must obtain the IP address automatically via DHCP. • Once Panda has been switched on, the interface device will automatically be assigned an IP address. • Then the URL “robot.franka.de”...
Page 107 There must always be one admin defined, this means that the last admin can- not be deleted. Every user must be assigned a role, several users can have the same role. The current version of Panda only supports the following one: • Admin: no restrictions to authorizations. The admin can edit all parameters and create new Tasks.
Page 108 START-UP WARNING If the end effector is configured incorrectly, Panda will operate based on the wrong masses and mass inertia ratios of the end effector. This means that Panda will regulate to the wrong parameters and gravitational forces will not be entirely compensated.
Page 109 The input mask opens and technical data such as mass, mass inertia matrix etc. can be entered. A correct configuration is essential for operating Panda. When configured incor- rectly, gravitational forces are not entirely compensated and the Arm regulates to the wrong target values.
Page 110: Guiding
If Panda operates assuming a lower mass, the Arm will sink when the guiding button is pushed, whereas if it operates assuming a higher mass, it will rise.
Page 111 Arm to facilitate easy operation. NOTICE Panda allows you to switch guiding modes. They are used for limiting prede- fined movements during guiding. A guiding mode can for example only allow the Cartesian directions X, Y and Z, while rotations around these axes are locked.
Page 112: Testing The Emergency Stop System
Please carry out the following SAFETY INSTRUCTIONS exactly as described below: • Panda must be in the state of “monitored stop”. The locking bolts of the safety locking system need to be open and the Arm may not move. •...
Page 113: Switching Off
For switching off, be outside the Safety Area. Via the option “shut-down” in the Shutting down sidebar of Desk the safety locking system is activated and Panda will be shut down. Disconnect Panda from the mains after shutting down the system (e.g. using the Switching off power switch on the back of the Control).
Page 114: Interacting & Programming
Direct human-robot interaction • Creating a task in Desk - Desk overview - An app for everything - Configuring apps • Executing the task - Manual unlocking of Arm and Hand in cases of emergency Franka Emika GmbH © October 2018...
Page 116: Direct Human-Robot Interaction
Arm can no longer be moved. Note: The left button is a three-stage enabling button and needs to be half-pres- sed for guiding. When pressed all the way Panda will stop the guiding mode and make the Arm immovable.
Page 117 Desk is the software used for progamming and operating Panda. When the guiding button and the enabling button are pressed on the grip, Panda Guiding is in guiding mode and can be moved manually. Once the buttons are released, guiding mode is deactivated and Panda can no longer be moved.
Page 118: Creating A Task In Desk
You can simply drag them onto the timeline via Drag-and-Drop, in order to configure them for the next step. In the side bar you can see which guiding mode Panda is in. In other words, whether, for example, translational or rotational movements are enabled in guiding Panda.
Page 119 Desk mode: using the direction buttons on the disc of the Pilot you can navigate in Desk and the context menus of Apps in the timeline. October 2018 Franka Emika GmbH ©...
Page 120 Free: the Arm can be moved completely freely, all 7 joints can be moved freely • User: the user can freely define the guiding behavior in this mode, meaning that it is possible to define for each Cartesian translation and rotation axis if it is movable or immovable Franka Emika GmbH © October 2018...
Page 121: An App For Everything
After creating a Task in Desk, all Apps need to be taught, this means that all Teaching necessary parameters of the Apps need to be configured so that Panda knows how to execute the App. If not all Apps of a Task have not yet been fully parametrized.
Page 122: Executing The Task
INTERACTING & PROGRAMMING Executing the task • Before letting Panda execute a task by way of trial, take note of the safety instructions in chapter: Safety concept/ (in particular: Step Back and check). • In addition, the unlocking tool must be within immediate reach of the Arm.
Page 123: Manual Unlocking Of Arm And Hand
• Never carry out an emergency unlock when the Arm is switched on – Panda must always be safely disconnected from the power supply before an emergency unlock There are several possibilities to move the Arm even without a power supply in Manually moving the Arm case of emergency.
Page 124 • Never carry out an emergency unlock when the Arm is switched on – Panda must always be safely disconnected from the power supply before an emergency unlock. Moving the fingers of the Hand When the device is turned off, the Hand is not supplied with power either. A...
Page 126: Maintenance, Service & Support
MAINTENANCE, SERVICE & SUPPORT Cleaning • • Updates • Service & Support - Troubleshooting • Shut-down, storage and disposal Franka Emika GmbH © October 2018...
Page 128: Cleaning
• Arm, Control and Hand • Cleaning of components is only permissible when Panda is safely discon- nected from the power supply (control disconnected from the mains) • Switching off and unplugging the device is to be carried out by qualified users •...
Page 129: Service & Support
Troubleshooting Panda is lit white: Possibly one of the two buttons on the grip has not been pressed prop- Teaching/Guiding is not functioning erly. Release both buttons once again and press them again. Pay attention, that the En- abling Button has not been completely pressed down, otherwise all movement is stopped! Panda flashes white: The robot finds itself just before the joint angle limit.
Page 130: Shut-Down, Storage And Disposal
Then the browser window of Desk can be closed. Shut-down, storage an disposal Disposal Shut-down, storage and disposal of Panda may only take place according to the relevant country-specific laws, standards and regulations. Battery The Control contains a coin cell battery. This battery is to be disposed of separate- ly according to the relevant country-specific laws, standards and regulations.
Page 134 Rights of use and property rights Granting of rights of use The terms of use for Panda, the operating software, the apps etc. are provided in a separate document. In this user handbook, we refer to protected trademarks that are not designated Protected trademarks explicitly as such in the continuing text.
