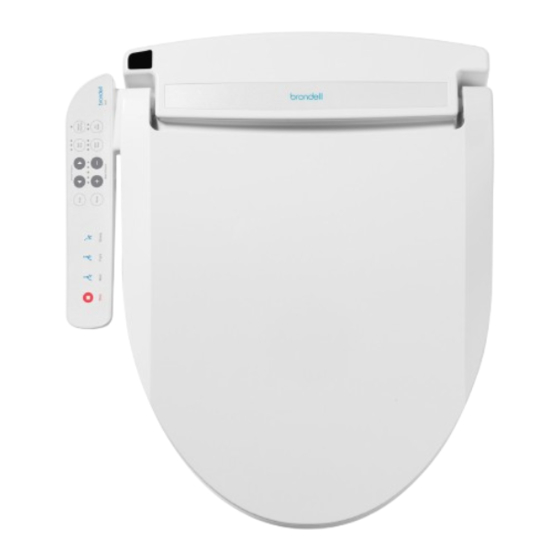

  • Page 1 Owner’s Manual SWASH BL67 / EM417 ADVANCED BIDET SEAT...

  • Page 2: Table Of Contents

    BL67 / EM417 OWNER'S MANUAL Table of Contents This manual contains important safety information. Before operating the bidet, please read this manual thoroughly, and retain it for future reference. GENERAL INFO TECHNICAL INFO PRODUCT SPECIFICATIONS SAFETY INFORMATION MAINTENANCE PRODUCT INFORMATION Seat Cleaning &...

  • Page 3: Safety Information

    • If the product produces a strange noise, a burning smell, or emits smoke, unplug it immediately from the electrical outlet and contact Brondell. Failure to do so may result in electric shock or fire. • Do not insert any wires or sharp objects into any product gaps. This may result in electric shock, fire, or product damage.
  • Page 4 • Do not use the product if it is not working properly. Please unplug the product immediately, close the main water supply valve, and call the Brondell Service Center at 888-542-3355. Failure to do so may result in electric shock, fire, or flooding.
  • Page 5 • Never operate this product if it has a damaged cord or plug, if it is not working properly, if it has been dropped or damaged, or dropped into water. Contact the Brondell Service Center for examination and repair.
  • Page 6 SAFETY INFORMATION (IMPORTANT SAFEGUARDS) For those with certain medical or mobility issues in the bathroom, ATTENTION we recommend our Swash 1400 or Swash 1000 bidet seats, as their mounting systems are engineered for the most secure transitions from wheelchairs or walkers. GROUNDING AND GFCI OUTLET INSTRUCTIONS Ground GFCI Outlet This product should only be used with a grounded GFCI (Ground Fault...
  • Page 7 SAFETY INFORMATION (IMPORTANT SAFEGUARDS) OPTIONAL GROUNDING INSTRUCTIONS This product is for use on a nominal 120V circuit, and has a grounding plug that looks like the plug illustrated in sketch A in Figure 1. A temporary adapter, which looks like the adapter illustrated in sketches B and C, may be used to connect this plug to a 2-pole receptacle as shown in sketch B if a properly grounded outlet is not available.

  • Page 8: Product Information

    PRODUCT INFORMATION Product Features Stainless Steel Nozzle Nozzle Oscillation Stainless steel resists soiling and bacterial The Move function provides a massaging, contamination for enhanced hygiene. oscillating cleanse during the wash cycle ensuring a thorough and comfortable wash. Posterior and Feminine Warm Water Wash Gentle Wash Function Experience the ultimate in clean with Activates a preset wash cycle at the softest...

  • Page 9: Product Dimensions

    PRODUCT INFORMATION Product Dimensions Elongated Top View 20.7 in 11.4 in 15.9 in 18.5 in 8.1 in 2.1 in Round Top View 19.5 in 10.6 in 8.1 in 15.9 in 18.5 in 2.1 in Required Distance Between Mounting Holes 4.72 in – 8.27 in...

  • Page 10: Product Parts

    PRODUCT INFORMATION Product Parts 2. Seat Sensor 3. Warm Seat 4. Warm Air Dryer (EM417 model only) 5. Nozzle Assembly 6. LED Nightlight Control Panel 8. Power Plug 9. Water Inlet with Mesh Filter 10. Drain Plug 11. Mounting Plate 12.

  • Page 11: Installation Parts

    PRODUCT INSTALLATION Installation Parts Mounting Bolt (2) 6. Adjustable Brackets (2) 2. Rubber Cone Washer (2) T-Valve Connector with 3. Flat Washer (2) Rubber Washer 4. Nuts (2) 8. Bidet Hose 5. Mounting Plate...

  • Page 12: Before Installation

    If your fixture only has top-side access to the mounting bolts that hold the seat to the toilet, you will likely need to purchase the Swash Bidet Seat Top Mount Hardware Kit, found on brondell.com. CHECK FOR A CONCEALED TOILET FILL VALVE Many modern toilets have sleek designs intended to cover and camouflage plumbing connections, which make a standard Swash installation difficult or impossible.

  • Page 13: Swash Installation

    PRODUCT INSTALLATION Swash Installation Please read these instructions carefully before installing the Swash. Failure to do so could result in flooding, leaking or damage to the product. NOTE: Steps may vary by type of seat and toilet 1. Existing Toilet Seat Removal a.
  • Page 14 PRODUCT INSTALLATION Swash Installation c. Slide rubber cone washer, flat washer, and then nut onto mounting bolts under the toilet bowl and tighten to keep mounting plate in place. 6. Connect the Bidet Hose to the Seat Connect the plastic side of the bidet hose to the water inlet. Hand-tighten to secure.

  • Page 15: External Bidet Filter Installation

    Swash. The bidet filter should be changed every six months, and can be purchased online at brondell.com. 1. Turn Off Water Supply Valve and Flush Toilet.

  • Page 16: Operating The Swash

    OPERATING THE SWASH BL67 / EM417 Control Panel Eco Mode Button Nozzle Cleaning Button Seat Temperature Button Water Temperature Button Water Pressure and Nozzle Position Controls Dryer Temperature Controls (Dryer on EM417 model only) Pulse Button Gentle Mode Button Dry Button (EM417 model only) Strong Wash / Move Button...
  • Page 17 OPERATING THE SWASH BL67 / EM417 Control Panel 1. Stop Button 9. Nozzle Cleaning Button Stops all wash and dry functions Press this button to initiate Nozzle Cleaning currently operating. when not sitting on the seat, or while seat sensor is deactivated. For more nozzle 2.

  • Page 18: Using The Bl67 / Em417

    OPERATING THE SWASH Using the BL67 / EM417 Warm Air Dryer Function (EM417 model only) NOTE: The wash functions will not work Press the Dry button to activate the Warm Air unless the sensor in the seat detects someone Dryer. The dryer will run for two minutes and sitting down (with the built-in skin conductivity turn off automatically.

  • Page 19: Special Mode Operations

    OPERATING THE SWASH Special Mode Operations Eco Mode In this mode, the water in the tank and the seat temperature can be reduced to one of two different energy-saving settings. Standard Eco Mode: Press the Eco Mode button until the yellow indicator light is on for Low energy-saving, and the seat and water temperature will be heated to 89.6 °F.
  • Page 20 OPERATING THE SWASH Special Mode Operations Activating / Deactivating Silent Mode Sleep Mode 1. To activate Silent Mode, press and hold the In Sleep Mode, the Swash essentially “ – “ Water Pressure/Dry Temp button for powers down. The Nightlight and the side arm four seconds.

  • Page 21: Technical Info

    TECHNICAL INFORMATION Product Specifications BRONDELL SWASH ADVANCED BIDET SEAT Model BL67-EW, BL67-RW / EM417-EW, EM417-RW Power Voltage 120V / 60Hz Max Power Consumption 870W Supply Water Pressure 9.95 psi – 106.7 psi Dimensions Elongated: 18.5 in x 20.7 in x 5.7 in / Round: 18.5 in x 19.5 in x 5.7 in BL67 Weight Elongated: 11.24 lbs / Round: 10.8 lbs...

  • Page 22: Maintenance

    Wash off any substances that come in contact with the seat as soon as possible. If necessary, replacement seat parts can be purchased through Brondell customer support. Nozzle Cleaning 1.

  • Page 23: Cleaning The Mesh Filter

    MAINTENANCE Cleaning the Mesh Filter & Product Storage Cleaning the Mesh Filter Cleaning intervals will differ depending on use and water quality. It is recommended to check the filter at least once a year. 1. Turn off the water supply and hold the toilet’s flush lever down until all of the water has drained from the tank.

  • Page 24: Troubleshooting

    If the bidet appears to be operating abnormally, please review the troubleshooting tips before calling the Brondell Service Center as most issues are easily resolved with a few simple steps. If you are unable to resolve the issue after checking the following items, please call the Service Center at 888-542-3355, Mon–Fri, 9am–5pm PST, or email us at support@brondell.com.
  • Page 25 TECHNICAL INFORMATION Troubleshooting Problem Possible Cause(s) Solution(s) Low water flow or 1. Clogged filter 1. Remove, clean, and reinstall mesh filter spray pressure (see maintenance section on page 21). 2. Water supply valve not 2. Check that the water supply valve at wall is opened fully fully open.
  • Page 26 TECHNICAL INFORMATION Troubleshooting Problem Possible Cause(s) Solution(s) Water leaks from 1. Water leaking from the T-valve 1. Make sure that the rubber gasket is areas other than inserted correctly into the T-valve (flat the nozzle side down with lip pointing up towards the toilet tank connection) and firmly tighten the connector.

  • Page 27: Warranty

    BRONDELL reserves the right to make such inspections as may be necessary in order to determine the cause of the defect. BRONDELL will not charge for labor or parts in connection with warranty repairs for the first year from date of purchase on all products except those that may be subject to commercial use limitations.
  • Page 28 #20BL67EM417-0921...
