Table of Contents

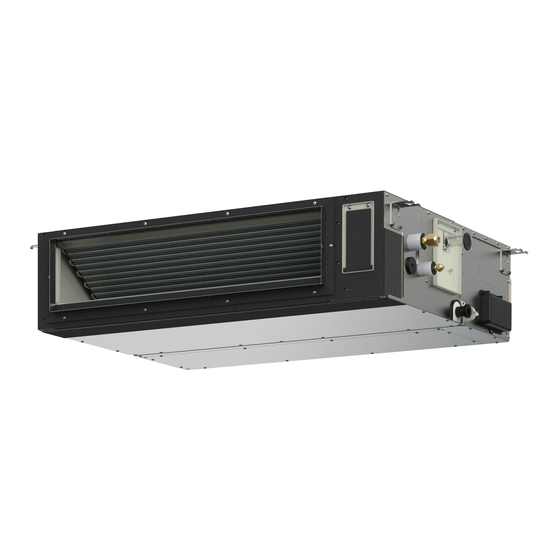

Middle Static Pressure Duct
<At horizontal installation>
<At vertical installation>
Model No.
INDOOR UNIT
Middle Static Pressure Duct
(Type F3)
S-3650PF3E
S-6071PF3E
S-1014PF3E
OUTDOOR UNIT
Single Split
See page 11.
(Type F3)
ENGLISH
Before operating the unit, read these operating instructions thoroughly and
keep them for future reference.
Panasonic Corporation
1006 Kadoma, Kadoma City, Osaka, Japan
Operating Instructions
Air Conditioner
WEB-ACXF55-27532-EN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the S-3650PF3E and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Panasonic S-3650PF3E

Summary of Contents for Panasonic S-3650PF3E

  • Page 1 Before operating the unit, read these operating instructions thoroughly and keep them for future reference. <At vertical installation> Model No. INDOOR UNIT Middle Static Pressure Duct (Type F3) S-3650PF3E S-6071PF3E S-1014PF3E OUTDOOR UNIT Single Split See page 11. Panasonic Corporation...

  • Page 2: Table Of Contents

    Safety Precautions Thank you for purchasing this Panasonic product. This product is a commercial air conditioner indoor unit. Installation Instructions attached. Contents The following symbols used in this manual, alert you to potentially dangerous conditions to users, service personnel or...
  • Page 3 WARNING If the refrigerant comes in contact Do not use modified with a flame, it produces toxic cord, joint cord, gases. extension cord or unspecified cord to prevent For safety, be sure to turn the overheating and fire. air conditioner off and also to disconnect the power before cleaning or servicing. The appliance shall be stored Pull off the power plug from in a room without continuously a receptacle, or switch off...
  • Page 4 WARNING CAUTION This appliance is intended to be used by The appliance shall be stored expert or trained users in shops, in light in a room without continuously industry and on farms, or for commercial operating open flames (for use by lay persons. example: an operating gas This appliance is not intended for use appliance) and ignition sources...

  • Page 5: Precautions For Use

    Precautions for Use Installation Disposal of Old Equipment Only for European Union and countries with This air conditioner must be installed properly by qualified recycling systems installation technicians in accordance with the Installation This symbol on the products, packaging, and/ Instructions provided with the unit. or accompanying documents means that used Before installation, check that the voltage of the electric electrical and electronic products must not be supply in your home or office is the same as the voltage...

  • Page 6: Names Of Parts

    Names of Parts INDOOR UNIT Type F3 (Middle Static Pressure Duct) At standard installation (Horizontal installation in the ceiling, rear side air intake) Air outlet duct * Suspension bolt * Label (attached to the lid of electrical component box) This air conditioner incorporates a biocidal product. Ionized air generated by a device incorporated in the air conditioner deactivates bacteria and Indoor unit...

  • Page 7: Maintenance

    Maintenance WARNING CAUTION For safety, be sure to turn the air conditioner off and Never use solvents or harsh chemicals. Also, do not disconnect the power before cleaning. (Otherwise, wipe plastic parts using very hot water. (This may cause electric shock or injury may result because the fan is deformation or change in colour.) rotating at high speed.) Some metal edges and fins are sharp. Be careful when...

  • Page 8: Nanoe™ X Function

    nanoe™ X Function Display during operation of nanoe™ X Example: Initial screen of remote controller CZ-RTC5B CZ-RTC6 series room A room A 20:30 (THU) 20:30 (THU) SET TEMP. SET TEMP. MODE MODE FAN SPEED FAN SPEED COOL COOL °C °C FLAP °C FLAP : Under operation of nanoe™...

  • Page 9: Troubleshooting

    Troubleshooting Check before consulting or requesting services. Symptom Cause / Action Sound like streaming water is heard • Sound of refrigerant liquid flowing inside unit during operation or after operation. • Sound of drainage water through drain pipe Noise Cracking noise is heard during operation • Sound due to temperature changes of parts or when operation stops.

  • Page 10: Before Requesting Services

    Troubleshooting Before Requesting Services Symptom Cause Action The air Power failure or after power failure Press the power ON/OFF button on the remote controller. conditioner does • If the breaker is turned off, turn the power on. not operate The operation (power) button is turned off. • If the breaker has been tripped, consult your dealer although the without turning it on.
  • Page 11 Connectable outdoor unit lineup Europe „ Refrigerant type : R32 Outdoor unit type 1-phase U-36PZH2E5 – U-50PZH2E5 U-60PZH2E5 PZH2 3-phase – – – – 1-phase – – – U-60PZ2E5 3-phase – – – – Outdoor unit type 1-phase U-71PZH2E5 U-100PZH2E5 U-125PZH2E5 U-140PZH2E5 PZH2...

  • Page 12: Specifications

    Specifications Indoor unit Middle Static Pressure Duct (Type F3) Model Name S-3650PF3E S-6071PF3E S-1014PF3E Power source (Europe) 220 - 230 - 240 V～ 50 Hz Power source (Oceania) 230 - 240 V～ 50 Hz 12.1 13.4 Cooling capacity 11,600 13,600...

  • Page 13: Outdoor Unit

    Outdoor unit Single Split Outdoor Unit (R32) Model Name U-36PZH2E5 U-50PZH2E5 U-60PZH2E5 Europe Power source 220 - 230 - 240 V～ 50 Hz Cooling capacity 12,300 17,100 20,500 BTU/h Heating capacity 13,600 19,100 23,900 BTU/h Sound pressure level 43 / 44 45 / 48 46 / 49 dB(A)
  • Page 14 Specifications Outdoor unit Single Split Outdoor Unit (R32) Model Name U-60PZ2E5 U-71PZ2E5 U-100PZ2E5 U-125PZ2E5 U-140PZ2E5 Europe Power source 220 - 230 - 240 V～ 50 Hz 10.0 12.5 14.0 Cooling capacity 20,500 24,200 34,100 42,700 47,800 BTU/h 10.0 12.5 14.0 Heating capacity 20,500 24,200...
  • Page 15 Model Name U-36PZH3E5 U-50PZH3E5 U-60PZH3E5 Europe Power source 220 - 230 - 240 V～ 50 Hz Cooling capacity 12,300 17,100 20,500 BTU/h Heating capacity 13,600 19,100 23,900 BTU/h Sound pressure level 43 / 44 46 / 48 47 / 50 dB(A) (Cooling / Heating) Sound power level...
  • Page 16 Specifications Outdoor unit Single Split Outdoor Unit (R32) Model Name U-36PZ3E5 U-50PZ3E5 U-60PZ3E5A U-71PZ3E5A Europe Power source 220 - 230 - 240 V～ 50 Hz Cooling capacity 12,300 17,100 20,500 24,200 BTU/h Heating capacity 12,300 17,100 20,500 24,200 BTU/h Sound pressure level 46 / 47 46 / 46 47 / 48...
  • Page 17 Model Name U-71PZH2R5 U-100PZH2R5 U-125PZH2R5 U-140PZH2R5 Oceania Power source 230 - 240 V～ 50 Hz 10.0 12.5 14.0 Cooling capacity 24,200 34,100 42,700 47,800 BTU/h 11.2 14.0 16.0 Heating capacity 27,300 38,200 47,800 54,600 BTU/h Sound pressure level 48 / 50 52 / 52 53 / 53 54 / 54...
  • Page 18 Specifications Outdoor unit Single Split Outdoor Unit (R32) Model Name U-60PZ2R5 U-71PZ2R5 U-100PZ2R5 U-125PZ2R5 U-140PZ2R5 Oceania Power source 230 - 240 V～ 50 Hz 10.0 12.5 14.0 Cooling capacity 20,500 24,200 34,100 42,700 47,800 BTU/h 10.0 12.5 14.0 Heating capacity 20,500 24,200 34,100...
  • Page 19 Model Name U-71PZH3R5 U-100PZH3R5 U-125PZH3R5 U-140PZH3R5 Oceania Power source 230 - 240 V～ 50 Hz 10.0 12.5 14.0 Cooling capacity 24,200 34,100 42,700 47,800 BTU/h 11.2 14.0 16.0 Heating capacity 27,300 38,200 47,800 54,600 BTU/h Sound pressure level 48 / 50 52 / 52 53 / 53 54 / 54...
  • Page 20 Specifications Outdoor unit Single Split Outdoor Unit (R32) Model Name U-36PZ3R5 U-50PZ3R5 U-60PZ3R5 U-71PZ3R5 Oceania Power source 230 - 240 V～ 50 Hz Cooling capacity 12,300 17,100 20,500 24,200 BTU/h Heating capacity 12,300 17,100 20,500 24,200 BTU/h Sound pressure level 46 / 47 46 / 46 47 / 48...
  • Page 21 Contact in the UK Panasonic UK, a branch of Panasonic Marketing Europe GmbH, Maxis 2, Western Road, Bracknell, Berkshire, RG12 1RT Panasonic Corporation Authorised representative in EU http://www.panasonic.com Panasonic Testing Centre Panasonic Marketing Europe GmbH Winsbergring 15, 22525 Hamburg, Germany ©...
