2012-2619
2013-03-01

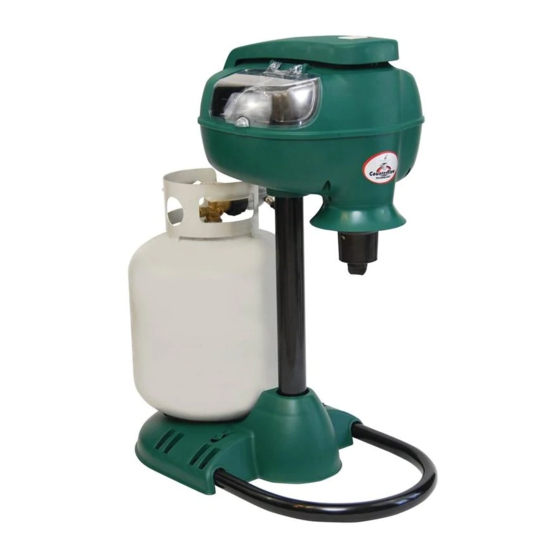

Mosquito Magnet® Patriot
Advanced Mosquito Control System
For Outdoor Use Only.
Attracts certain mosquitoes.
DOMESTIC
KEEP OUT OF REACH OF CHILDREN
READ THE LABEL BEFORE USING
REGISTRATION NO.29945 PEST CONTROL PRODUCTS ACT
CAUTION - SKIN IRRITATION
WARNING - EYE IRRITATION
DANGER POISON
Box Contents:
1- Power Head
1- Base Pole
1-Base
1-15 m (50 ft) Low Voltage Power Cord
1- Bug Bag (already installed)
10- Metal Cord Clips
1- Quick Clear Adapter
1- Owner's manual
1- Mosquito Magnet® Octenol Mosquito Attractant
GUARANTEE 1-Octen-3-ol.......................1.66 g /lure
REG. NO. 28440 PCPA
Net Contents: 4.9g (.173 oz.) per cartridge
See enclosed label for additional Precautions, First Aid, Directions for Use and Storage
and Disposal instructions.
Woodstream Canada Corporation
25 Bramtree Court, Unit 1
Brampton, Ontario
Canada L6S 6G2
Tel: (800) 800-1819
www.mosquitomagnet.com
Mosquito Magnet® Patriot
Page 1 of 23

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Patriot and is the answer not in the manual?

Questions and answers

Related Manuals for Mosquito Magnet Patriot

Summary of Contents for Mosquito Magnet Patriot

  • Page 1 1- Bug Bag (already installed) 10- Metal Cord Clips 1- Quick Clear Adapter 1- Owner’s manual 1- Mosquito Magnet® Octenol Mosquito Attractant GUARANTEE 1-Octen-3-ol.......1.66 g /lure REG. NO. 28440 PCPA Net Contents: 4.9g (.173 oz.) per cartridge See enclosed label for additional Precautions, First Aid, Directions for Use and Storage and Disposal instructions.
  • Page 2 DIRECTIONS FOR USE See Enclosed Operating Instructions for complete instruction for unpacking the device, set up and operation of the unit. Please carefully read these instructions. Mosquito Magnet® Patriot Page 2 of 23...
  • Page 3 MOSQUITO MAGNET® Patriot begins catching immediately. STORAGE AND DISPOSAL Mosquito Magnet® Octenol Mosquito Attractant Storage: Store in original container in a cool, dry area and out of reach of children until ready to use. osquito Magnet® Octenol Mosquito Attractant Disposal: DO NOT reuse the spent lures.
  • Page 4 OPTIONAL TEXT: • The Mosquito Magnet® Patriot captures and kills mosquitoes • Mosquito Magnet® Patriot 18 Years of Mosquito Research • Ideal for large yards. Place up to 15.24 metres (50 ft) away from the nearest power source. • Thank You for purchasing a Mosquito Magnet® Patriot.
  • Page 5 • The Mosquito Magnet® Patriot mimics a human by emitting carbon dioxide (CO ), the same natural compound humans exhale with each breath. This CO is combined with a short-range attractant to further enhance catch. • Trap begins catching immediately.
  • Page 6 21 days or sooner to maximize air flow. − Your propane tank will last 21 days. − Use your Mosquito Magnet® Quick Clear Cartridge to clear the gas nozzle after every tank change. Without this proprietary feature the nozzle might be prone to clog due to contaminants in the propane.
  • Page 7 Place your trap upwind 9-12 m (30-40 ft.), within 1.5-1.8 m (5-6 ft) of mosquito habitat (standing water, bushes, flowerbeds, treeline, marshbed, etc.). It is recommended that the trap be placed in the shade. Mosquito Magnet® Patriot Page 7 of 23...
  • Page 8 Leader in 360º Customer Support o Customer Care Hotline: 1-800-953-5737 o Online Assistance o Certified Service Locations Woodstream Canada Corporation 25 Bramtree Court, Unit 1 Brampton, Ontario Canada L6S 6G2 Tel: (800) 800-1819 www.mosquitomagnet.com Mosquito Magnet® Patriot Page 8 of 23...
  • Page 9 Backed by 18 years of research and independent testing, Mosquito Magnet® Patriot is scientifically proven to capture and kill mosquitoes. Mosquito Magnet Patriot is easy to use. In this manual, you’ll learn everything you need to know about how it works, optimal trap placement, maintenance, storage and warranty information.
  • Page 10 1. Do not store or use gasoline or other flammable vapours and liquids in the vicinity of this or any other appliance. 2. An LP cylinder not connected for use shall not be stored in the vicinity of this or any other appliance. Mosquito Magnet® Patriot Page 10 of 23...

  • Page 11: Table Of Contents

    Quick Clear Valve......................13 Troubleshooting.........................14 Warranty..........................15 Questions or Comments Please contact Woodstream Canada Corporation if you have any questions or experience any problems with your Mosquito Magnet® Patriot: 1-800-953-5737 Woodstream Canada Corporation 25 Bramtree Court, Unit 1 Brampton, Ontario Canada L6S 6G2 Tel: (800) 800-1819 www.mosquitomagnet.com...
  • Page 12 Attracted by the CO and short-range attractants, mosquitoes are drawn to the Mosquito Magnet Patriot. When they reach the trap, mosquitoes are vacuumed into a bug bag by our patented Counterflow Technology™, where they dehydrate and die within 24 hours.

  • Page 13: Safety Instructions

    • Installation and repair should be done by a qualified service person (find service centers on www.mosquitomagnet.com). The heater should be inspected before use and at least annually by a qualified service person. More frequent cleaning may be required as Mosquito Magnet® Patriot Page 13 of 23...
  • Page 14 LP-Gas cylinder. Replacement pressure regulators and hose assemblies must be specified by the manufacturer. • Avoid improper use of extension cords. Keep connections away from moisture and avoid damage to the cord. Mosquito Magnet® Patriot Page 14 of 23...

  • Page 15: Principal Parts

    Warning: SHOCK! An electric shock hazard may exist if water from a garden hose is directed at the Mosquito Magnet Patriot. Route the power cord in the safest possible manner to avoid personal injury. PRINCIPAL PARTS OF MOSQUITO MAGNET® PATRIOT [ILLUSTRATION OF UNIT AND COMPONENTS] Mosquito Magnet®...

  • Page 16: Set-Up

    1. After trap is placed in its ideal location, place propane tank onto the molded cradle. 2. Make sure propane tank is fully closed. Attach propane regulator hose to propane tank. Secure tightly by hand. Do not use tools. Mosquito Magnet® Patriot Page 16 of 23...

  • Page 17: Octenol Attractant Installation

    6. Turn rocker switch to “on” position. 7. The red light on the switch will flash for up to 20 minutes (warm up phase). 8. Once the light stops flashing and is solid, the Mosquito Magnet Patriot is fully operational.

  • Page 18: For Optimal Results

    Close the propane tank valve and disconnect regulator. Any open Mosquito Magnet® Octenol Mosquito Attractant should be removed and discarded. See attractant label for disposal instructions. The bug bag should also be discarded prior to storing the trap.

  • Page 19: Propane Tank Changing Tips

    • 21 Day Maintenance Cycle -Refill propane. (Propane lasts approximately 21 days with 24-hour/7-days operation.) -Replace short-range attractant cartridge. See Mosquito Magnet® Octenol Mosquito Attractant label for instructions -Empty or replace bug bag. -Utilize the Quick Clear adapter at every tank change.

  • Page 20: Quick Clear Valve

    9. Replace Easy Quick Clear Valve protective cap, and proceed with normal start up of your trap. If use of Easy Quick Clear valve feature does not resolve starting trouble, contact Customer Care 1-800-953-5737. Mosquito Magnet® Patriot Page 20 of 23...

  • Page 21: Troubleshooting

    The Mosquito Magnet 1. The tank regulator isn’t 1. Make sure the regulator Patriot won’t stay running fully engaged. is fully engaged, and propane tank valve is fully 2. Propane tank may be open.
  • Page 22 All of us at Woodstream Canada Corporation want you to get complete satisfaction from your trap. Should you have any problems you cannot resolve, simply call one of our trained Customer Service Representatives at 1-800-953-5737 or visit www.mosquitomagnet.com. We will help you get up and running. Mosquito Magnet® Patriot Page 22 of 23...

  • Page 23: Warranty

    Woodstream Canada Corporation shall not be liable for any consequential or incidental damages whatsoever. This warranty gives you specific legal rights and you may also have other legal rights which may vary based on location. Mosquito Magnet® Patriot Page 23 of 23...
  • Page 24 ****************************** This label transcript service is offered by the Pest Management Regulatory Agency to provide efficient searching for label information. This service and this information do not replace the official hard-copy label. The PMRA does not provide any guarantee or assurance that the information obtained through this service is accurate, current or correct, and is therefore not liable for any loss resulting, directly or indirectly, from reliance upon this service.
