Textron STAMPEDE 900 Quick Start Manual

Plow Mount

PART # 105815
Hardware Kit: HK-173

Kit Components:

Item # Qty. Description

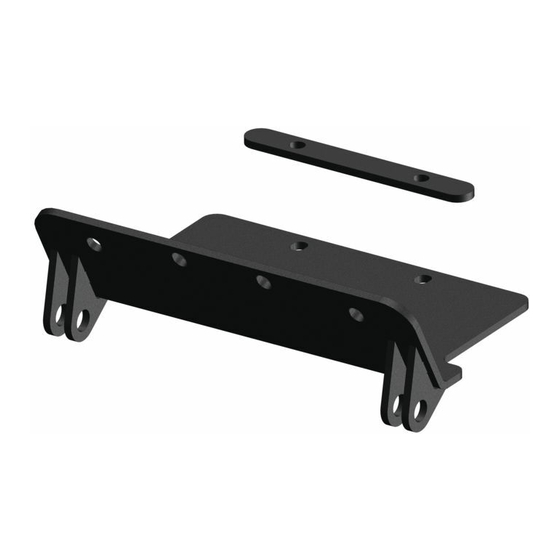

1 1
Plow Mount
2 1

Spacer Plate

3 4 M10-1.50 X 35mm Hex Flange Bolt
4 2 M10-1.50 X 60mm Hex Flange Bolt

INSTALLATION INSTRUCTIONS:

Note: Make sure all of the hardware needed to complete this
mount are in the package. Read through and understand the
instructions before installing.

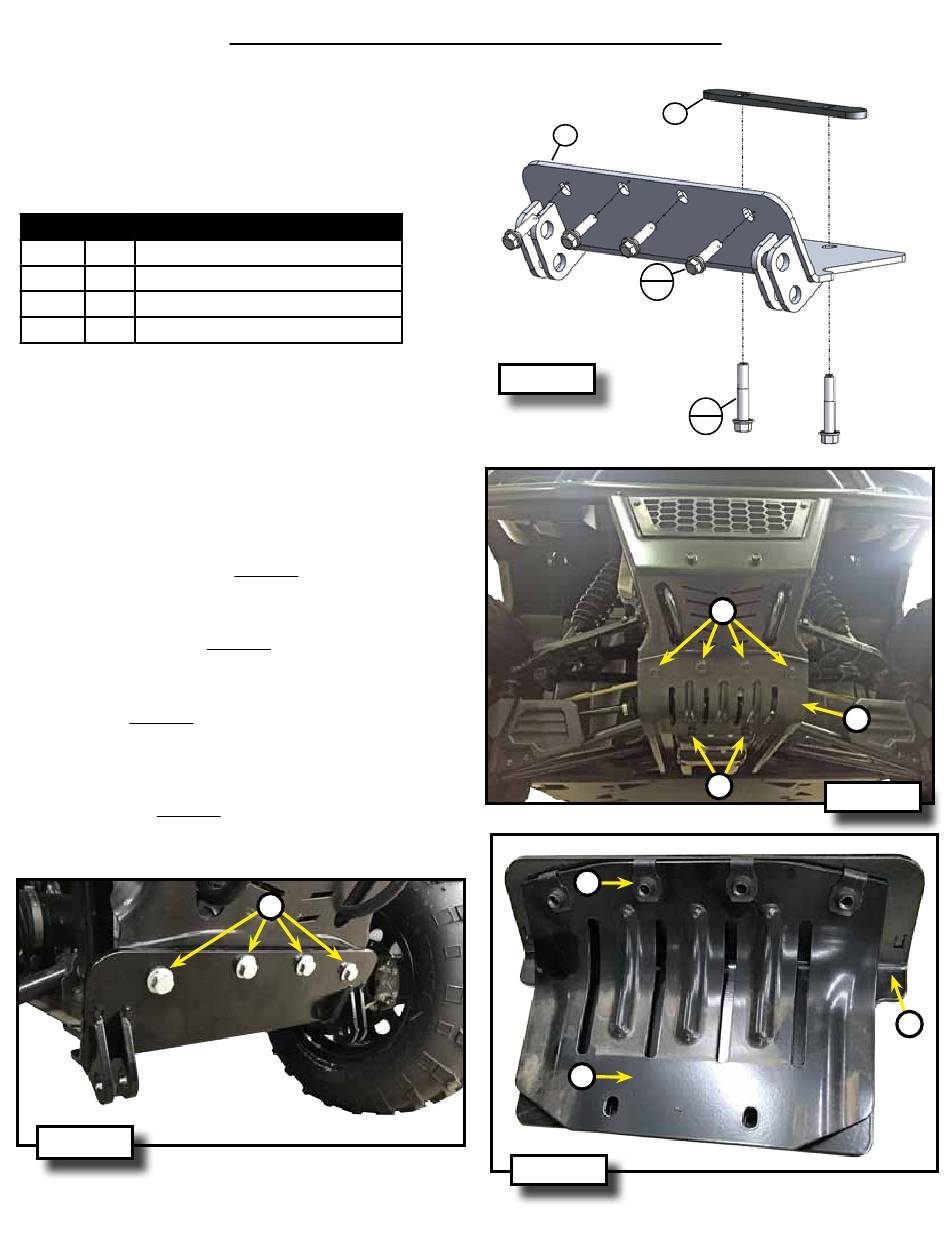

1. Remove the two bolts (A) and four bolts (B) from
the factory holes in the bottom of the front lower
bumper plate. Shown in Figure 2.
2. Line the clips (C) with the OEM holes on the skid
plate (D). Shown on Figure 3.
3. Set the skid plate (D) on the the plow mount (1)
Shown on Figure 3.
4. Place the mount assembly back up to the bumper
and re-attach it using the four included flange bolts
(3). Shown in Figure 4.
Figure 4
©2016 Copyright Kappers Fabricating, Inc. All rights reserved
TEXTRON STAMPEDE 900
PLOW MOUNT
3
2
1
3
4x
Figure 1
C
D
Figure 3
4
2x
B
D
A
Figure 2
1
