- Page 1 INSTRUCTION MANUAL RXM Reel Stand Read and understand all of the instructions and safety information in this manual before operating or servicing this tool. 52076396 REV 2 11/16 GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
-
Page 2: Table Of Contents

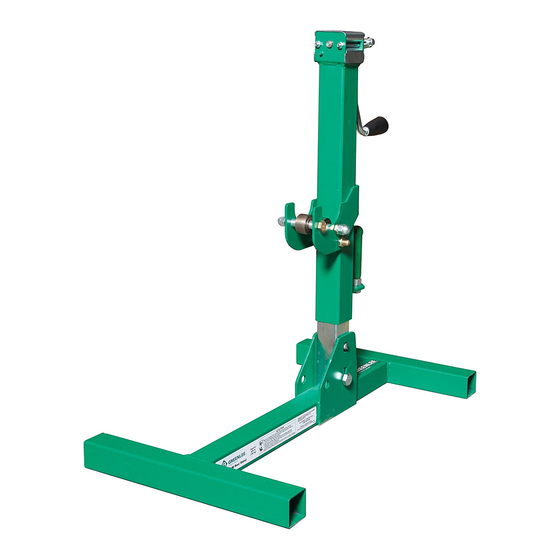

RXM Reel Stand Table of Contents Description Description ..............2 The Greenlee RXM Reel Stand is intended for the dispensing of cable from cable reels. Safety ................2 Purpose of this Manual ..........2 Safety Important Safety Information ........3 Identification .............. -
Page 3: Important Safety Information
Use other than that which is described in this manuals may result in injury or property damage. Note: Keep all decals clean and legible, and replace when necessary. Greenlee / A Textron Company GlobalTestSupply www. .com Find Quality Products Online at:... -
Page 4: Identification
647: For loads up to 6000 lb (2722 kg), 47" (1194 mm) max. reel width 684: For loads up to 5000 lb (2268 kg), 61" (1549 mm) max. reel width Greenlee / A Textron Company GlobalTestSupply www. .com Find Quality Products Online at:... -
Page 5: Operation
Note: For very wide reels that interfere with crank arm rotation, lifting is accomplished by turning the arm in a half circle, folding the arm down, and repeating this motion. Greenlee / A Textron Company GlobalTestSupply www. .com Find Quality Products Online at:... - Page 6 RXM Reel Stand Operation (cont’d) 6. Turn the reel stand crank arm clockwise to extend 7. Turn the other reel stand crank arm until the spindle one reel stand until the cable reel clears the ground. is level and the cable reel rotates freely. (Fig. 6) (Fig.
