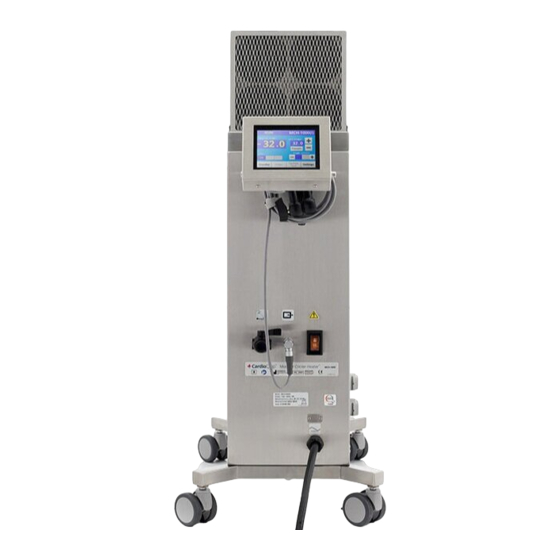

MCH-10ARH
Airflow Redirection Hood
Tools required:
PH2
PH2
1.1

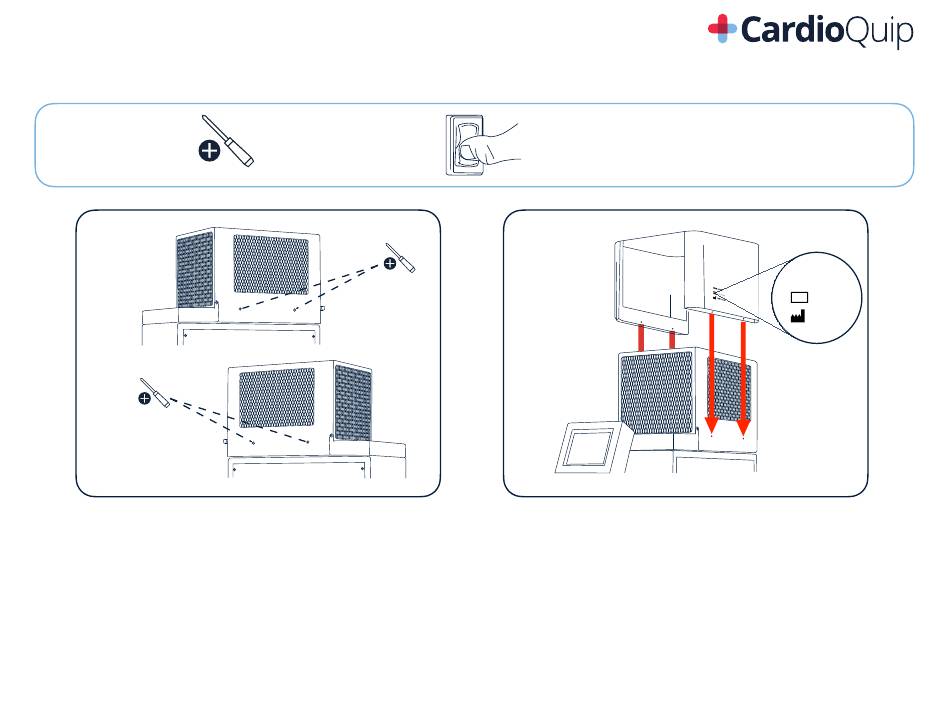

With the Refrigeration Module powered off, use a #2
Phillips screwdriver to remove the four (4) side panel
screws from the Refrigeration Module cover (two per
side).
Installation Guide
TM
PH2
Make sure the Refrigeration Module is unplugged and the
green power switch is in the OFF position before installing
the Airflow Redirection Hood.
2.1
Slide the Airflow Hood down into place on top of the
Refrigeration Module. The laser-etched model number/
serial number/manufacture date should be placed at the
front of the refrigeration module next to the hinged lid.
Position the Airflow Redirection Hood so that the holes
align with the Refrigeration Module threads.
TM
MCH-10ARH
15000000
SN
2021-10-31
LBL-47 Ver. 0
© 2021, CardioQuip, LLC
Advertisement
Table of Contents
Related Manuals for CardioQuip MCH-10ARH
Summary of Contents for CardioQuip MCH-10ARH
- Page 1 Position the Airflow Redirection Hood so that the holes align with the Refrigeration Module threads. LBL-47 Ver. 0 © 2021, CardioQuip, LLC...
- Page 2 Tighten the screws securely. When properly installed, the MCH-10ARH redirects exhaust air downward from MCH-10RMS Refrigeration Module. LBL-47 Ver. 0 for additional questions, contact CardioQuip Support at 888-267-6700 © 2021, CardioQuip, LLC...
