Fisher-Price SMART CYCLE Assembly Tip

Hide thumbs Also See for SMART CYCLE:

Please follow these instructions carefully to properly assemble the pedals to the Smart Cycle

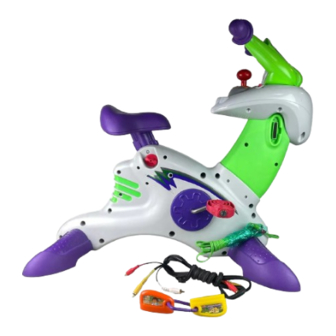

Your Smart Cycle includes a left and right pedal along with an assembly tool.

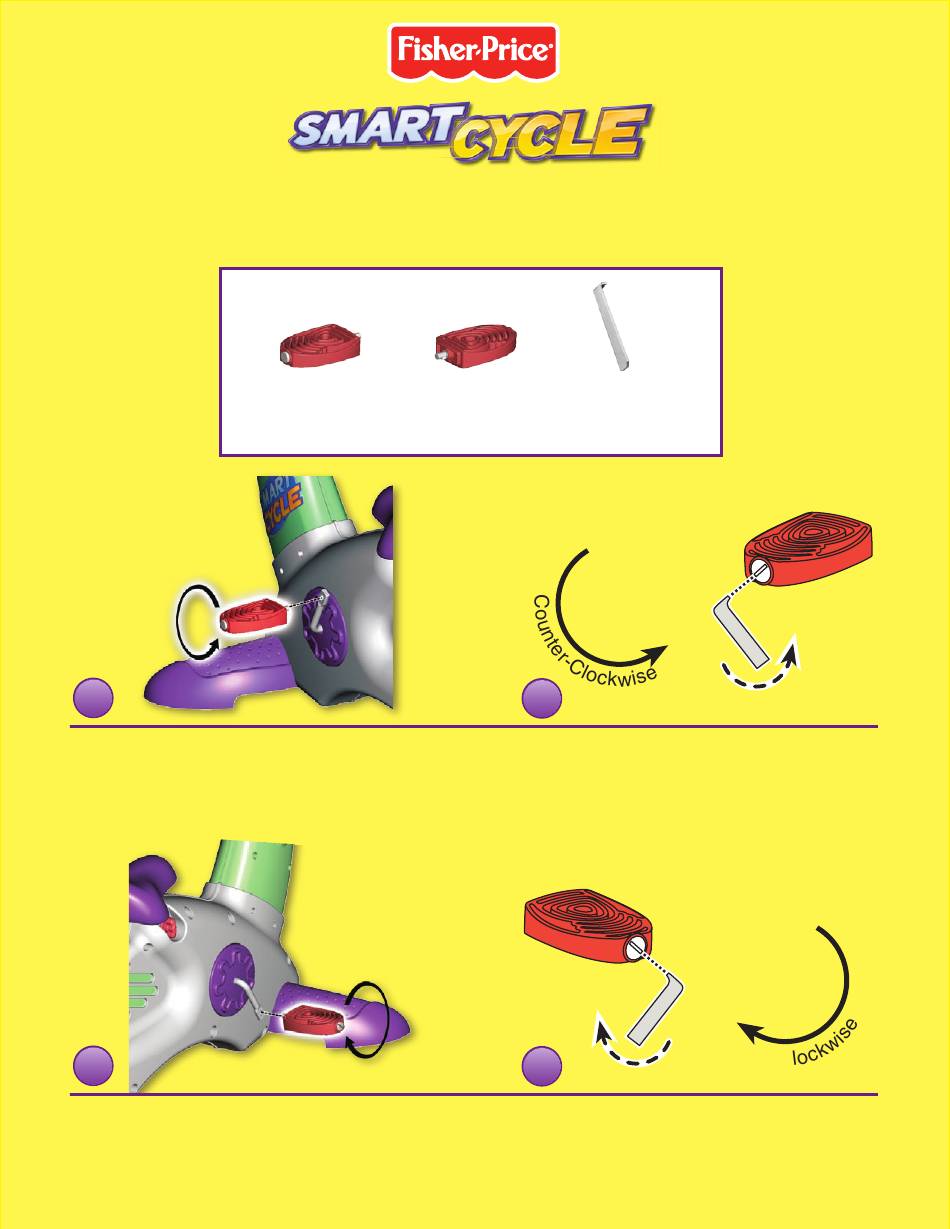

• Locate the left pedal marked with an L on the outside end.

• Fit the threaded end of the left pedal into the hole in the left

pedal axle marked with an L.

• Hand-tighten the pedal by turning it COUNTER-CLOCKWISE.

• Fit the threaded end of the right pedal (marked with an R)

into the hole in the right pedal axle (also marked with an R).

• Hand-tighten the pedal by turning it CLOCKWISE.

Assembly Tip

Left Pedal

Right Pedal

You must use the assembly tool to attach the pedals.

Assembly Tool

• Fit the end of the assembly tool to the groove in the end

of the pedal.

• Turn the assembly tool COUNTER-CLOCKWISE to fully

tighten the pedal.

• Fit the end of the assembly tool to the groove in the end

of the pedal.

• Turn the assembly tool CLOCKWISE to fully tighten

the pedal.

™

Table of Contents

Need help?

Do you have a question about the SMART CYCLE and is the answer not in the manual?

Page 1 Assembly Tip Please follow these instructions carefully to properly assemble the pedals to the Smart Cycle ™ Left Pedal Right Pedal Assembly Tool Your Smart Cycle includes a left and right pedal along with an assembly tool. You must use the assembly tool to attach the pedals. • Locate the left pedal marked with an L on the outside end. • Fit the end of the assembly tool to the groove in the end • Fit the threaded end of the left pedal into the hole in the left of the pedal. pedal axle marked with an L. • Turn the assembly tool COUNTER-CLOCKWISE to fully • Hand-tighten the pedal by turning it COUNTER-CLOCKWISE.
Page 2 Assembly Tip Please follow these instructions carefully to properly assemble the handlebar to the Smart Cycle ™ Handlebar Connector Socket Post • Plug the handlebar connector into the socket in • Place the handlebar, at an angle, onto the top of the post. the console. • Push to insert the tab on the back of the handlebar into Hint: The connector will only fit one way into the socket. the slot in the console. If it does not seem to fit, turn it around and try again! TOP VIEW • Next, push the handlebar forward and down to "snap" it...
