Fisher-Price SMART CYCLE Assembly Tip

Hide thumbs Also See for SMART CYCLE:

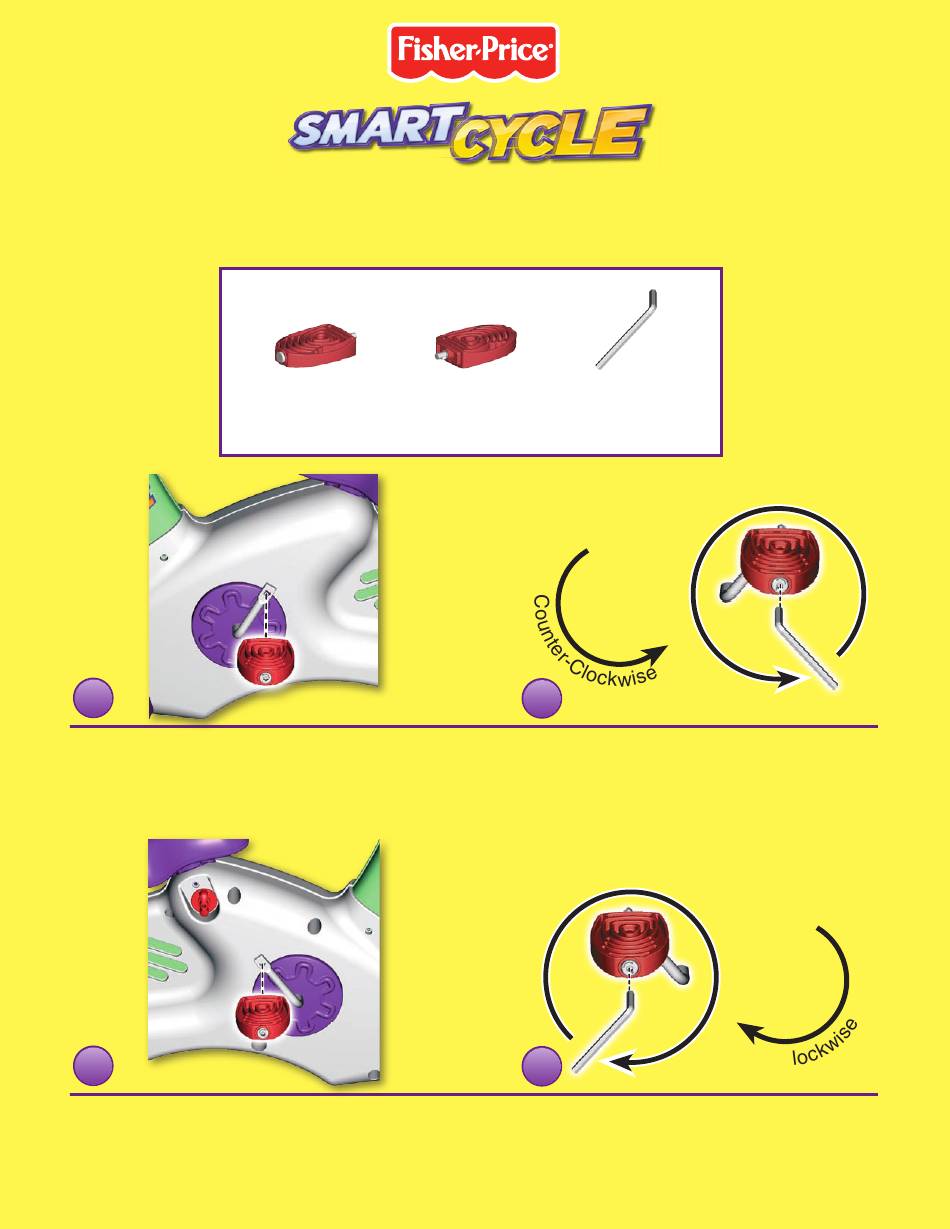

Please follow these instructions carefully to properly assemble the pedals to the Smart Cycle

Your Smart Cycle includes a left and right pedal along with an assembly tool.

• Locate the left pedal marked with an L on the outside end.

• Now, find the left pedal axle marked with an L.

• Fit the threaded end of the left pedal into the hole in the left pedal axle.

• Hand-tighten the left pedal by turning it counter-clockwise.

• Fit the threaded end of the right pedal (marked with an R)

into the hole in the right pedal axle (also marked with an R).

• Hand-tighten the right pedal by turning it clockwise.

Assembly Tip

Left Pedal

Right Pedal

You must use the assembly tool to attach the pedals.

Assembly Tool

• Fit the assembly tool to the end of the left pedal. Turn it

counter-clockwise to fully tighten.

Hint: You will not be able to tighten the pedal if you have tried

to attach the right pedal to the left pedal axle. Remove the pedal

and be sure you are attaching the left pedal to the left pedal axle.

Be sure to match the letter L on each part.

• Fit the assembly tool to the end of the right pedal. Turn it

clockwise to fully tighten.

™

Table of Contents

Need help?

Do you have a question about the SMART CYCLE and is the answer not in the manual?

Page 1: Assembly Tip
Assembly Tip Please follow these instructions carefully to properly assemble the pedals to the Smart Cycle ™ Left Pedal Right Pedal Assembly Tool Your Smart Cycle includes a left and right pedal along with an assembly tool. You must use the assembly tool to attach the pedals. • Locate the left pedal marked with an L on the outside end. • Fit the assembly tool to the end of the left pedal. Turn it counter-clockwise to fully tighten. • Now, find the left pedal axle marked with an L.
Page 2 Assembly Tip Please follow these instructions carefully to properly assemble the handlebar to the Smart Cycle ™ IMPORTANT! For proper function, you must connect the connector on the handlebar into the socket in the console! Handlebar Connector Socket Post • Plug the handlebar connector into the socket in the console. • Place the handlebar, at an angle, onto the top of the post. Hint: The connector will only fit one way into the socket. If it does • Push to insert the tab on the back of the handlebar into the...
