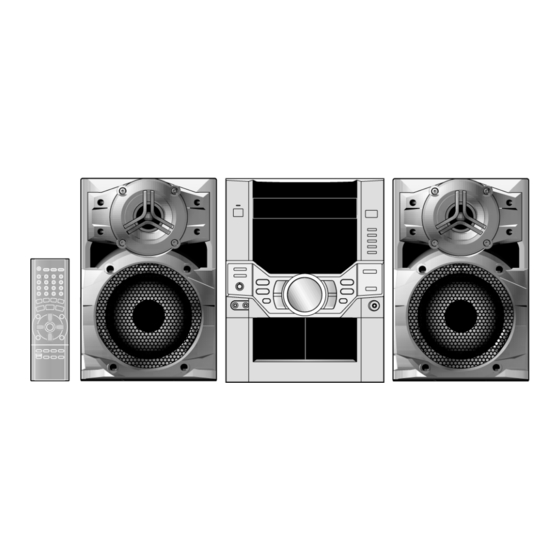

Panasonic SA-VK31GC Service Manual

Hide thumbs Also See for SA-VK31GC:
Table of Contents

Advertisement

Quick Links

Specifications
n AMPLIFIER SECTION
PMPO
RMS power output
THD 10% both channels driven
1 kHz (Low channel)
10kHz (High channel)
Total Bi-Amp power
AUX
Input sensitivity
Input Impedance
Phone jack
Terminal
MIC jack
Sensitivity
Terminal
n FM TUNER SECTION
Frequency range
Sensitivity
S/N 26 dB
Antenna terminal(s)
n AM TUNER SECTION
Frequency range
Sensitivity
All manuals and user guides at all-guides.com
2500 W
75 W per channel (6 Ω)
75 W per channel (6 Ω)
150 W per channel
250 mV
13.3 kΩ
Stereo, 3.5 mm jack
0.7 mV, 680 Ω
Mono, 3.5 mm jack (2 system)
87.50 - 108.00 MHz (50 kHz steps)
2.5µV (IHF)
2.2 µV
75 Ω (unbalanced)
522 - 1629 kHz (9 kHz steps)
520 - 1630 kHz (10 kHz steps)
CD Stereo System
SA-VK31GC
SA-VK31GS
Colour
(S)... Silver Type
S/N 20 dB (at 999 kHz)
n CASSETTE DECK SECTION
Track system
Heads
Record/playback
Erasure
Motor
Recording system
Erasing system
Tape speed
Overall frequency response (+3 dB, -6 dB at DECK OUT)
NORMAL (TYPE I)
S/N
Wow and flutter
Fast forward and rewind time
n CD SECTION
Discs played [8 cm or 12 cm]
(1) CD- Audio (CD-DA)
(2) Video CD
(3) CD-R/RW (CD-DA, MP3 disc)
(4) MP3
Sampling frequency
Decoding
© 2004 Panasonic AVC Networks Singapore Pte.
Ltd. (RCB registration number: 197701580H) All
rights
reserved.
distribution is a violation of law.
ORDER NO. MD0405174C3
560 µV/m
4 track, 2 channel
Solid permalloy head
Double gap ferrite head
DC servo motor
AC bias 100 kHz
AC erase 100 kHz
4.8 cm/s
35 Hz - 14 kHz
50 dB (A weighted)
0.18 % (WRMS)
Approx. 120 seconds with
C-60 cassette tape
44.1 kHz
16 bit linear
Unauthorized
copying
and
